1. Kinds PVC board made on our PVC foam board production line
Advertisement; Signage; POP; Cupboard (kitchen); Furniture board like table, desk, under the sun table.
Marine (seating, covers, shelving, cabinets, stairs, electronics & wall panels, door etc. ); Water park; Seashore wet-proof facility; Various inter layers; Decoration board, upholstery for train, car and many more.
The final products can use under the sun, beside the water, in the raining, can installed in the soil directly. It has the advantages of plastic and wood.
2. Working flow of PVC foam board production line
Raw material Autoloade for mixer PVC mixer Sping loader Conical twin screw extruder Board Mould Die Lip temprature control sysem PVC board forming machine Air cooling bracket Board hauling off unit Board Cutting unit Dust vacuuming unit Board stacker Electri control box
Independent control box, button control way ( analog control ), with ABB inverter adjusting the speed of the motor, RKC or Omron temperature control.
Pot body adopt 65mm SUS 304 Stainless steel which has very good smoothand rigid surface with feature of wearable, anti-corrosion, heat-resisting, no-stick with raw materill
Mixer cover adopt superior cating aluminium with polished surface
NSK Brand shaft and bear, pneumatic control adopted.
Loader and extruder for PVC foam board production line
SJSZ 80/156 for model BDX-1220, SJSZ 92/188 for BDX-1830;
Control box with PLC or AC control, ABB, Dafoss, Siemens, Schneider, RKC Omron etc.
Stainless steel or superior alloy steel for body, gear box of GuoMao brand, conical double screw with best processing craftmanship to get higher output and stability and better plasticizing effection.
T-die head of PVC foam board production line
Clothes-rack channel design, adjustable upper die lip; Mould heated by heating ba, lio of mould heated by conducting oil.
Material 5CrNiMo adopted for the PVC foam board extrusion mould.
A temperature controller is necessary for controling the mould temperature
Model
|
BDX-1220
|
BDX1830
|
No
|
Parts
|
Parameter
|
Parmeter
|
1
|
Mixer Loader
|
1.5kw
|
3
|
2
|
Mixer
|
SRL300/600
|
SRL500/1000
|
3
|
Spring Loader
|
Spring type
|
3KW
|
4
|
Extruder
|
SJSZ80/156
|
SJSZ92/188
|
5
|
Mould
|
1220MM
|
1830MM
|
6
|
Tem-controler
|
50-160°c
|
50-160°c
|
7
|

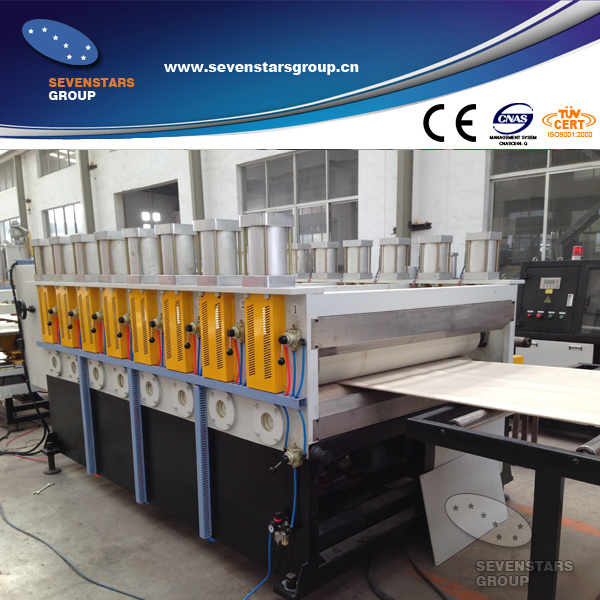

Board forming machine
|
Plate : 4* 1500mm
|
Plate: 5 * 2000mm
|
8
|
Air cooling bracket
|
10m
|
10mm
|
9
|
Hauling off unit
|
1500mm width
|
2000mm width
|
10
|
Cutting unit
|
3KW
|
5.5kw
|
11
|
Dust vacuuming unit
|
5.5KW
|
5.5kw
|
12
|
Stacker
|
5 Rollers
|
7rollers
|
13
|
Control Box
|
ABB Siemens,RKC,Schneider,NSK ETC
|
