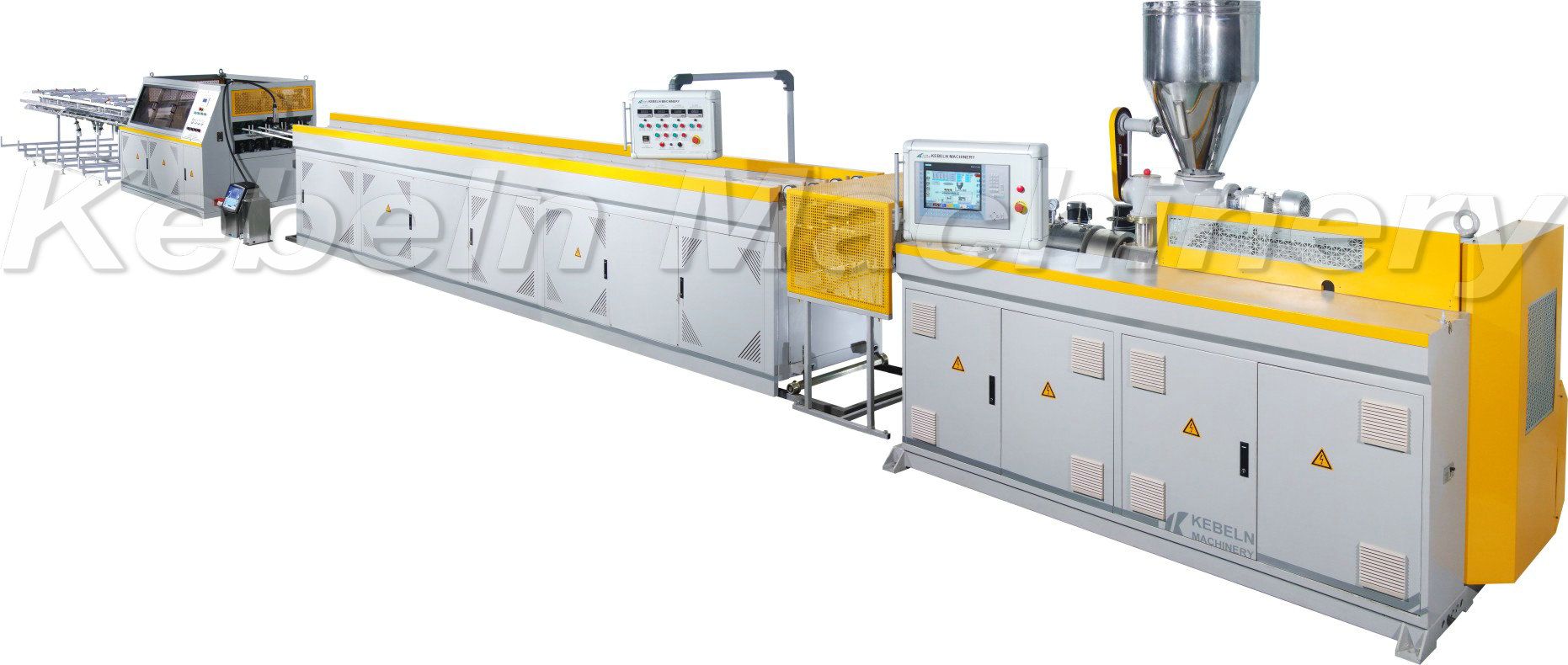

PVC (Φ 16 - Φ 32mm) four pipes extrusion production line include a KBL65/132 conical twin-screw extruder, a four-outlet vacuum forming table, a four outlet haul off machine, a four outlet cutter, a four outlet stacker, and 1 set of mould. The product material is PVC, best production pipe range is16mm-32mm. Comparing with the capacity of common PVC two pipes extrusion line, PVC four pipes extrusion line have more than 70% capacity higher. Comparing with the common extrusion line, this PVC four pipes extrusion line has much less investment at equipment cost, factory investment and production investment. There is no dust polluction from this extrusion line, as the cutter is equipped with saw cutting and automatical cylinder.
| screw diameter(mm) | 65/132 | motor power(kw) | 37 | center height of screw(mm) | 1000 |
| screw direction | opposite outward rotation | installtion power(kw) | 65 | weight(kg) | 4000 |
| speed of screw rotation(r/min) | 1-36 | Max. capacity(kg/h) | 300 | dimension(mm) | 4235× 1520× 2450 |
| length of screw(mm) | 1430 | quantity of barrel heating(pcs) | 4 | | |
| structure of screw | conical mesh | heating | Die-casting aluminum | | |
We are one of leading extruder plastic machinery manufacturers in South China. We are supplying PVC pipe extruder production line, PE, PPR pipe extruder production line, PEX-A pipe RAM-extrusion line, PEX-B extrusion line, PVC door and window's profile extrusion line, PET bottle piece recovered prilling production line, Parallel double-screw extruder, Single screw extruder, Conical twin screw extruder, Shredder, Crusher, Mixer unit machine and Milling machine for plastic pipe material, special-shaped plastic material, decoration plate, sheet, grains and so on.
We welcome your business negotiation!
