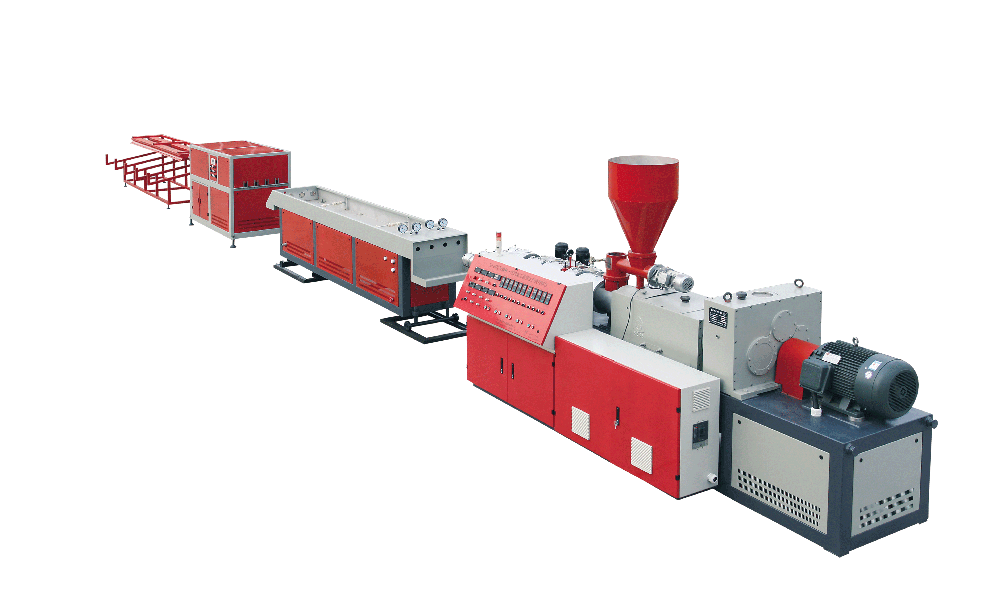

This PVC one mould four pipe extrusion machine overcome the problem of low capacity for small pipes. It includes: Extruder, one for four mould, vacuum cool tank, traction&cutting combination and stacker. We have apply for many state patents.
Capacity: 6-9ton/day
Pipe diameter between 16-32mm
Power consumption: 80kw/h
No sawdust
Main technical parameter
Device Dimensions (L * W * H)
No. 1) extruder(L * W * H)
4500 * 1300 * 1500mm(excluding hopper)
SJZ-65 cone double screw plastic extruding machine is especially designed for PVC power moulding, equipped with our self-developed "1for4"mould, capable of producing 4 PVC electrical bushings or service pipes simultaneously or equipped with "1for 4"profile mould, capaple of producing PVC electrical groove and so on.
No. 2) mould
Knockdown flow channel design makes "1for4"or more possible and is compatible and interchangeable. Inside mould pressure is designed to be adjusted according to different specifcations and requirements of products. The die design is applicable for production of Φ 16.20.25mm)pipes.
No. 3) Vacuum Tank
4750 * 900 * 1000mm(L * W * H)
The vacuum degree is can be adjusted to produce different pipe as demand.
No. 4) hauling-cutting chip-free combination
2300 * 1120 * 1500mm(L * W * H)
Traction cutting machine is a novel and innovative high-performance product of the company. The integrated design of production lines features higher centrality degree, more integration, compacter structure and smoother operation, the imported wear-resistant belt ensures longer service life of the tractor, and the use of the encoder enables more accuracy of the adjustable lengeh cutting. Self-developed chip-free cutting machine(our patent)guarantees smooth cross-section products without burrs and completely solves the pollution caused by plastic debris; The control System is equipped with Siemens PLC computer control and Siemens LCD screen with adjustable operating parameters that can be displayed on all monitors, such as cutting time and product length, etc.
No. 5) automatic pipe stacker
4200 * 1300 * 1000mm(L * W * H)
