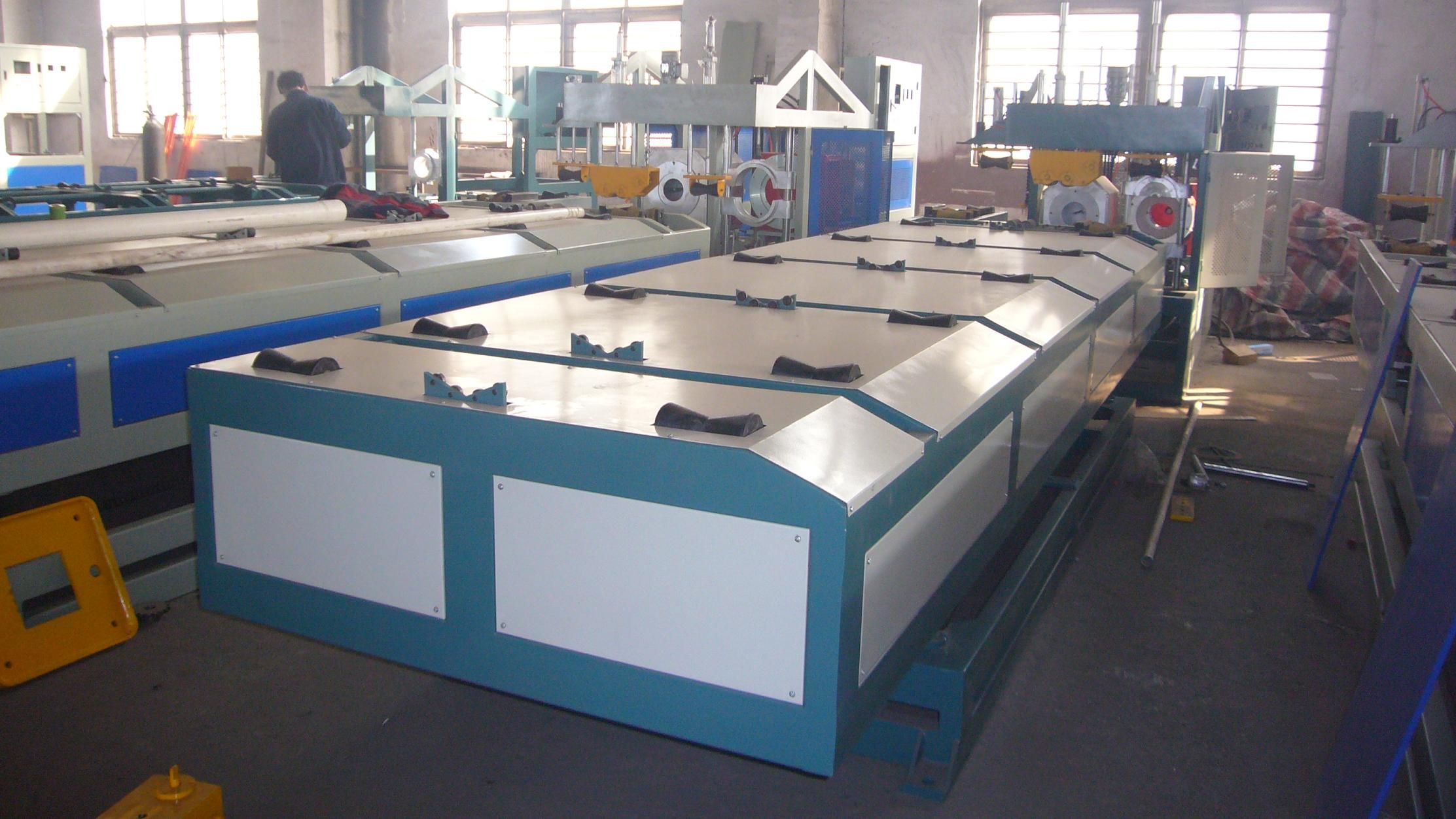

SGK250 Double-oven PVC Pipe Auto Socketing Machine/belling machine:
It is specially used for belling of PVC pipes with ODΦ 110-250mm.
The pipe belling type: Straight type and R type. After shaping, both vacuum calibration technology inside the mould and force air/water cooling outside of pipe are adopted to ensure precise belling size. The machine can be used on complete extrusion line with PLC control.
If any need, please contact me to my email or cell phone.
|
Main technical parameters |
pipe expand range
out diameter |
Φ 110-250mm |
|
|
Belling type |
U type, R type and square type |
|
|
Oil label |
No. 46/hydraulic oil |
|
|
Quantity of heater |
2 |
|
|
Heating power |
11kw |
|
|
highest temperature in heater |
280 centigrade |
|
|
Air pressure |
0.4~0.6Mpa |
|
|
Cooling water pressure |
0.2~0.3Mpa |
|
|
Total power/Capacity |
28kw |
|
|
Pipe length |
3-6m |
|
|
Center height |
1000mm± 50mm |
|
|
Machine set weight |
3.6T |
|
|
Dimension of machine |
7400x1800x1850mm |
|
Zhangjiagang Yusheng Machinery Co., Ltd. had been established in 2006, which is the specialized enterprise for producing plastic machinery. The company is located in beautiful scenery, international health city - Zhangiagang, near to Shanghai, Suzhou, Nanjing, and the transportation is convenient. The company has the first-class technology, which gathers the scientific research, development, production, sale, service, extroverted management.
The company mainly has the plastic pipe belling machine, the belling mold, the corrugated pipe production line, big caliber PVC drains, foul drainage production line, the PE big caliber coal gas, supply and drain pipe production line, the plate production line, palletizing production line, the plum blossom pipe production line, the PP-R pipe production line, plastic extruding machine, the high-speed mixer, the mixer unit as well as various auxiliary equipments.
