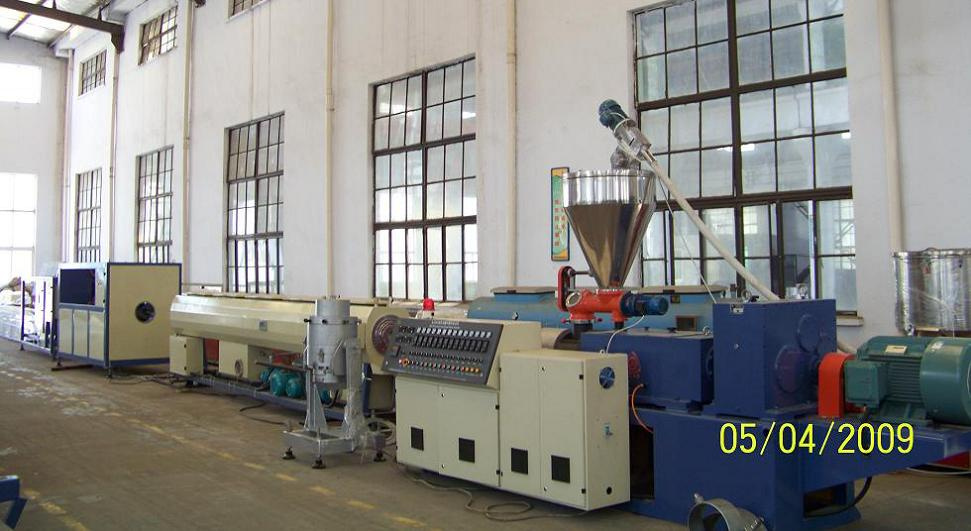

Machine: PVC pipe extruder machine/extrusion machine
Configuration:
1. Spring loader
2. Conical double-screw extruder
3. Mould
4. Vacuum calibration tank
5. Haul off
6. Cutter
7. Stacker
Details:
GF series plastic pipe material production line is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc.
If any need, please contact me to my email or cell phone.
Thanks
Ms. Candy
Item |
GF63 |
GF110 |
GF160 |
GF250 |
GF400 |
GF630 |
GF800 |
Diameter of pipe material (mm) |
Diameter
16-63 |
Diameter
16-110 |
Diameter
32-160 |
Diameter
63-250 |
Diameter
160-400 |
Diameter
315-630 |
Diameter
450-800 |
Claw number of drawing machine |
2 |
2 |
2 |
3 |
4 |
6 |
8 |
Pulling force(KN) |
6 |
8 |
11 |
20 |
30 |
40 |
50 |
Drawing speed
(m/s) |
15 |
12 |
8 |
9 |
4 |
2 |
2 |
Tatal power of auxiliary machine(kw) |
14 |
14 |
14 |
21.5 |
41 |
56 |
64 |
Zhangjiagang Yusheng Machinery Co., Ltd. had been established in 2006, which is the specialized enterprise for producing plastic machinery. The company is located in beautiful scenery, international health city - Zhangiagang, near to Shanghai, Suzhou, Nanjing, and the transportation is convenient. The company has the first-class technology, which gathers the scientific research, development, production, sale, service, extroverted management.
The company mainly has the plastic pipe belling machine, the belling mold, the corrugated pipe production line, big caliber PVC drains, foul drainage production line, the PE big caliber coal gas, supply and drain pipe production line, the plate production line, palletizing production line, the plum blossom pipe production line, the PP-R pipe production line, plastic extruding machine, the high-speed mixer, the mixer unit as well as various auxiliary equipments.
