Features:
1) It is mainly used in the manufacture of PVC pipes with various diameters and wall thickness in the aspects such as the agricultural and constructional plumbing, cable laying etc.

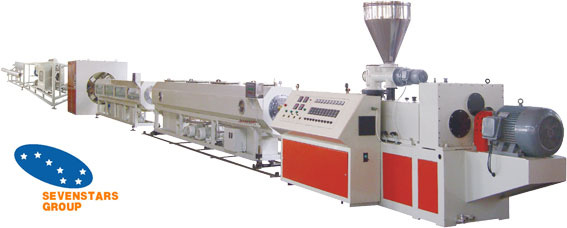

2) The set is composed of conical twin-screw extruder, vacuum cablibrating tank, haull-off, cutter, stacker or belling machine etc.
3) The extruder and haul-off machine adopt the imported AC frequency control device.
The vacuum pump and hauling motor employ superior goods.
4) Haul-off machine of different specifications, such as two caterpillars, three caterpillars, four caterpillars, six caterpillars etc are designed for different requirements.
5) It is additionally attched with length measuring apparatus and thickness increasing device.
6) The unit is of reliable performance and high production efficiency.
The pipe diameter is mainly from Φ 16mm-Φ 630mm. We also can design the machine according to your requirement
| Pipe Range | 16-63mm (single) | 16-63mm(double) | 75-160mm | 110-315mm | 315-630mm |
| Extruder type | SJZ51/105 | SJZ65/132 | SJZ65/132 | SJZ80/156 | SJZ92/188 |
| Motor power | 18.5KW | 37KW | 37KW | 55KW | 110KW |
| Capacity | 120kg/hour | 250kg/hour | 250kg/hour | 360kg/hour | 800kg/hour |
| Lineal speed | 12m/min | 10m/min | 6m/min | 3m/min | 1.2m/min |
| Production time | 45Days | 45Days | 45Days | 45Days | 45Days |
| Guarantee period | 1Year | 1Year | 1Year | 1Year | 1Year |
| Shipment time | About 2months | About 2 months | About 2months | About 2months | About 2 months |
Zhangjiagang Xinda Machinery Manufacturing Co., Ltd., is located in Jinfeng Town Private-Run Economy Development Zone, Zhangjiagang City. It is one of the manufacturing enterprises of plastic machinery fixed by the Ministry of Light Industry. The company mainly researches and produces plastic machinery. It pays attention of technology improvement, actively introduces advanced domestic and foreign technology, continuously develop new products. Its main products are parallel double-screw-stem extruder, cone double-screw-stem extruder, series single-screw-stem extruder, sets of extruding production lines for aluminium-plastic compound pipe material, plastic pipe material, special-shaped plastic material, decoration plate, sheet, grains and others and various kind of auxiliary machines. The products are sold well in twenty-nine provinces, cites and autonomous regions all over the country. They are also exported over ten countries and regions, such as Southeastern Asia and others.
The company creates good prestige, seeks excellent quality, provides complete service with sincere manner to meet continuously your demands and wishes.
Your success is the target which all of the workers and staff of Xinda seek.
