PVC Profile Extrusion Line (YF series)
| Price: |
US $ 28000set |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |

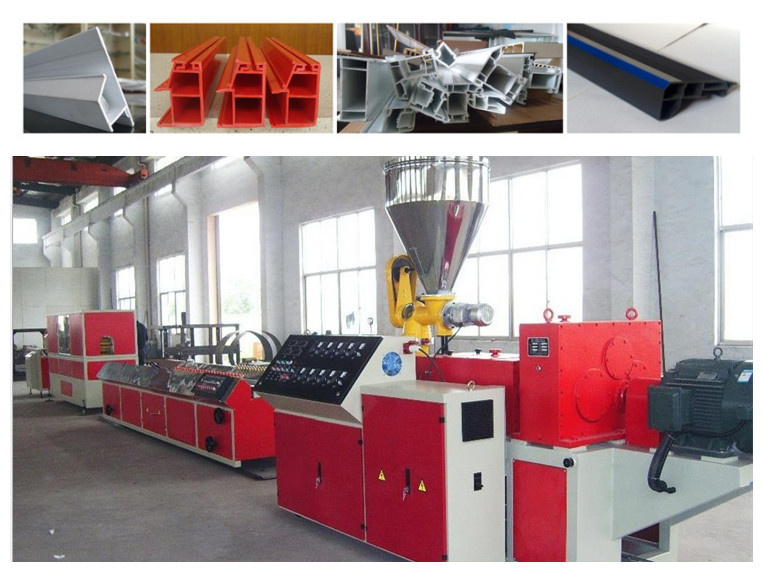

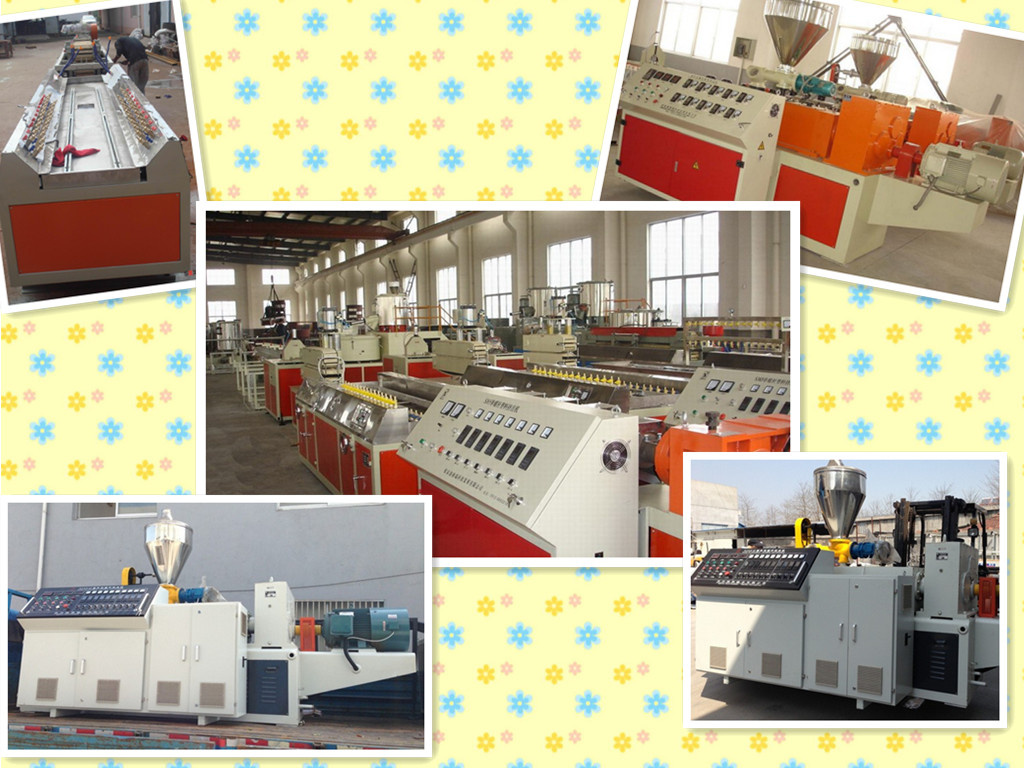

PVC Profile Extrusion Line

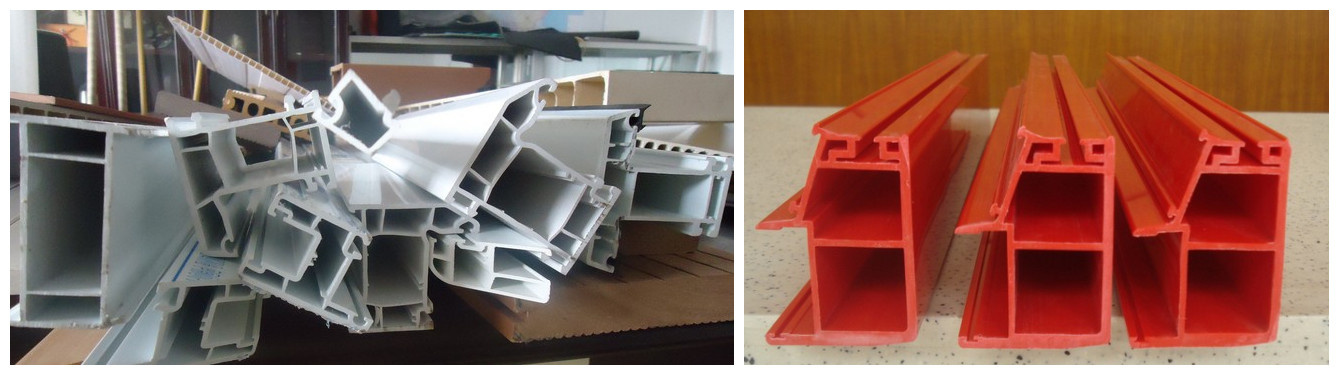

Application and Features:YF series PVC profile extrusion line is mainly used in pvc window profile,pvc door, wide door plate,window plate, extrusion of multi-holes pipe for passing through lines(four holes, six holes, seven holes, nine holes, etc) According to different profile, sectinal surface and moulds, twin parallel(conical) screws extruder of different specifications can be chosen together with corresponding vacuum calibrating table, haul-off unit, cutting unit, stacker, etc.
Products:
Machine
| Model | YF180 | YF240 | YF300 | YF400 |
| Max.width of profile(mm) | 180 | 240 | 300 | 400 |
| Haul-off height(mm) | 140 | 140 | 140 | 140 |
| Haul-off force(KN) | 15 | 30 | 30 | 30 |
| Haul off speed(m/min) | 0.5-5 | 0.5-5 | 0.5-5 | 0.5-5 |
| Auxiliary equipment total power(kw) | 18.7 | 31.6 | 31.6 | 31.6 |
| compression air(Mpa) | 0.6 | 0.6 | 0.6 | 0.6 |
| Prod Model: |
mengkwa-YF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Use: |
Door.Window Profile |
| Plastic Meterial: |
Pvcpp/PE |
| Profile: |
Plastic Door/Window Profile, Wood-Plastic Door/Win |
| Product Type: |
PVC Profile |
| Automation: |
Automatic |
| Computerized: |
Computerized |
Ningbo Mengkwa Machinery Co., Ltd. is located in Ningbo city, Zhejiang Province in China. It is only 10km from Ningbo Airport, and it is around 300km far from Shanghai.
We have more than 16 years experience in producing and export plastic machinery. With advanced technology and exprience, we produce plastic extrusion line: Pipe extrusion line, profile extrusion line, sheet & board extrusion line, foam extrusion line, soft PVC extrusion line, plastic pelletizing and recycle line, rubber extruder and vulcanization production line, and etc.
We will always strive to keep forging ahead and making innovations. Meanwhile, we're willing to establish good relationships with both domestic and international customers to create new heights in the plastic machinery industry.
Our aim: Honesty, serious, excellence, devoting.
