TOOLING SYSTEM
Window Profile
In together with the headquarters extrunet can SPG offer you absolutely first quality extrusion tools for your specific requirements. The production of extrusion components based on optimal drawings is performed with impressive manufacturing skill, so that they can be used as soon as possible in the production.
All of our tooling systems guarantee the stability of profiles extrusion and process. Combined with minimum energy and water consumption, and low material wear, belongs to our highest standard of tooling. All the tooling are combinable with post-co-extrusion (PCE) and with a variety of innovative features.
The feature of window profile
Productivity due to short tooling times and high process stability
Reliability due to perfectly coordinated system Extruder-downstream-tooling
Efficiency due to precise and optimized versions of the tooling
Efficiency due to energy and water saving
Added value due to extended life time
Technical Profile

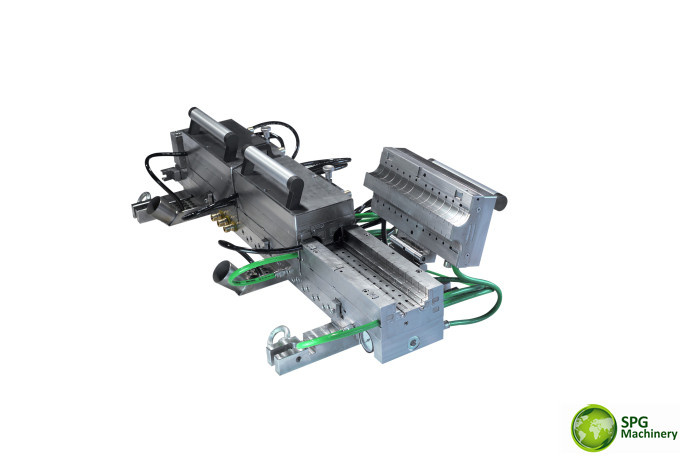

The EXFLEX tooling systems have an impressively modular and compact design with easy handling and short tuning time, and perfect for technical profiles and WPC extrusion.
Ease of handing reduces downtimes and enables high efficiency in extrusion operation. The EXFLEX tools are designed in a variety of extrusion speeds and profile geometries.
Critical success factors relate to productivity, profile quality and scrap reduction.
EXFLEX tooling systems have an impressive range of unique features in technical and WPC profile extrusion.
The feature of technical profile
Reduction of start-up times to the central exflex adapter connection between die and extruder
Quick, easy installation/removal due to quick-change-design of the exflex die
Reasonably priced exflex-calibrator design with steady, constant profile geometry
High, even cooling capacity in the flexible exflex water/vacuum tanks made of stainless steel and polycarbonate
TECHNICAL DATA OF TEP DOWNSTREAM |
Name |
Unit |
TEP-CT-300 |
TEP-CT-450 |
TEP-CT-600 |
Vacuum pump
|
pc |
1 |
1 |
1 |
Vacuum pump power
|
kW |
4.3 |
4.3 |
4.3 |
Water tube width
|
mm |
500 |
500 |
500 |
1/2"
Vacuum connector(ABA)
|
pc |
16*1/2"
|
16*1/2"
|
16*1/2"
|
1/2"
Water connector(ABA)
|
pc |
1000-1100 |
1000-1100 |
1000-1100 |
Extrusion height
|
mm |
±300 |
±300 |
±300 |
Length adjust.
|
mm |
±30 |
±30 |
±30 |
Height adjust.
|
mm |
±30 |
±30 |
±30 |
Side adjust.
|
mm |
380 |
380 |
380 |
Operating voltage
|
V |
24 |
24 |
24 |
Control voltage
|
V |
24 |
24 |
24 |
Frequency
|
Hz |
50 |
50 |
50 |
CT:L*W*H
|
mm |
3000*950*1710 |
4500*950*1710 |
6000*950*1710 |
Max. Haul-off force
|
kN |
4 |
4 |
4 |
Haul-off speed
|
m/min |
1-20"
|
1-20 |
1-20 |
Contact length
|
mm |
800 |
800 |
800 |
Belt width
|
mm |
135 |
135 |
135 |
Cutting tolerance
|
mm |
2 |
2 |
2 |
HOPS:L*W*H
|
mm |
4170*1040*1780 |
4170*1040*1780 |
4170*1040*1780 |
SPG Machinery (Shandong) Co., Ltd. Was set up in the January 2007 by extrunet GmbH (former named " SPG International "), Austria, which is the largest and most advanced manufacturer of machines for plastic profile extrusion.
SPG (Shandong) has imported the original modern technology, optimal design concept and successful manufacturing system from the headquarters in Austria. Machines from SPG (Shandong) have been used successfully at the most famous of extrusion companies in China and worldwide. In design, production and tuning SPG (Shandong) owns a very strong team with many years experienced technicians and engineers who was strictly trained at the headquarters in Austria, and also has a high efficiency management, and is using the same management system and quality control system as in Austria. With continuous innovation of technology and consistent high quality of products, SPG (Shandong) has become a well-known and trustworthy manufacturer and supplier in the plastic profiles extrusion.
