Specifications:
1.15 years professional experience
2. High efficient service
3. Competitive Price
4. Shorter Lead Time
5. Guarantee: 1 year for whole mould
6. Professtional design team & Skilled Mould maker
7. Great Reputation
Product Discription
|
Name |

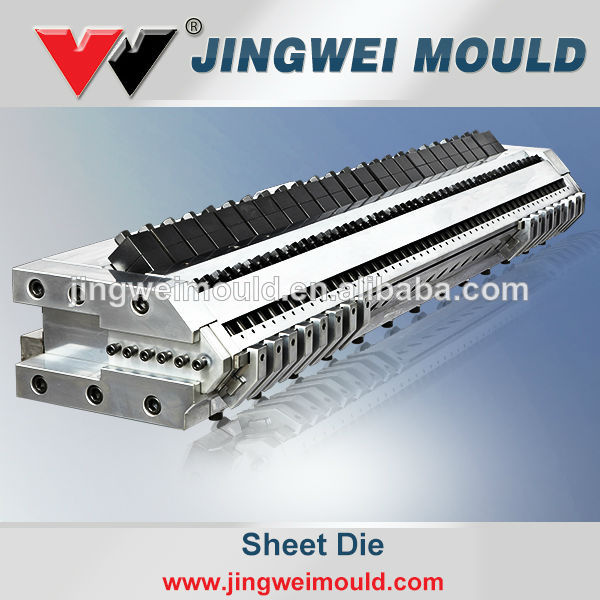

Sheet & plates die Specification |
|
Usage for products |
Widely used in producing all kinds of plastic sheet and plates, such as PP, PS, PE ,HIPS,PC,PMMA,ABS,PET,EVA,TPU,PETG,APET,LDPE,HDPE,PVC single and multi-layer sheet or plates etc; |
|
PE battery isolation board; |
|
PP + starch degradation sheet; |
|
Waterproof sheet; |
|
Micro foaming sheet, etc. |
|
Product thickness |
0.15mm-12.0 mm |
|
Application |
Products are widely used in various packaging; stationery, printing, pharmaceutical, building, decoration, advertising, transportation, industrial applications and so on. |
|
Characters |
Sheet dies without restrictor bars are used for product thickness ranges below 2mm). dies with restrictor bars are used when product thicknesses range both below and above 2mm, or for highly degradable materials. |
|
When processors require larger lip gaps, a common choice is a die with a sliding upper lip. A sliding upper lip provides travel of up to 12.5mm. This design is frequently used when product thickness is always above 2mm, and materials are thermally stable. Jingwei lip adjusting system and system are commonly included. |
|
Gain the convenience of rapid online lip gap control with fast open lip adjusting system. Prevent costly down-time for width changes with fast open system. |
|
For dedicated co-extrusion applications with relatively expensive cap layers, the multi-manifold approach is commonly preferred over a single manifold die with a feedblock. Accurate flow channel design uses less of a cap layer, providing a rapid return on investment. |
|
Heat Voltage |
220V or on customer's request |
|
Heating way |
Heating bars made of stainless steel from Italy |
|
Die material |
2738 from Germanyor P20 |
|
Screws |
High strength at 12.9 grade |
|
Polishing |
Lips and surface of flowing: 0.02-0.03(μm),
Other surfaces: 0.03-0.04(μm). |
|
Chrome thickness: |
0.035-0.045mm |
|
Surface hardness: |
60-70HR |
|
Installation |
On costumer's request |
According customer's requirement to design various width adjustment system, include: External deckling system and inernal deckling system.
Taizhou Huangyan Jingwei Mould Co., Ltd. is one of the pioneer manufacturers of molds for plastic panels, sheets and films. We are located in the Economically Developed Land of Molds & Dies, Huangyan, Zhejiang. Jingwei is a professional manufacturer of single-layer/multi-layer dies, either-thin or extra-thick, of various sizes. Customized sizes to meet customer's every demands are available.
Our mission statement: Excellent quality, sound goodwill, and service. Satisfactory long-term unremitting efforts have resulted in extensive quick screen-changing units and multi-layer co-extrusion feed-block of various sizes and types are available. We have CAD/CAM designing and CNC machining, contributing to higher precision premium products of consistent quality products.
We are your trust worthy partner.
