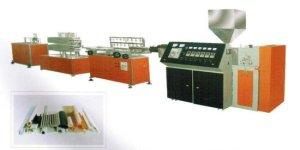

PVC Soft Sealing Strip Extrusion Line/Production Machine
The extrusion productine line for continuous production of PVC sealing strip ( including seal for the embedded steel support frame), which is widely used in cars, windows, refrigeratiors, furtinure. Etc.
This line consists of:
1. SJ45/25 Single Screw Extruder 1 set
1) main motor: 7.5kw, ABB frequency inverter adjusting
2) heating mode and power of barel: Cast-aluminium heating circles, 5kw
3) cooling mode and power of barrel: Air blower,
4) main electrical parts: ABB, Omron, RKC, Schneider etc.
2. Sealiing strip moulds 1 set
1) mould material: 3Cr17
2) mould heating power: 5kw
3. Water cooling tank 1 set
1) water pump power: 2.2kw
2) vacuum pump power: 1.5kw
3) tank material: Stainless steel
4) thickness: 2mm
5) length: 3000mm
4. Haul off machine 1 set
1) Driving motor power: 0.75kw*2 sets, ABB frequency inverter
2) hauling speed: 1-8m/min
5. Single position winding machinie 1 set
1) Motor type: Torque motor
2) coil ID: 250mm
3) motor torque: 4NM
|
Model/Spec. |
Max. Output kg/h |
Motor power KW |
Line speed, m/min |
Installed power, KW |
|
LSJM45 |
30 |
7.5 |
5-12 |
14 |
|
LSJM65 |
50 |
11 |
5-12 |
25 |
Qingdao Jinfuxin Plastic Machinery Co., Ltd is a state designated enterprise producing plastic machinery and high-tech enterprise in Qingdao. Mainly engaged in research & development, manufacturing, sales, and after-sale service of new plastic machinery. Products consist of PVC Crust Foam Board Production Line, Plastic Grass Mat Machine, PET/PP Strap Production Line, PA/PP/PE/PET/PBT Filament Extruding Machine, etc. And all kinds of plastic pipe, profiles, board, bar extrusion line and auxiliary equipment. Our machines are popular with the customers, which are sold all over the country and exported to Southeast Asia, Russia, Ukraine, Iran and other countries.
Since our company has establishd, it always takes the domestic and international market as the guide, the technology as leader, the quality as the life, strengthens joint units with domestic colleges and universities of science and technology and brings in and absorbs foreign advanced technology, in a timely manner to develop new plastic industry products according to the market demand, provides customers with a complete innovative set of production line, takes customer satisfaction as the ultimate goal, to strive for the best plastic machinery in China.
And expand the Qingdao Jin Xinquan Plastic Products Co., Ltd., production of plastic corrugated pipe products are mainly used for electrical threading pipe, auto threading pipe, casing, machine tool products, food packaging machinery, electric locomotives, engineering installation, lamps and lanterns, automation instruments and meters, etc
Jinfuxin company aim "morality for the surplus, credit management, service oriented, joint development, shaping the future".
