PVC spiral reinforced suction hose pipe making machine
Introdcution:
This line is designed to produce PVC spiral reinforced hose, it consists two extruders, forming unit, bath, winder, the wall of which is soft PVC and rigid PVC helix as reinforced, featuring extrudsion resistance, corrosion resistance, negative pressure resistance, anti-bending, good negotiability, so it is suitable to converying gas, liquid and powder.
Application:
Widery used in industry, agriculture, construction and irrigation, etc

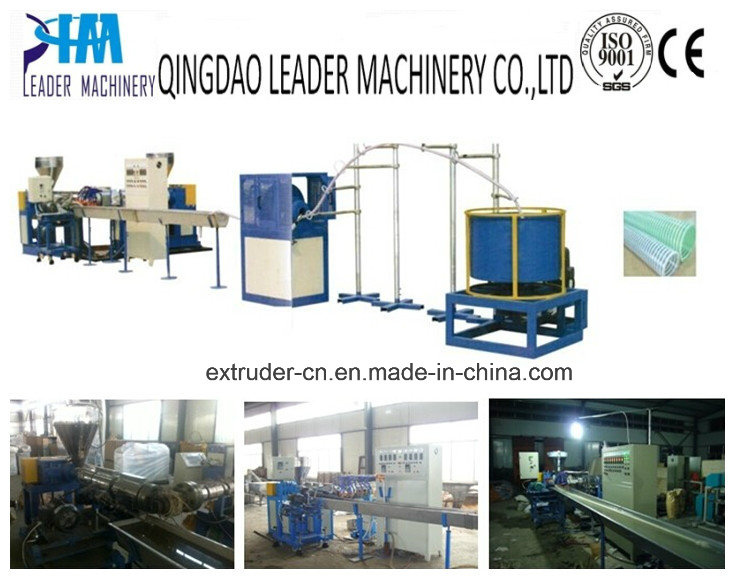

This extrusion line consists of:
The line consists of:
A. LSJ55/28 Single Screw Extruder 2 sets
One is for hard PVC extrusion and the other is for soft PVC extrusion
B. Die Head/Mould Parts 1 set
C. Spiral Forming Machine 1 set
D. Water Cooling Tank 1 set
E. Spiral Hose Haul-off Machine 1 set
F. Transporting Frame 1 set
G. Storage Silage 1 set
H. Single Roller Spiral Hose Winder 1 set
I. Electrical Cabinet 1 set
| Model/data | diameter(mm) | Extruder model | speed(m/min) | capacity
(Kg/h) | Installed power
(KW) | dimension(m) | weight(t) |
| LPSG50 | 13-50 | LSJ45/28 | 1-12m/min | 40 | 35 | 15*4*2.5 | 5.8 |
| LPSG200 | 60-200 | LSJ65/28 | 1-10 m/min | 80 | 60 | 18*5*2.5 | 8.3 |
Qingdao Leader Machinery Co., Ltd is an experienced and professional manufacturer of plastic extruder and extrusion lines for years. We can produce various equipments, including plastic pipe extrusion lines, plastic profile extrusion lines, plastic sheet/plate extrusion lines and also some recycling and pelletizing machines etc. According to different requirement s of each customer, our engineers will provide most professional mechanical design and manufacturing, and the complete processing technology to meet their special application requirements.
Since foundation, we have been dedicated to study and research new products, new processing technology to satisfy the updating requirements of the world, and also we continuously digest and learn from the world advanced science technology and leading process. We are always standing firm ahead domestically in the plastic-extruder field as the pioneering representative. With years of experience in design and fabrication, we newly developed LM series extrusion lines, which realized the high efficiency extrusion idea "high precision control, high efficiency production, high quality production".
Through ISO9001-2008 quality certification, CE certification, SGS certification and GOST certification for Commonwealth of Independent States, strict following the standards of modern enterprise, the overall strengthening and the effective management of production, procurement, technology, and after sale service. We win the market by high quality products and services. At present, products have been exported to the US, Korea, Russia, Ukraine, Kazakhstan, Hungary, UAE, Turkey, Iran, Saudi Arabia, South Africa, Libya, Algeria, India, Nepal, Bangladesh, Mexico, Argentina, Chile and other countries and regions, praised by customers.
