PVC/UPVC Corrugated Roofing Sheets Plant Extrusion Plant
Price: |
US $ 105000/Set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T |

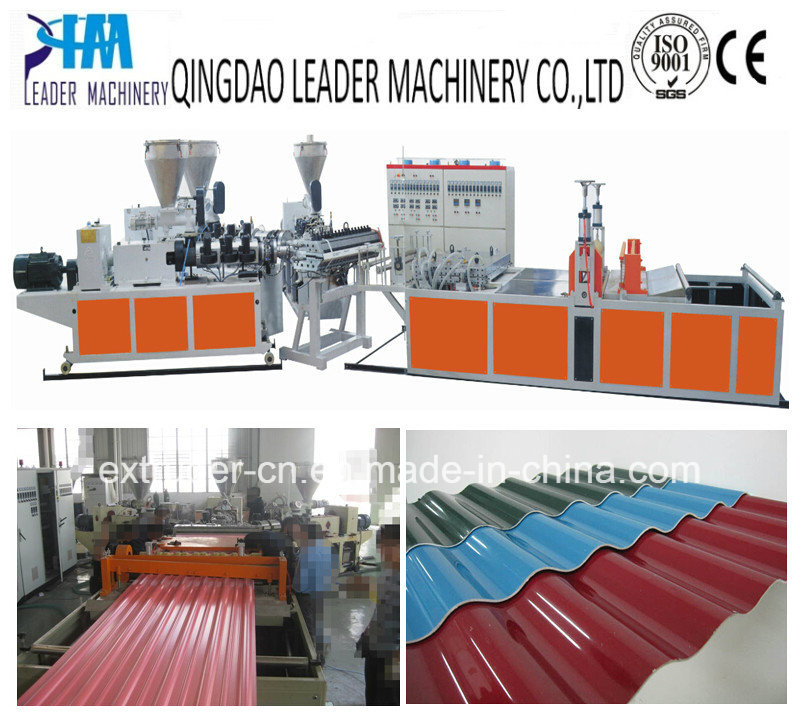

upvc/pvc corrugated roofing sheets extrusion plant
This corrugated roofing sheets extrusion plant is used to produce corrugated roofing sheets. This machine consists of: It includes a twin-screw extruder, a mould, a calibration unit, a haul-off unit, a cutter, a tilter and so on.
PAR T1 THIS LINE CONSISTS OF (COMPULSORY) |
1 | Automatic spring feeding machine | 1 set |
2 | Conical twin screw extruder SJSZ-80/156 | 1 set |
3 | Single screw extruder SJ-45/30 or 65/30 for UV extrusion | 1 set |
4 | T-type /hanger type die head (JC-Times brand) | 1 set |
5 | Corrugation forming boards | 1 set |
6 | Cooling frame and edge cutting unit | 1 set |
7 | Haul off machine | 1 set |
8 | Plastic cutting machine-guillotine with meter counting | 1 set |
9 | Stacker | 1 set |
10 | Electrical cabinet (ABB,Omron, RKC,Schneider, Siemens etc) | |
11 | Spare parts | 1 set |
|
PART 2 ACCESSORY MACHINE PARTS (OPTIONAL) |
1 | High speed hot and cold mixer SRL-Z 300/600 | 1 set |
2 | Plastic crusher SWP-450 | 1 set |
3 | Plastic pulverizer SMP-400 | 1 set |
4 | Air compressor | 1 set |
5 | Industrial water chiller | 1 set |
|
PART 3 SHEET APPLICATIONS |
1 | Roof panels, roof tiles, roof sheets, ceilings |
2 | Factories, warehouses, farm building, greenhouses, canopies, walkways, patio covers, Pergolas, cladding |
|
PART 4 PAYMENT, DELIVERY AND AFTER SALE SERVICES |
1 | Payment terms | 40% for prepayment by T/T, 60% for balanced payment by T/T, or L/C can be acceptable |
2 | Delivery time | 70 days after receipt of prepayment |
3 | Packing method | Wooden cases/pallets with stretching films |
4 | Guaranteed time | 18 months for mechanical parts, 12 months for electrical parts |
5 | After sale service | Send 1-2 engineers to customers' factory to help them install, test the machine, and train their workers. This is chargeable |
6 | Contact | Ms Lilly Zhou (mob/whatsup/viber: 0086-15266238607) |
Sheet specifications |
Sheet width | 720,760,820,840,860,880,900,930,950,980,1050mm etc |
Sheet thickness | 0.5, 0.8, 1.0, 1.2, 1.5, 2.0,2.5,3.0mm |
Sheet length | 4m, 6m or customized |
Sheet weight | 1mm thickness 1.4kg-1.85kg/m2, 2.0-2.4 thickness 2.5-3kg/m2 |
Suitable environment | -40(50)ºC-70ºC |
Surface treatment | With UV coating |
Service life | More than 25 years, 10years can be guaranteed |
Colors and tints | Clear, bronze, opal |
Textures | Can be textures |
Sheet features |
1 | Weatherable and durable |
2 | UV-protection |
3 | Wide range of profiles |
4 | High impact option |
5 | Lightweight and easy to handle |
6 | Low maintenance |
7 | Chemical resistance |
8 | Excellent fire performance |
9 | Economical |
10 | 10 years warranty |
Prod Model: |
LSJ-80/156+65/30 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Name: |
UPVC Corrugated Roofing Sheet Extrusion Plant |
Sheet Width: |
720mm-1050mm |
Sheet Thickness: |
0.5mm-3mm |
Sheet Applications: |
Roofing Tiles/Sheets/Panels for Warehouses |
Extruder Model: |
Conical Twin Screw Extruder +Single Screw Extruder |
Die Head: |
T-Type Die Head |
Main Electrical Parts: |
ABB,Omron,Rkc,Schneider, ,Siemens etc |
Guaranteed Time: |
12 Months |
Transportation: |
1 Set of 40gp Container and 1 Set of 20gp Containe |
Product Type: |
PVC Board |
Board Layers: |
Single Plate |
Certification: |
ISO9001:2008 |
Automation: |
Automatic |
Computerized: |
Computerized |
Qingdao Leader Machinery Co., Ltd is an experienced and professional manufacturer of plastic extruder and extrusion lines for years. We can produce various equipments, including plastic pipe extrusion lines, plastic profile extrusion lines, plastic sheet/plate extrusion lines and also some recycling and pelletizing machines etc. According to different requirement s of each customer, our engineers will provide most professional mechanical design and manufacturing, and the complete processing technology to meet their special application requirements.
Since foundation, we have been dedicated to study and research new products, new processing technology to satisfy the updating requirements of the world, and also we continuously digest and learn from the world advanced science technology and leading process. We are always standing firm ahead domestically in the plastic-extruder field as the pioneering representative. With years of experience in design and fabrication, we newly developed LM series extrusion lines, which realized the high efficiency extrusion idea "high precision control, high efficiency production, high quality production".
Through ISO9001-2008 quality certification, CE certification, SGS certification and GOST certification for Commonwealth of Independent States, strict following the standards of modern enterprise, the overall strengthening and the effective management of production, procurement, technology, and after sale service. We win the market by high quality products and services. At present, products have been exported to the US, Korea, Russia, Ukraine, Kazakhstan, Hungary, UAE, Turkey, Iran, Saudi Arabia, South Africa, Libya, Algeria, India, Nepal, Bangladesh, Mexico, Argentina, Chile and other countries and regions, praised by customers.
