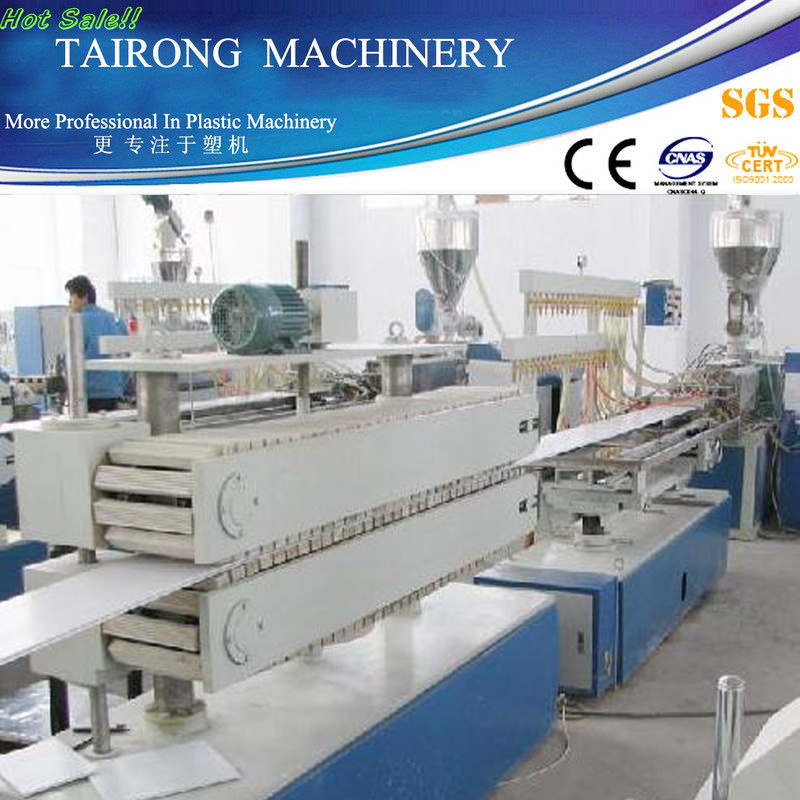

PVC Window/Door/Ceiling Panel Profile Production/Extrusion Line
PVC ceiling production line
1. Material can be extruded out directly after two grades of mixing, and it can also be extrueded by two steps after pelleting.
2. The line is of characteristics of energy and space saving.
3. The line is consisted of conical twin screws extruder, caccum calibration table, haul-offunit, and stacker, and also coorinated with different kindls of moulds to producePVCdoor and profile
|
MODEL |
YF180 |
YF240 |
|
Vacuum degree (MPa) |
-0.08--0.09 |
-0.08--0.09 |
|
Center height of T type dies (mm) |
320 |
320 |
|
Height from ground to die (mm) |
890-1100 |
890-1100 |
|
Moving distance of vacuum calibration table (mm) |
400 |
500 |
|
Hauling speed (m/min) |
0.3-7.8 |
0.1-4 |
|
Hauling force (KN) |
7.5 |
30 |
|
Effective hauling length (mm) |
1.0 |
1.8 |
|
Width of rubber (mm) |
180 |
240 |
|
Cutting linear velocity (m/s) |
58.6 |
58.6 |
|
Max. Cutting section (mm) |
180×65 |
240×65 |
Zhangjiagang Tairong Machinery Co., Ltd. is located in the economically developed Yangtze River Delta, east to Shanghai, south to Suzhou and west to Nanjing. The geographic location is extremely advantageous.
TAIRONG integrates the research, development, production, and trade of plastic machinery. Our company has a strong technical team and a perfect after-sales service system. We have won customers' consistent high praise.
Our main products are no-dust cutting machines, PPR, PERT, PEX-B pipe high-speed extrusion production lines, gas pipe extrusion lines, fiberglass composite enhanced PP-R pipe production lines, PEX-A cross-linked pipe production lines, single/double screw extruders, washing line, granulating production lines and dryers, feeding machines, crushers, water chillers and other types of plastic auxiliary equipment.
TAIRONG Machinery has strong technical strength, excellent processing equipment, and leading R & D capability. Our company has always insisted on the business purposes of "prestige first, customer first, full service". We have provided clients with better quality, complete service and technical support.
