PVC Window Frame Profiles Making Plant
| Price: |
US $ 40000-180000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Qingdao Jinfuxin Plastic Machinery
PVC window frame profiles making plant:
This unit is professional line to produce PVC plastic profile product, including doors and windows series profile product, PVC foaming profiles and decorative plates.
The line compounds domestic and abroad technology, having characters of high automatic level, steady performance, large output and high efficiency.
Product introduction:

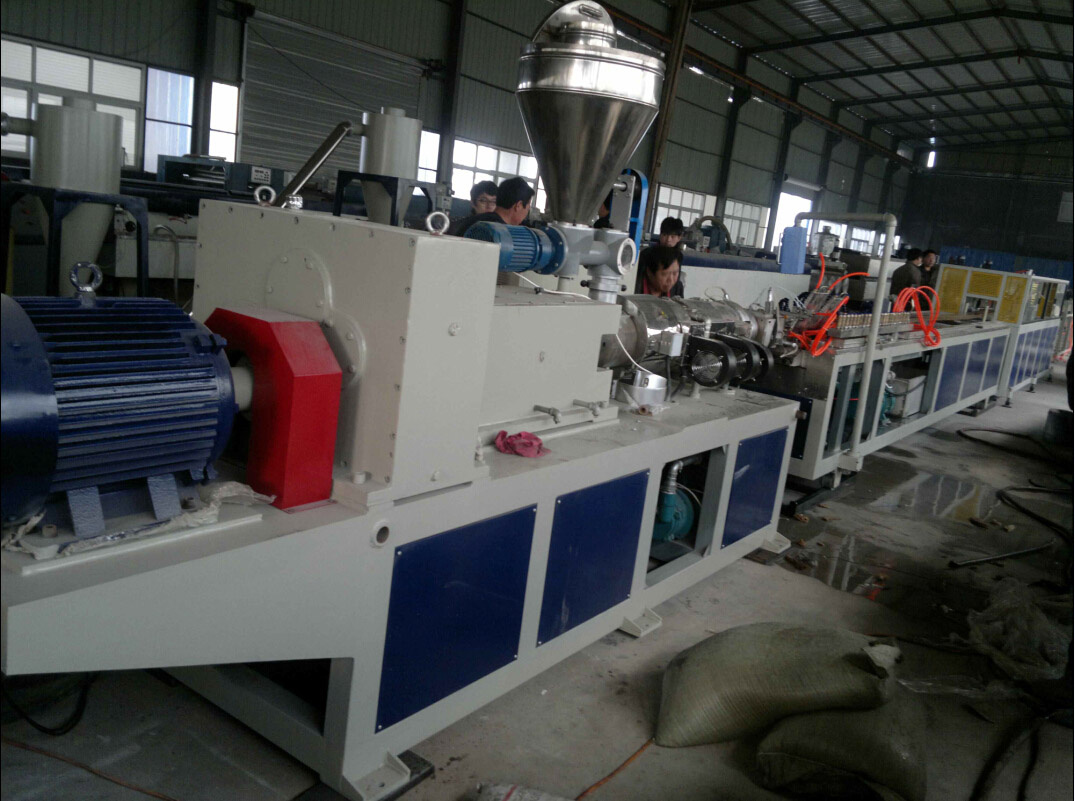

PVC windowsill production line, the working process is as follows: Material Mixing--Twin screw extruder--Mould--Vacuum shaping machine--Cooling--calibrating--haul-off machine--cutting device--discharging---laminating.
This machine, using imported electric devices, has the advantages of stable and high output, as well as a long servicing life.
The final product width: 500-1000Mm, thickness20-40mm. The product's surface is smooth and beautiful. It is an ideal material for decoration
Technical parameter:
Type SJSZ-80 SJSZ90
Product scope 400-600mm 600-1200mm
Capacity 350kg/h 600kg/h
|
Model |
YF180 |
YF240 |
YF300 |
|
Max. width |
180 |
240 |
300 |
|
Auxiliary total power (kw) |
18.7 |
27.5 |
33.1 |
|
Cooling water capacity (m³/h) |
5 |
7 |
7 |
|
Compressed air pressure (Mpa) |
0.6 |
0.6 |
0.6 |
| Prod Model: |
JFX-51/105 JFX65/132 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automation: |
Automatic |
| Computerized: |
Non-Computerized |
| Width: |
180-300mm |
| Certification: |
ISO9001:2008 |
| Product Type: |
PVC Profile |
