PVC/WPC Wood-Plastic Profile and Extrusion LineFetching in Europe and America advanced technology and uniting with domestic condition, our company develop this production line.
This production line is mainly used to produce PVC profile, such as Ceiling, Deck, Floor, Cornice, Plank, Windows, Door frame and board and etc.Feature:1. Conical twin-screw extruder, suitable for processing PVC powder and WPC raw materials.
2. Changing the moulds to produce many kinds of different PVC profiles.
3. Auxiliary machine: Mixing unit, Mould, Vacuum calibration table, Haul-off machine, Cutter and Stacker.Machine Show

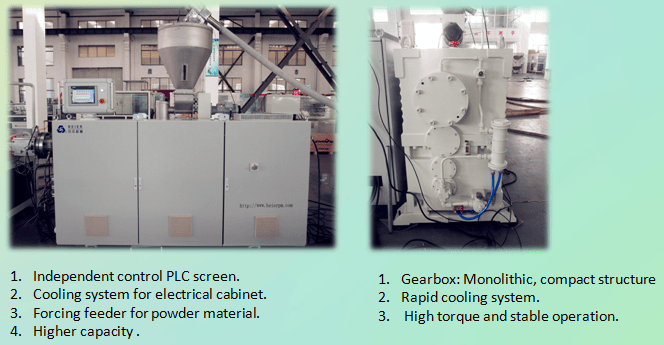

Conical twin-screw extruder

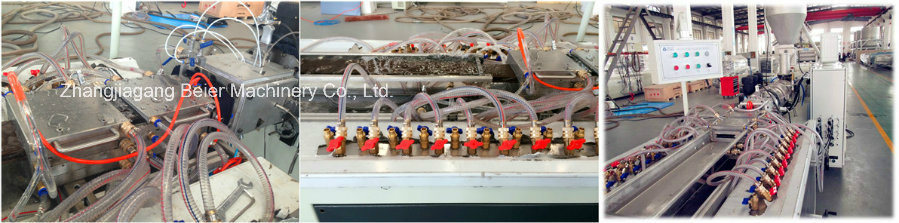

Calibration Mold
The mold is divided and made in three parts: extrusion mold, lip mold and calibration mold.
The multi-stage designed guarantees the low friction for each part to ensure the surface more smoothly.
1.Independent and mobile control screen for more easy operation.
2.Strong water cooling for quick calibration.
3.Whole frame made by stainless steel.
4.Adjustable moving for accurate production.
Technical Parameter
Model | YF108 | YF180 | YF240 | YF300 | YF400 | YF500 | YF600 |
| Max.Width(mm) | 108 | 180 | 240 | 300 | 400 | 500 | 600 |
Extruder model
| SJZ51/105 | SJZ51/105 or SJZ50/110
| SJZ65/132 | SJZ65/132 | SJZ80/156 | SJZ80/156 | SJZ80/156 |
| Main Motor Power (kw) | 18.5 | 22 | 37 | 37 | 55 | 55 | 75 |
| Production capacity (kg/h) | 150 | 150/190 | 250 | 250 | 350 | 350 | 400 |
BEIER headquarter was founded in 1998, which has been engaged in researching and manufacturing plastic recycling and extrusion equipment for more than 15 years and so far our products have been exported to more than 160 customers in 70 countries around the world. We have 80, 000M2 land occupation area and new modern & large-scale workshops and around more than 300 staff by now. Our annual turnover is around 30 Million US Dollars.
Our products mainly involve three parts as below:
1. Recycling: Including washing and granulating production line. The maximum output of washing line is 6 tons per hour and our product has covered America, Russia, South Asia, Southeast Asia, Middle East, Africa and so on.
2. Extrusion: Including pipe extrusion, profile extrusion, sheet extrusion, and wood plastic extrusion. The pipe extrusion line is our core product and it has the advantage of high efficiency and energy saving (For instance: The ratio of output and energy consumption of our high efficiency PE production line can reach 4.5 kg / kw)
3. Blow molding machine: High degree of automation and have same technology and quality with Kautex Germany. Our products are widely used in the packaging industry and end-customer includes Bluemoon and COFCO and so on.
