PVD Multi-Arc Ion Coating Machine/Multi Arc Vapor Deposition Machinery

PVD Multi-Arc Ion Coating Machine/Multi Arc Vapor Deposition Machinery
Price: Negotiable/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Set
Pay Type: L/C,T/T
PVD Multi-Arc Ion Coating Machine/Multi arc vapor deposition machinery

1. Vacuum process;
2. Non-pollution
3. Get metallized and colorful film
4. Full automatic


PVD Multi-Arc Ion Coating Machine  is a ion coating machine of efficiency, harmless and pollution-free. It has the features of fast deposition rate, great ionization rate, big ion energy, easy operation, low cost, large productive capacity, etc.

Characteristic: The principle of the electric arc is integrating cold cathode arc discharge self-sustained light unite pulse technique and magnetron sputtering technology, thinning the particles to improve the properties of the film. It can coat on the surface of the metal as well as nonmetal.

Applied industry:PVD Multi-Arc Ion Coating Machine can be used to coat metal film, titanium nitride, titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel, chromium, copper, and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film, and in a very short time to complete all the machining process, it is a highly efficient multi-functional coating equipment

PVD Multi-Arc Ion Coating Machine is extensively used in the fields of ultra-hard coating about the tools and mould, decorative coating about car wheels, ceramics, golf, watches making, hotel product, sanitary ware, luminaires, optical frame, hardware, etc.

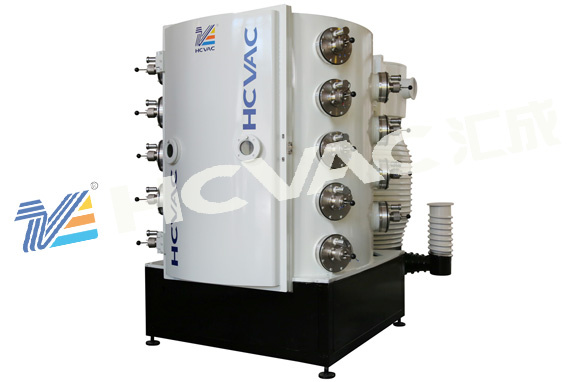

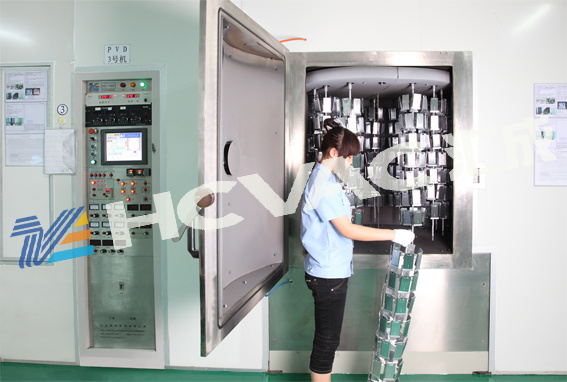

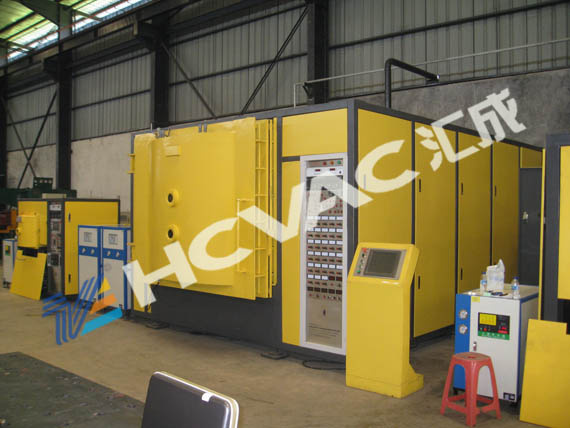

This is our machine:

Samples coated by our machine:

More information about our vacuum coating machine, pls do not hesitate to contact:

Contact person: Mandy Liu

Phone No.: +8613825755941/+8615989615980


Mode
Dimension
LH-800 LH-1250 LH-1416 LH-1618
800*1000mm 1200*1500mm 1400*1600mm 1600*1800mm
Coating mode and main confirguration
Eight multi-arc targets

Twelve multi-arc targets

Fourteen
multi-arc targets

Twenty
multi-arc targets
Power source Electric-arc power, Filament power,   Pulsed bias power supply
Process gas control Mass flowmeter + Electromagnetic ceramic valve
Vacuum chamber structure
Vertical side opening door, pump system postposition, double water cooling
Vacuum system Molecule pump +Roots pump +Mechanical pump(5.0*10 -5 Pa)
Diffusion pump +Roots pump +Mechanical pump(5.0*10 -4 Pa)
Workpiece baking temperature
Normal temperature to 350 centi-degree PID control, radiation heating.
Workpiece motion mode Public rotation Frequency control: 0-20 rotation per minute
Measure mode Number display composite vacuum gauge: from atmosphere to 1.0*10 -5 Pa
Control mode Manual/Automatic/PC/PLC + HMI/PC  four choice of control mode
Remark We can design the dimension of the equipment according to customer's special technique requirement.
Prod Model: LH-
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product: PVD Multi-Arc Ion Coating Machine
Business Type: China Manufacturer/Supplier
Brand: Hcvac
Structure: Vetical, Single Door
Certification: ISO9001, CE, TUV, SGS
Control System: Manual Autoamtic All-in-One
Operating System: PLC Touching Screen
Coating Film: Tin, Tic, Ticn, Tialn, Crn, Cu, Au etc.
Coating Color: Gold, Rosegold, Silver, Black, Blue, Rainbow etc
Chamber Material: Stainless Steel
Coating: Vacuum Coating
Type: Coating Production Line
Substrate: Glass, Metal, Ceramic, Alloy
DongGuan HuiCheng Vacuum Technology Co., Ltd is a high-tech enterprise specialized in the R&D, Production and Marketing of various kinds of the vacuum equipments. Our company aggregates many excellent technicians in the vacuum industry, including engineers with the senior and middle technique titles. We also invite the senior experts and experienced technicians to be responsible for the development and design of the new products, insure the high technology and quality of the vacuum equipment. Our products are popular with both the domestic and overseas clients, and have a high reputation in the vacuum industry.

Our company is dedicated to the R&D of the series of the vacuum coating machine. We have been designed various coating technics projects according to different requirements successfully, especially in the fields of mobile(computer) shell, electronical appliance, metal, auto parts and high-tech industries, etc. Particularly we designed the special wheels coating machine for the VIP enterprise in Zhejiang Province in 2007, bringing great benifits for the client, making prominent contribution to the environment protection and generating extremely positive social effectiveness. It is high appreciated by the government and craft brother. Therefor this project is listed to the item of the Nation Star Project. Our main products also include slide valve vacuum pump, Roots vacuum pump, water ring vacuum pump, rotary-vane vacuum pump, various vacuum units and different vacuum heating energy equipments, etc.

Our company sticks to the selling concepts of"People-Oriented, Keeping improving, Innovative and Factualistic, Customer First"; Holding the management policy of "Keep the science and technology ahead, Put quality and service at the first place"; Carrying forward our corporate spirits"Honesty and High efficiency, Unity and Struggle, Factualic and Innovative". We'll continue to hold the development and improvement as our main rhythm, stepping forward to the goal of becoming diversification, internationalization and high technological modern enterprise. We will make new contribution to set up the international advanced level in the vacuum fields.
