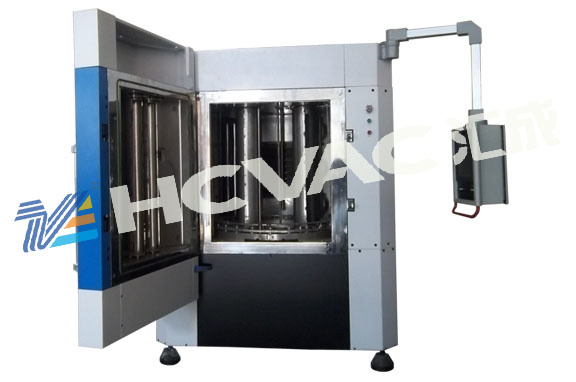

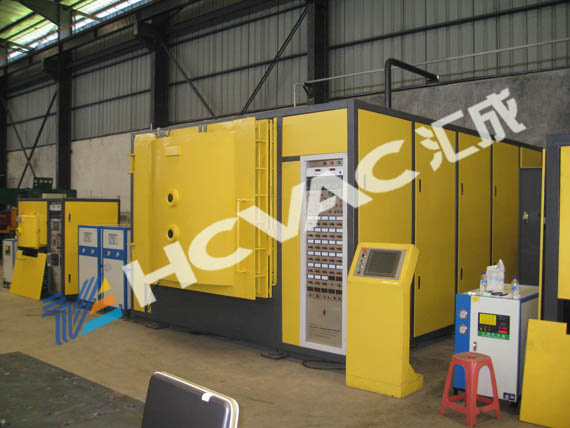

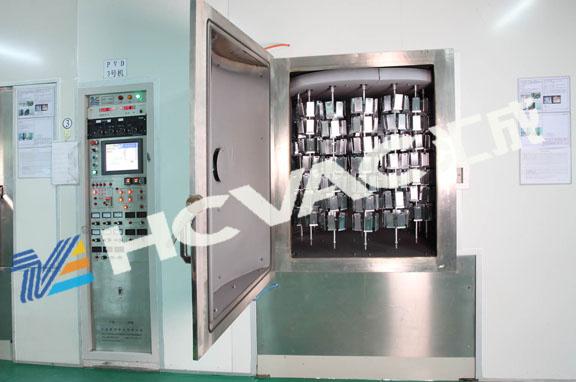

PVD Vacuum Coating Machine for Doorknob

PVD Vacuum Coating Machine for Doorknob
Price: US $ 10/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
PVD Vacuum Coating Machine for Doorknob is a ion coating machine of efficiency, harmless and pollution-free. It has the features of fast deposition rate, great ionization rate, big ion energy, easy operation, low cost, large productive capacity, etc. Characteristic: The principle of the electric arc is intergrating cold cathode arc discharge self-sustained light unite pulse technique and magnetron sputtering technology, thinning the particles to improve the properties of the film. It can coat on the surface of the metal as well as nonmetal.

Applied industry: It can be used to coat metal film, titanium nitride, titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel, chromium, copper, and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film, and in a very short time to complete all the machining process, it is a highly efficient multi-functional coating equipment. This machine is extensively used in the fields of ultra-hard coating about the tools and mould, decorative coating about car wheels, ceramics, golf, watches making, hotel product, sanitary ware, luminaires, optical frame, hardware, etc.

All the vacuum metallizers are environmental protection products and sooner or later will replace tradition galvanization industries.
Mode
Dimension
JTL-900JTL-1100JTL-1250
900*1000mm1100*1000mm1250*1100mm

Coating mode and main confirguration
Six multi-arc targets + one set of column targets + one set of plane rectangle magnetron sputtering targets
Six multi-arc targets + a pair of twin (MF)magnetron sputtering targets
Twelve multi-arc targets + two sets of  plane rectangle magnetron sputtering targets+ a pair of twin (MF)magnetron sputtering targets
Power sourceElectric arc power, DC magnetron power, MF magnetron power, filament power, pulse power, linear ionized source.
Process gas controlQuality flowmeter + electromagnetism ceramic valve
Vacuum chamber structureVertical single(side) door, pump system postposition, double water-cooling
Vacuum systemMolecule pump +Roots pump +Mechanical pump(5.0*10 -5 Pa)
Diffusion pump +Roots pump +Mechanical pump(5.0*10 -4 Pa)
Workpiece baking temperature
Normal temperature to 350 centi-degree PID control, radiation heating.
Workpiece motion modePublic rotation Frequency control: 0-20 rotation per minute
Measure modeNumber display composite vacuum gauge: from atmosphere to 1.0*10 -5 Pa
Control modeManual/Automatic/PC/PLC + HMI/PC  four choice of control mode
RemarkWe can design the dimension of the equipment according to customer's special technique requirement.



Prod Model: JTL-series
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Control System: PLC+ Touch Screen, Automatic+ Manual

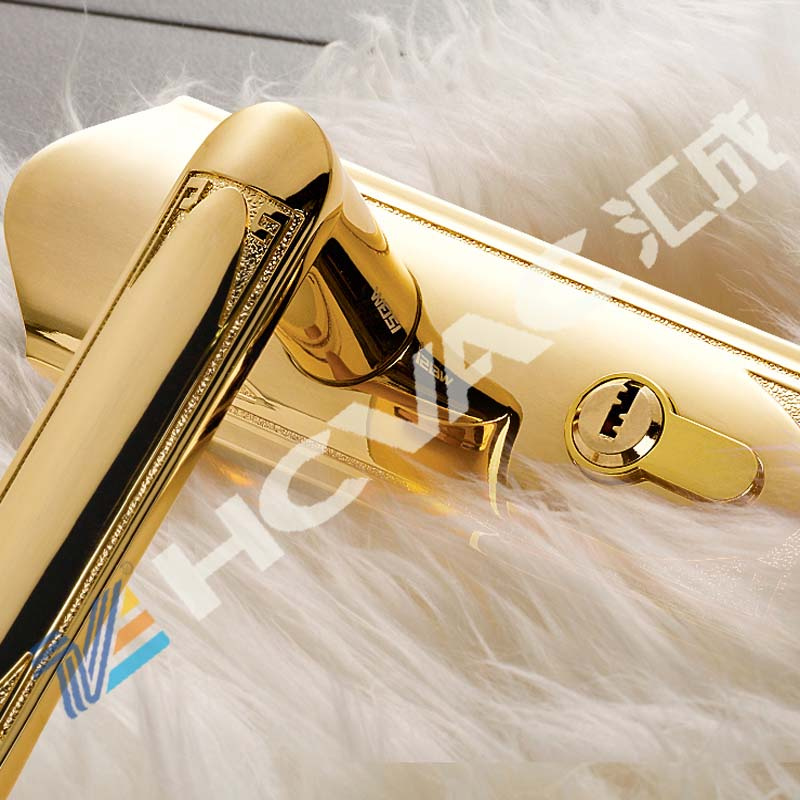

Application: Decorative Coating, Widely Use in Door Handle
Certification: CE,ISO9001,TUV,SGS
Business Type: Manufacture+Trading
Service: Engineers Available to Service Machinery Overseas
Brand: Hcvac
Company Name: Dongguan Huicheng Vacuum Technology Co.,Ltd
Coating: Vacuum Coating
Type: Coating Production Line
Substrate: Steel
DongGuan HuiCheng Vacuum Technology Co., Ltd is a high-tech enterprise specialized in the R&D, Production and Marketing of various kinds of the vacuum equipments. Our company aggregates many excellent technicians in the vacuum industry, including engineers with the senior and middle technique titles. We also invite the senior experts and experienced technicians to be responsible for the development and design of the new products, insure the high technology and quality of the vacuum equipment. Our products are popular with both the domestic and overseas clients, and have a high reputation in the vacuum industry.

Our company is dedicated to the R&D of the series of the vacuum coating machine. We have been designed various coating technics projects according to different requirements successfully, especially in the fields of mobile(computer) shell, electronical appliance, metal, auto parts and high-tech industries, etc. Particularly we designed the special wheels coating machine for the VIP enterprise in Zhejiang Province in 2007, bringing great benifits for the client, making prominent contribution to the environment protection and generating extremely positive social effectiveness. It is high appreciated by the government and craft brother. Therefor this project is listed to the item of the Nation Star Project. Our main products also include slide valve vacuum pump, Roots vacuum pump, water ring vacuum pump, rotary-vane vacuum pump, various vacuum units and different vacuum heating energy equipments, etc.

Our company sticks to the selling concepts of"People-Oriented, Keeping improving, Innovative and Factualistic, Customer First"; Holding the management policy of "Keep the science and technology ahead, Put quality and service at the first place"; Carrying forward our corporate spirits"Honesty and High efficiency, Unity and Struggle, Factualic and Innovative". We'll continue to hold the development and improvement as our main rhythm, stepping forward to the goal of becoming diversification, internationalization and high technological modern enterprise. We will make new contribution to set up the international advanced level in the vacuum fields.
