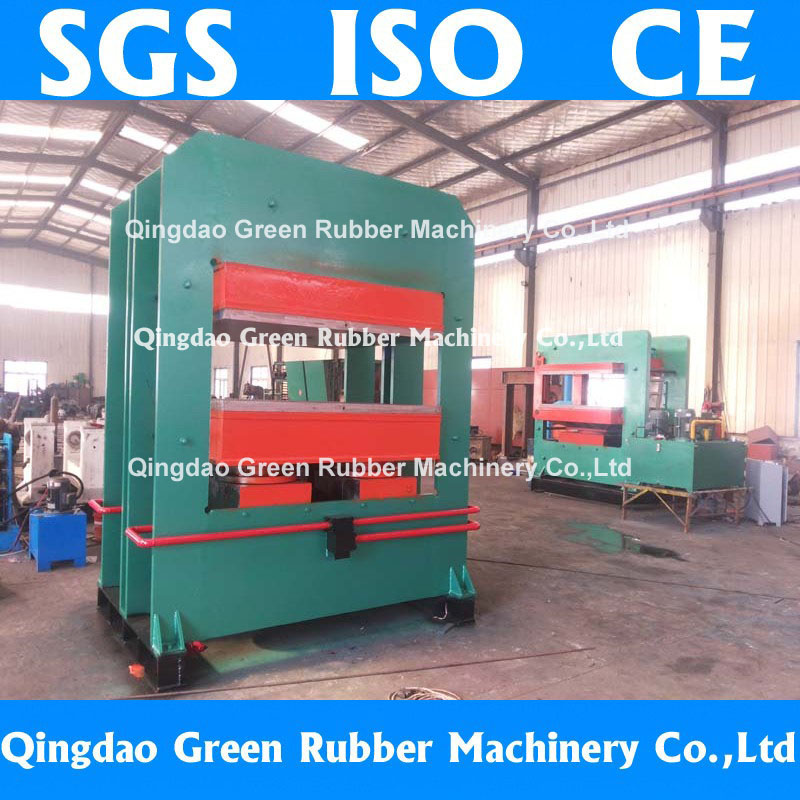

Rubber Machine (Vulcanizer)
Automatic PLC Control Vulcanizing Machine
A. Main performance
1. This machine is mainly used to produce all kinds size rubber products, it is
Super performance and sales very well in the world.
2. This machine is slab side structure.
3. This machine is equipped with high and low pressure oil pumps directly driven by the
Motor. The motor is started by magnetic starter. The thermal relay installed inside is
Used as overload protector. When the motor is overloaded or in fault, the machine
Will stop automatically.
B. Choose as your request
1. Pressure from 25 tons to 10000 tons
2. Single layer or multi-layers
3. Manual or automatic or semi-automatic
4. Mold opening and push-out device
5. PLC control
6. Electric or steam or oil heated form
7. Heated temperature, up to 250° C
If you are interested in our products or have any questions please contact us freely. We will try our best to meet your requirement at first time.
Phone: +86-15954820233
Pleased at your service!
We have the strength to make you satisfied, please give me this honor! At the same time we welcome you to visit our factory. Looking forward to your arrival! ! !
|
Type |
XLB-D(Y)350×350×2 |
XLB-D(Y)400×400×2 |
XLB-D(Y)500×500×2 |
|
(MN)Nominal mounding power |
0.25 |
0.5 |
0.6,0.8 |
|
Working layer number |
2 |
2 |
2 |
|
(mm)Piston stroke |
250 |
250 |
250 |
|
(Mpa)plate pressure |
2.04 |
3.13 |
3.2 |
|
KW)Main motor power |
1.5 |
2.2 |
2.2 |
|
(mm)plate chearanle |
125-200 |
125-200 |
125-200 |
|
Calefaction manner |
Electricity, (oil) steam |
Electricity, (oil) steam |
Electricity, (oil) steam |
|
Configuration |
Column type, frame type |
Column type, frame type |
Column type, frame type |
|
Electric heating pipe's heating power (each heating layer) KW (only to the form of heating) |
1.8 |
2.7 |
3.0 |
|
|
|
