We design and manufacture tyre machines.

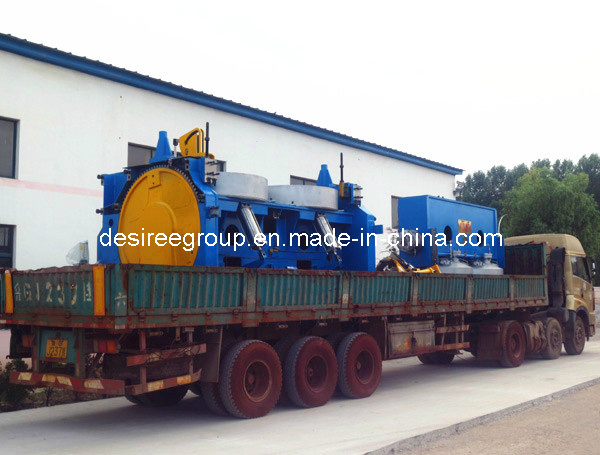

Tyre Vulcanizing Machine / Qingdao Slide Back Tyre Vulcanizing Machine
Function:
1. For curing of all-steel heavy-duty radial tyres.
2. For curing of semi-radial passenger car/light truck tyres.
3. For curing of nylon bias tyres with one set of additional post cure inflator.
Features:
1. The machine is multi-link type.
2. Mainly consists of main machine, center mechanism, mechanic claw, steam dome, segmented mould controller, tire stripping machine, unloader, cooling roll way, driving water piping, steam piping, force measure device, lubricating system, electrical control syetem, compressed air piping, safety device, top link centering device, etc...
3. Center mechanism type: B type.
4. Top link moving type: Sliding back. (Tilting back type for optional)
FOR PIPING, WE CAN DESIGN AS PER YOUR REQUIREMENTS.
Advantage:
1. High running stability.
2. Long using life under suitable maintance.
Our Services:
1. One year warranty after commissioning.
2. Lifetime technical support.
3. Engineers available to service machinery overseas.
4. Any demand, we will give feedback within 24hours.
From technical exchange, design, manufacturing, and commissiong, there will be 2 to 3 professional engineers accompany you, until qualified tire be manufactured in your plant.
About us:
Qingdao Desiree Group Rubber Machinery Co., Ltd is one of the major companies of Qingdao Desiree Group, which devotes itself to designing and manufacturing of high quality rubber machinery.
The Group is composed of 5 subsidiaries which are Qingdao Desiree Group Surface Treatment Equipment Co., Ltd, Qingdao Desiree Group Rubber Machinery Co., Ltd, Qingdao Desiree Group Automobile Inspection Device Co., Ltd, Qingdao Desiree Group High-rise Parking Equipment Co., Ltd and Qingdao Desiree Group Real Estate Co., Ltd. After decades of development, Qingdao Desiree Group now is Qingdao TOP 15 large-scale private enterprise.
Group has continuously increased the input in basic equipment. Till now, our company has built modern processing workshop, metal working workshop, electric workshop and assembly workshop, and introduced a number of large modern and high-precision machining equipments to guarantee our products quality.
Quality is our life. Striving for China famous brand is our job target.
FAQ:
Payment:
1. T/T 30% deposit, balance before shipment.
2. Negotiable.
Contacts:
Telephone & Fax: 86-532-84130227
Mobile Phone: 18560603872
Any question, please feel free to contact with me.
Welcome to make a field inspection of our factory.
|
Tyre Vulcanizing Machine Model No. |
LL-B1525×2 (63.5") |
LL-B1640×2 (65.5") |
LL-B1310×2 (55") |
LL-B1220×2 (48") |
LL-B1145×2 (45") |
LL-B1050×2 (42") |
|
Steam dome specifiction(mm) |
1525 |
1640 |
1310 |
1220 |
1145 |
1050 |
|
Max mould closing force (kN) |
4220 |
4500 |
2890 |
1920 |
1720 |
1320 |
|
Mould height(mm) |
254-635 |
254-635 |
245-445 |
305-505 |
230-455 |
180-300 |
|
Main motor power(kW) |
16 |
16 |
13 |
11 |
11 |
11 |
|
Apply bead specification |
19''-24'' |
19''-24.5'' |
16''-20'' |
13''-20'' |
12''-17.5'' |
12''-16'' |
|
Notes |
Works for the vulcanization of TBR , PCR tires or bias tires. |
|
If it works for curing the bias tires, the press will match with post curing inflator. |
|
If works for curing the radial tires, the press will match with segmented mould controller. |
