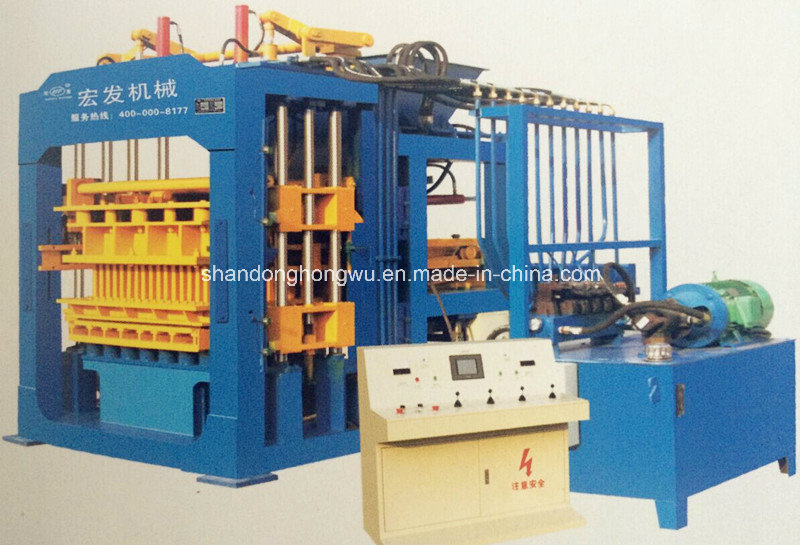

QT8-15 Automatic BRick Making Machine:
1. Super-strong steel structure made of extensive imported original parts, ensuring more stability and reliability for the concrete block machine body.
2. The whole process uses a PLC aptitude control and dialogue system of human-machine interface, easy to analyze the chance signal, ensure the best operation effect.
3. High-efficient and super-strong vibration system, computer-control flow pressure of the hydraulic system, realize vertically synchronous vibration, frequency conversion, and braking, with synthetic output compounded with double vibration sources, thus greatly increase product compactness and mold-box service life.
4. The cloth system adopts semi-closed screen reticular rotational feeding unit to feed materials forcedly, with evenness and even speed, ensuring product intensity.
5. Fitted with special hydraulic loading unit, readily realize mass and automatic production, saving a great deal of human power, maintenance field, and circulating fund investment.
Techincal Parameter:
| Overall Dimension | 87500*2100*3020mm |
| Rated Pressure | 21MPa |
| Main Vibration Form | Platform vibration |
| Cycle Time | 15-25 seconds |
| Vibrating Frequency | 2800 -4500 rolls/minute |
| Motors Power | 41KW |
| Pallet Size | 1020*900*25mm |
| Raw Materials | crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
| Applied Fields | widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc. |
| Applied Products | concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
Productivity:
| Bricks | Size | QTY/Mould | Cycle Molding | Per Hour | Per Day (10hours) |
|
| Hollow Brick | 400*200*200 | 8 | 15-20s | 1440-1920pcs | 14400-19200pcs |
| Porous Brick | 240*115*90 | 24 | 15-20s | 4320-5760pcs | 43200-57600pcs |
| Standard Brick | 240*115*53 | 52 | 15-17s | 11000-12480pcs | 11000-124800pcs |
| Color Brick | 220x112.5x60 | 28 | 25-30s | 3360-4032pcs | 33600-40320pcs |
Land Area required:
| Workshop | 200m2 |
| Office | 100m2 |
| Total area | About 2000m2 |
Workers Required:
| operation | 1 | Material loader | 1 |
| Drive forklift | 1 | Feeding pallets | 1 |
| Maintain | 1 | Total | 5 |
Why choose us:
1.20 years of manufacturing history and 15 years of exporting experience.
2.High configuration of brick machine such PLC,motors and Switch ,Hydraulci station .
3.Good service:
Firstly our fatcory has the excellent team injcluding designing and technology tems. Second Our enginners will go abroad to install,commission and train your laobor .
Any further information pls be kind to contact with Alina at +86 18754957965 .
Thanks so much for your kind inquiry and looking forward to cooperation with you for now and future.
Alina.
Mob:+86 18754957965
