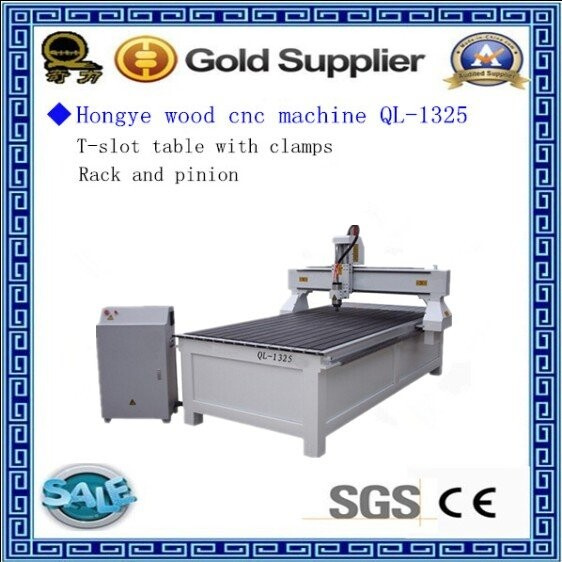

Quality CNC Manufacturing 1325 Wood CNC Machine
1.2D, 3D engraving, cupboard door, wooden craft door, paint-free door, screen, craft window, furnitures processing,
Milling and engraving.
2. Woods, MDF, EPS foam, Composite boards, PVC, Rigid plastics, Acrylic Sheets, Glass, Organic glass,
Aluminum plates, copper and other materials.
Specification:
X, Y, Z, working space1300*2500*200mm
Lathe bed structureThick steel frame, heavy duty
Table surfaceVaccum table with vaccum pump
X structureRack and pinion, linear square rail
Y structureRack and pinion, linear square rail, Y double motor drive
Z structureBall screw, linear square rail
Resolution± 0.02mm
Reposition accuracy± 0.05mm
Max. Operating speed0-30000mm/min
Max. Working speed0-20000mm/min
Spindle power motor4.5kw water cooling spindle
Spindle speed0-24000RPM
Working modeStepper motor and driver
Command codeG code(*uoo, *nc, *mmg, *plt)
Operating systemDSP control system
SoftwareArtcam
Working voltage3 phase AC380V/220V 50Hz/60Hz
Running circumstanceTemperature: 0° C~45° C
Relative humidity: 30%~75%
Gross weight1200kgs
Net weight1100kgs
Spare Parts1 Software CD, 1 Education CD, 1 Data cable, 1 Power cable, 12Tools, 2 Wrench, 1 Vacuum pump, two days free training in our factory
PackingIron frame and standard wooden case or other
Delivery Time25-30days
Payment Terms50%T/T advance, 50%T/T balance before shipment
WarrantyMain parts free charge for one year, offer lifetime online and phone service
Customized NeedsDimension of engraving area, motor, spindle, control system, software and other configurations.
Features:
1. Lathe bed adopts strong welded steel tube to avoid distortion.
2. Y axis adopts double motors to keep stable moving.
3. High accuracy Rack Rail travel method with high speed.
4. Imported Square Linear Rail, high accuracy, heavy burthen.
5. Advanced international technology vacuum table and vacuum pump, Dust collector system with 6 zones separately control, dust cover.
6. Humanization Design of lathe bed vacuum and T-slot with clamps as well and easy working
7. Intelligent protecting working table.
| X,Y,Z Working Area | 1300x2500x200mm |
| Table Size | 1440×3040mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| Lathe Structure | Welded Structure |
| X, Y Structure | Gear Wheel Transmission, |
| Shaft Linear Bearings |
| Z Structure | Ball Screw, |
| Shaft Linear Bearings |
| Max. Consume power | 5.0Kw |
| Max. Speed | 0-32000mm/min |
| Max. Working Speed | 0-20000mm/min |
| Spindle Power Motor | 3.0KW Chinese water-cooling spindle |
| Spindle Speed | 0-18000RPM |
| Working Mode | Stepper |
| Working Voltage | AC220V/50/60Hz,1PH |
| (Option: 380V,3PH) |
| Command | G Code, *uoo, *mmg, *plt |
| Operating System | DSP System (Option: Mach3 PC Software) |
|
| Interface | USB |
| Flash Memory | 32M |
| Collet | ER25 |
|
| X,Y Working Delicacy | <0.01mm |
| Software | Ucancam software, Artcam software, Option |
| Running circumstance | Temperature: 0 °C~ 45 °C |
| Relative humidity: 30% ~ 75% |
| Packing Size | Seperated: 3200X1960X1340mm |
| Net Weight | 900KG |
| Gross Weight | 1150KG
|
Jinan Hongye CNC Machine Co., Ltd., is a professional manufacturer for CNC Routers, Laser Engraving Cutting Machines and Vinyl Cutting Plotters. Since the company has been founded, devotes in carves the CAD/CAM technology, the CNC numerical control technology research and development, makes the considerable progress in the precision engraving machine design theory and the processing technology aspect, the success has realized the automation control technology the process which transforms to the industrial production. The wonderful strength product selection fine fitting, vigorously promotes the packaging technique, caused the product to move toward stably, in the advertisement profession, the carpentry profession, in the metal mold profession held the small space.
The wonderful devoting for in the national relatively well-known product brand, by it especially superior performance-to-price ratio, high quality perfect and the post-sale service, the market share expands unceasingly, has determined Qi Li in same profession status gradually. The wonderful strength person presently unceasingly develops the innovation by the full enthusiasm, carries forward ours brand, realizes the product multiplication, will be better, a more superior product to offer to the user community.
