| Price: | Negotiableset |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1set |
| Pay Type: | L/C,T/T,Paypal,Western Union |

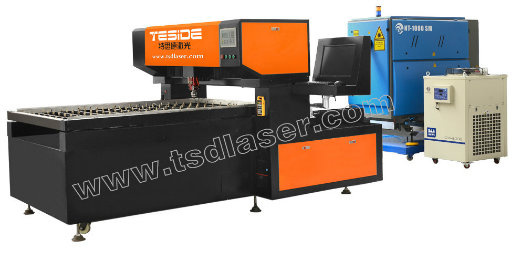

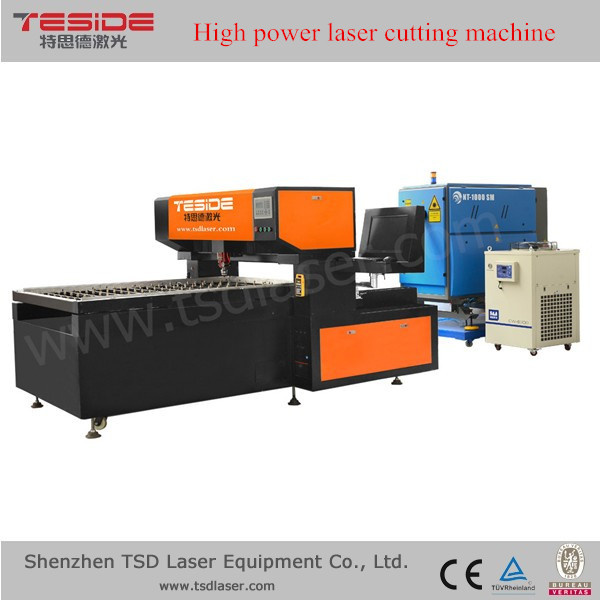

Applications:| Model No. | TSD-LC1000-1218 |
| Laser output power | High power axial flow CO2 laser source |
| X-axis travel-length | 1250mm |
| Y-axis travel-length | 1850mm |
| Cutting precision | ±0.05mm |
| Re-Positioning Precision | ≤0.02mm |

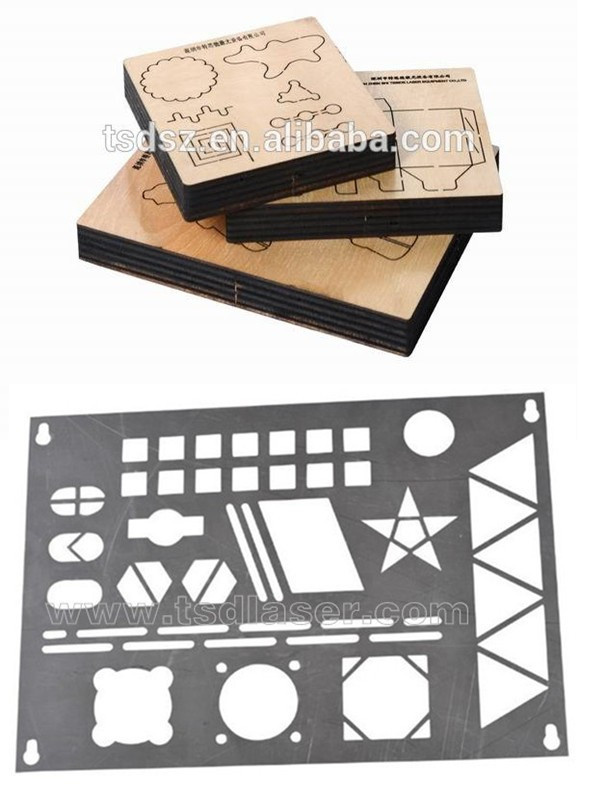

| Average.Cutting speed | 60 meters/hour for 18mm plywood |
| Controlling system | PMAC Motion card PMAC |
| Transmission system | Ball screw & Linear guide |
| Driving system | 3 Axial Servo |
| Optical system | Semi-optical |
| Moving structure | Gantry |
| Chiller system | Special Chiller system for imported laser tube |
| Overall dimensions (L x W x H) | 3000*2300*1800MM |
| G.Weight | 3000KGS |
| Power supply (Machine table) | Single Phrase 220V 50Hz |
| Power supply (Laser generator) | 3 Phrase 380V/50Hz/30A |
| Laser generator gas matched | He N2 CO2(99.99%) |
| H.S Code | 8456100090 |
Machine / Assistant Equipments Features:
A) Motor System:Three Panasonic full-digital AC Servo Motor to guarantee high precision cutting
B) Drive System:HIWIN Linear guide rail + ball screw to guarantee high precision cutting and table moving
C) External light path system:USA optical lens to guarantee strong laser focus
D) Laser system:Best China RECI Laser tubes to guarantee stable laser working
E) Cooling system:Best China CW-6000 Industrial Chiller water cooling
F ) Protective Gas:Dry oil-free air, Taiwan Tai Sheng air dryer
G) Exhausting system:Two sets exhaust fans to carry out smoking
H) Laser control system:Fully English language TSD laser software, PC control
I ) Laser power Devices:Best China brand Hongyuan
J ) Fixed laser path, laser head fixed, board moving
K) Stable machine design, high strength of machine bed, long-year working
L ) Low consumption of voltage about 5-7 kilowatt per hour
Technical Specifications:
Machine model No. | TSD-LC300-1216 |
Processing scale | 1250mm x 1600mm |
Machine weight | 1500kgs |
Laser type | CO2 Sealed laser tube |
Laser power | 300W double heads |
Driving motor | Panasonic Servo Motor |
Cutting depth | 18mm-22mm plywood |
Cutting precision | ±0.05MM |
USB port connection | Yes |
Operating temperature | 0-45°C |
Mould knife thickness | 0.45mm, 0.71mm,1.07mmetc.Controllable |
Cutting speed | 25-30meters/hour 18-20mm plywood |
Protective gas | Dry and oil-free air |
Power supply | Single-phase electricity 220V±5% 50Hz 10A |
Numerical control panel | LCD screen, light-touched key-press |
Software supported | CorelDraw, AutoCAD, Photo Shop, |
Graphic format support | PLT,DXF,BMP,JPG,GIF,PGN,TIF |
EMS memory | Attached 32MB memory, can work under off-line condition |
Laser tube guarantee | Guarantee 6 months,6000 hours life span for laser tube |
Assistant equipments | Air Dryer, industrial chiller, Exhaust Fan, Computer System |
Recommend spare parts | Laser Tube and Lens |
H.S Code | 8456100090 |
A) Possess of functions such as bending, bridge, front lipping, back lipping, cutting, flat cutting six functions.
B) Panasonic Servo motor system + Ball-screw guide- rail in design, eradicate skidding and dislocated.
C) Unique imported mould tool design, easy to bend pattern, high precision of size, durable
D) In order to guarantee precision and long-life span, transmission and control parts are imported
E) Self-developed latest bending control system, easy to operate and upgrade available.
F) Fully English & Chinese interface, easy to learn how to operate, make bending work easy.
G) It can be installed soon after bending patterns form the machine, no need extra more hard work.
H) It's widely used in box mould, doll mould bending.
I) Exactly to realize fully automatic bending, help to save plate making time.
Exhibition:The 5th All in Print China
Add:Shanghai New International Expo Center
Date:14-17th Nov.2014
Booth No.:W2-B-409
---------------------------------------------------------------------------
Exhibition:International Packaging & Printing Industry Vietnam
Add:SECC--Saigon Exhibition & Convention Center, HCM
Show Date:October .22-25, 2014
Booth No.:628
--------------------------------------------------------------------------
Exhibition:The 12nd PRINTPACK INDIA
Add:India Expo Center, Greater Noida Delhi NCR
Show Date:February 11 to 15, 2015
Booth No.:Hall 10 - E16
--------------------------------------------------------------------------
Exhibition:The 22nd South China International Exhibition on Printing Industry
Add:Area A.China Import &Export Fair Complex Guangzhou .PR China
Show Date:March 9 to 11, 2015
Booth No.:4912
--------------------------------------------------------------------------
Exhibition:The 3rd International Printing Technology Exhibition of China (Guang Dong)
Add:Guangdong Modern International Exhibition Center
Show Date:April 7 to 12, 2015
Booth No.:71029
--------------------------------------------------------------------------
Exhibition:SinoCorrugated 2015
Add:Shanghai New International Expo Center
Show Date:April 14 to 17, 2015
Booth No.:Y59
--------------------------------------------------------------------------
Shenzhen TSD Laser Equipment Co., Ltd locates in Shenzhen China and specialize in die board laser cutting machine, automatic blade bending machine development, manufacture, marketing and service which has been widely used to manufactured for packing, printing and die making industries.
Address:No.12Building,hengmingzhu Technology&Industrial park,Tongfuyu Industrial Area,Shajin Street,BaoAn District,Shenzhen,518104,Guangdong,P.R.China
Tel:+86 775 2749 5815 Fax:+86 775 2960 9023
Where are we TSD machines?
Overseas markets:Indonesia, Thailand, Malaysia, Vietnam, Myanmar, Bengal, SriLanka, Brazil, Colombia, U.A.E., Lebanon, Egypt, Algeria, Kosovo, Turkey, Kuwait, South Africa, Poland, Finland, Bolivia, Iran, Philippines, Sudan, Romania, India, Singapore, Saudi Arabia, Russian Federation, Uzbekistan...Etc.Countries.
General questions
1.What's the guarantee, in case the machine breaks down?
The machine has 1 years' guarantee.If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback.Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
2.What's the trade term?
Both FOB and CIF is OK.
3.What's the payment terms?
30% deposit, 70% balance before delivery by T/T is prefer.Small amount with West Union or Paypal is acceptable.
4 .Do we have any certificate?
CE, TUV with BV certificate
5.How about the documents after shipment?
After shipment, we will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
6.Do you arrange shipment for the machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.For EXW price, clients need to arrange shipment by themselves or their agents.
Contact information :
Ms.YoYo Huang
Business manager
Mob:+ 86 185 6572 9193
| Prod Model: | TSD-LC1000-1218 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Model No.: | Tsd-LC1000-1218 |
| Laser Output Power: | High Power Axial Flow CO2 Laser Source |
| X-Axis Travel-Length: | 1250mm |
| Y-Axis Travel-Length: | 1850mm |
| Average. Cutting Speed: | 60 Meters/Hour for 18mm Plywood |
| Controlling System: | Pmac Motion Card Pmac |
| Driving System: | 3 Axial Servo |
| Overall Dimensions (L X W X H): | Overall Dimensions (L x W x H)T3000*2300*1800mm |
| Laser Generator Gas Matched: | He, N2, CO2(99.99%) |
| Placing Form Of Template: | Horizontal |
| Automatic Grade: | Automatic |
| Application: | Die Plate /Metal Plate |
| Species: | Laser Cutting Machine |
| Die Cutting Tool: | Laser Cutting |
