Quality PPR Three Layer Co-Extrusion Pipe Extruder Machine

Quality PPR Three Layer Co-Extrusion Pipe Extruder Machine
Price: US $ 30000-50000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Quality PPR Three Layer Co-extrusion Pipe Extruder Machine

Features:
1. Screw Type: special single screw extruder for polyolefin with high extruding speed and effective plasticization. Separation mixing screw specialized for polyolefin.
2. Extrusion Type: specially designed three co-extruding die, reasonable channel, smooth outside and inside wall, and little internal stress.
3. Pipe Dia: 16mm to 160mm, extruding speed 16 m/min.
4. Final Products: HDPE silicon core tube, ordinary PP-R, PE and PEX pipes.

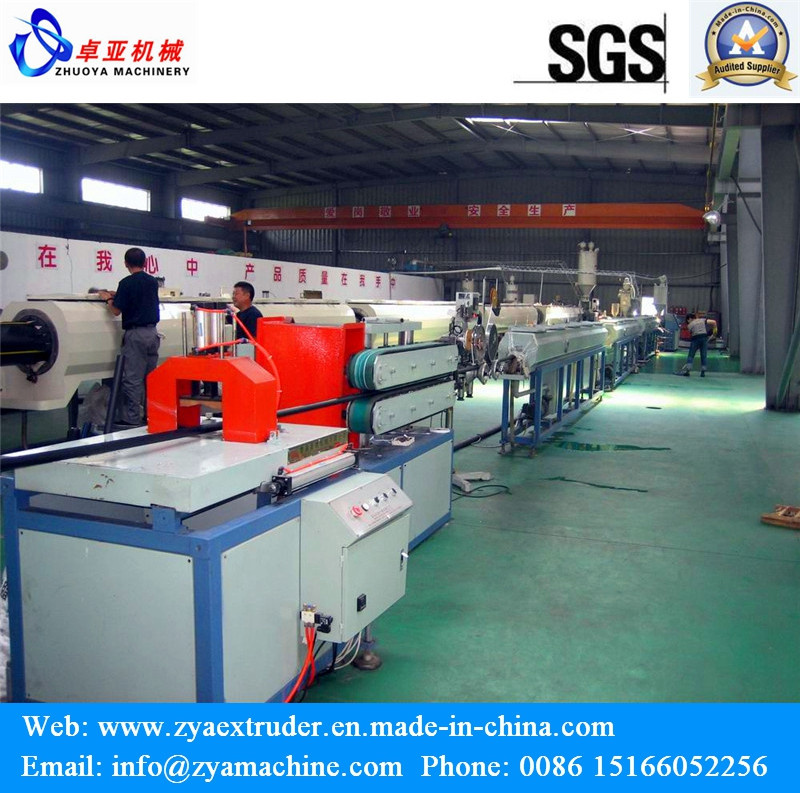

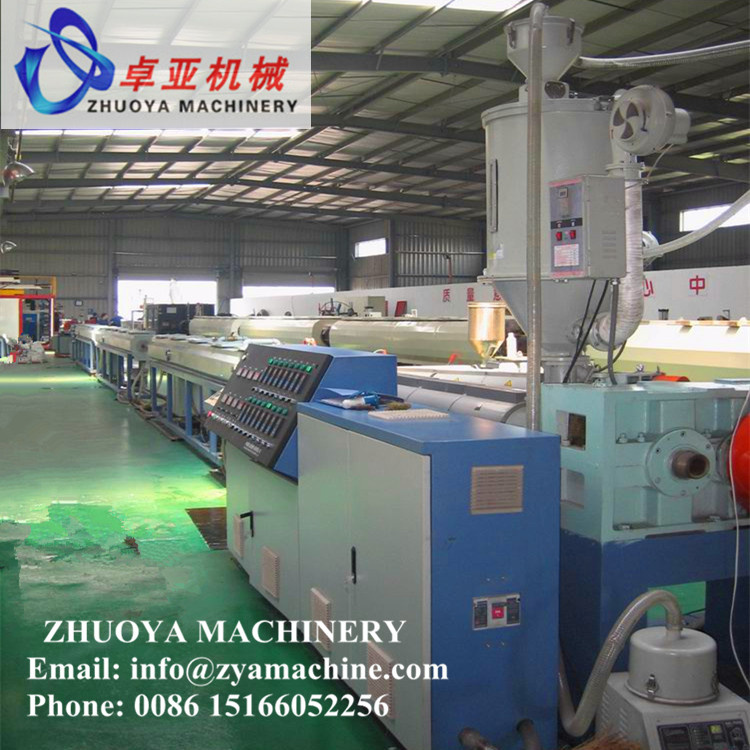

Processing flow of PPR pipe production line:

Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mould and calibrator → vacuum forming machine → cooling tank → haul-off machine → cutting machine → discharging rack



Technical Specification:




Model (Groove Feed Type)

SJ-65

SJ-75

SJ-90



Pipe Range (mm)

16-63

16-110

63-160



Capacity (kg/hr)

90

125

160



Main Motor (kw)

37

55

75



Haulling Speed (max. M/min)

2-8

2-8

2-8

Vacuum Tank

Pump Drive (kw)

2.2

3.7

3.7 & 2.2

Length (mtrs)

6

6

6

Water Tank

Pump Drive (kw)

3.7

3.7

3.7

Length (mtrs)

-

6

6+6



Total Power (kw)

80

105

140



Line Length (m)

30

38

50

Prod Model: SJ65
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Screw: Single Screw
Plastic Processed: PPR,Pert,PP,PE
Output: Max.150

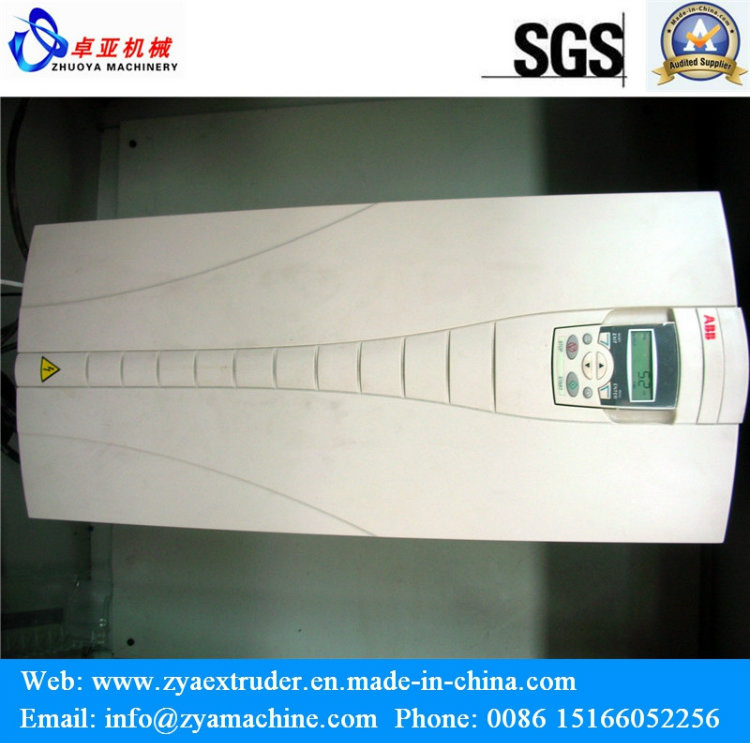

Inverter: ABB
Certificate: SGS
Application: Hot and Cold Water Supply Pipe
After Sale Service: Engineers Available to Oversea Service
Product Type: PPR Pipe
Automation: Automatic
Computerized: Computerized
Certification: ISO9001:2008
QingDao Zhuoya Machinery Co., Ltd. is the science and technology knowledge-intensive corporation integrated with research and development, fabrication, sales and service, professionally engaged in the manufacture of plastics processing complete equipment.

The company always obeys the principle of "credit is the basis, quality is the life, innovation is the pursue, service is the main ", keeps the quality promise for customers, focuses on introducing and cultivating talent, cooperates with many science and research institutes, has strong technology power and perfect testing means, integrates advanced technology advantages and rigid equipments and has introduced many technologists with working experience in research and development and fabrication of plastics processing whole equipments, and understanding and experience accumulation in plastics process and plastics machinery design matching; All of these have ensured high quality and excellent performance of our fabrication of plastics machinery equipments.
