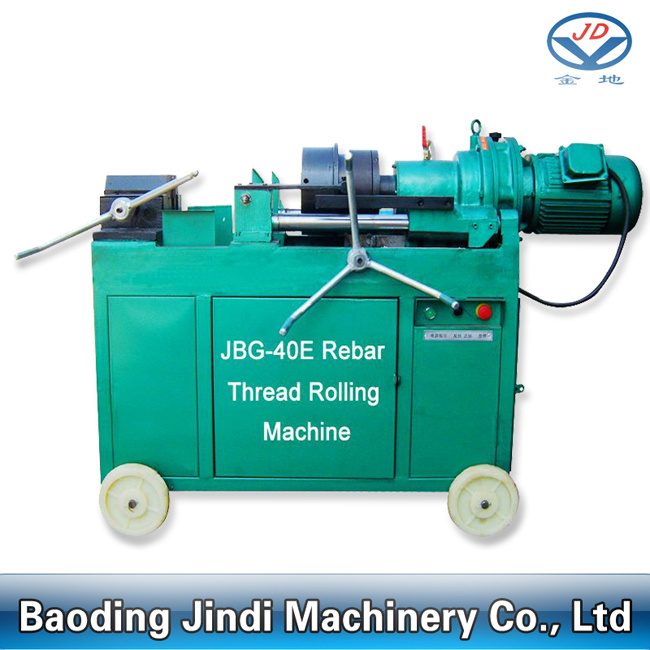

REBAR THREAD ROLLING MACHINE is mainly applied to strip rebar rib first and roll parallel thread on rebar end. After that two threaded rebar sectors are connected by rebar coupler. In addition, this machine is also applied to roll threads on round steel bar, anchor rod, or other equivalent material.
Main Features
1. MCB and leakage protector added to the control part could gurantee effectively machine normal operation and personal safety.
2. Not destory the bottom diameter of the base material, and the splicing sector strength is higher than that of parent material.
3. Personalized design: Both left and right-handed thread are processed with one head.
4. Convenient operational maintenance: The cutting tool can be replaced for only 3-5 minutes.
5. The cutting tool adopts automatic break-make mechanism; The rebar is clamped once and processed within 30 seconeds.
6. Simple operation; Saving material; Reducing cost; Shortening construction period, reduce the labor intensity of workers.
|
Model |
JBG-40E |
|
Suitable For Rebar Diameter |
16mm-40mm |
|
MAX Thread Length |
200mm |
|
Roller Thread Angle |
60° / 75° |
Roller Thread Pitch
(mm) |
2.5mm for rebar diameter 16mm-22mm;
3.0mm for rebar diameter 25mm-32mm;
3.5mm for rebar diameter 36mm-40mm.
Rollers Dimension could be customized. |
|
Rated Power |
4.04KW |
|
Rated Current |
8.46A |
|
Electrics |
AC 3P/N/PE 380V 50Hz |
|
Rotated Speed |
40-62r/min |
|
Dimension L*W*H |
1200mm*600mm*1300mm |
|
G/W |
440kg |
