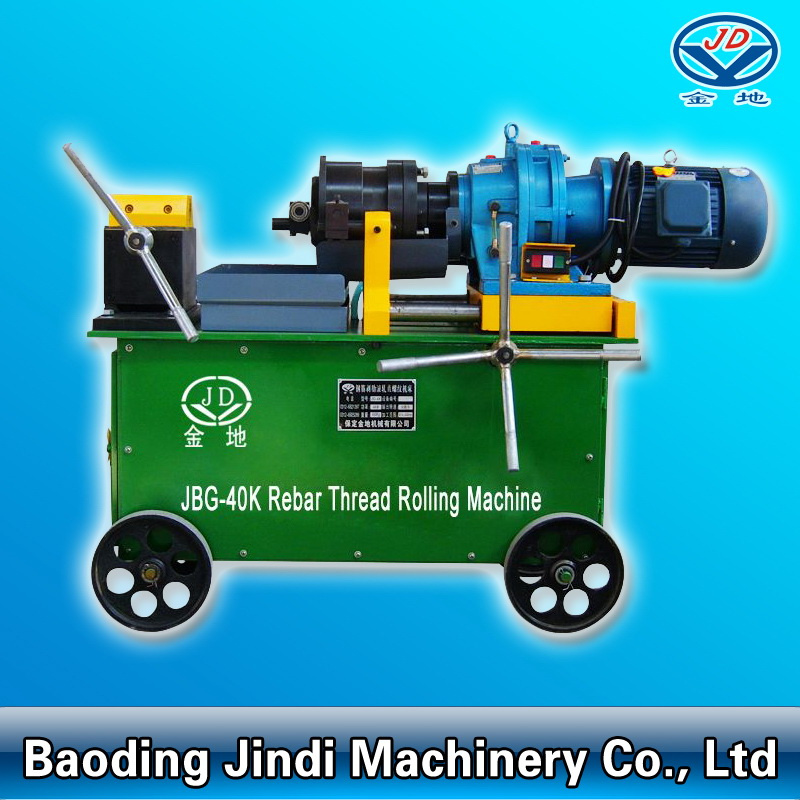

The rebar thread rolling machine series is mainly used to process the ribbed rebar to provide the rebar head with parallel screw thread in construction. It is the key equipment to realize the rebar parallel splicing.
Principle
First, prepare the rebars which will be connected.
Second, we use the rebar rib-stripping and rolling parallel thread machine to roll parallel thread after peeling rib of the rebars; Third, we use the coupler to link the two ends of rebar.
Advantages
1) Rib peeling completed by one-time steel bar nipping, roll screw thread with fast speed.
2) Highly automatic and easy to operate.
3) Rolling wheel has long service period, low additive cost of connector.
4) Few roll head specifications, wide scope of steel bar machining, 14mm - 40mm steel bar screw thread machining with one machine.
5) Easy to adjust for rolling steel bars in different specifications; Rebar coupler can connect rebar diameter from 14mm to 40mm, the tensile strength is equal to rebar material.
Features
1)It can process rebars of HRB335, HRB400and HRB500 with diameter from 14mm to 40mm.
2)It has the unique self opening die head. The rebar is clamped only once and rebar head with screw thread can be processed within 30 seconds.
3)The process of the parallel thread adopts cold rolling technology. The rebar head has no false thread and the thread size is precise.
4)The process doesn't destroy the bottom diameter of the base material. The splicing strength is stronger than that of the parent material.
5)Reasonable design. There is only one handpiece to process left-handed and right-handed thread, which is quite easy to operate and maintain. The cutting tool can be replaced for only 3-5 minutes.
Baoding Jindi Machinery Co., Ltd was established in 2002 with registered capital of 10 million RMB yuan.As a professional manufacturer of rebar mechanical splicing products, we are specializing in the production of rebar coupler, parallel thread rolling machine and related accessories.Our products are domestically in a leading position in the field of construction.
Now our products have passed the authentication of ISO 9001 quality system.We can produce 4000 sets of various machines, 40 million splicing couplers, which have been widely used in many major projects both at home and abroad, such as Fuqing Nuclear Power Plant, Shanghai light rail and so on.In order to offer better after-sales service, we have set up many branches, respectively in Beijing, Tianjin, Shanghai, Guangzhou, Xiamen, Dalian, Yantai and so on.
In order to meet the strong construction demand (including civilian, industry, tunnel, bridge, Hydraulic construction fields), we are working hard to make our products more economical, environment-friendly and efficient.With high quality and satisfactory after-sales service, our products have enjoyed a good reputation in the world market.In the future, we will do our utmost to make it better and more perfect and to build up a famous "JINDI" brand in this field.
