Product Introduction

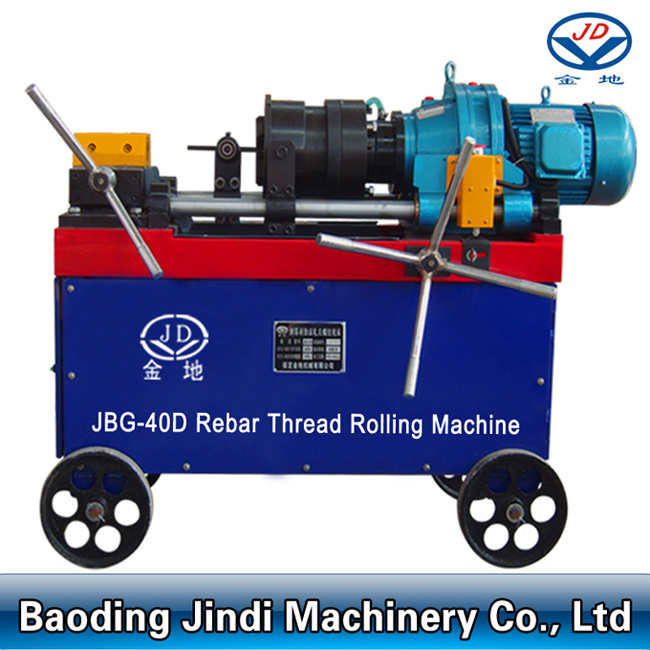

REBAR THREAD ROLLING MACHINE is mainly applied to strip rebar rib first and roll parallel thread on rebar end. After that two threaded rebar sectors are connected by rebar coupler. In addition, this machine is also applied to roll threads on round steel bar, anchor rod, or other equivalent material.
Main Features
1. It can adjust freely in the range of 14-40mm using the rib-stripping plate.
2. One clamp could complete rib- stripping and rolling thread on rebar end.
3. The processed thread is smooth and full with high precision.
4. Simple operation; Save material; Reduce cost; Shorten construction period, reduce the labor intensity of workers.
5. Not destory the bottom diameter of the base material, and the splicing sector strength is higher than that of parent material.
6. Personalized design: Both left and right-handed thread are processed with one machine head.
7. Convenient operational maintenance: The cutting tool can be replaced for only 3-5 minutes.
8. The cutting tool adopts unique automatic break-make mechanism; The rebar is clamped once and processed within 30 seconeds.
Model |
JBG-40D |
Power |
380V 50Hz |
Process Range |
14mm-40mm |
Rotated Speed |
40-62r/min |
MAX Thread Length |
100mm |
Dimension L*W*H |
1200mm*600mm*1300mm |
Roller Thread Angle |
60° / 75° |
G/W |
440kg |
Roller Thread Pitch
(mm) |
Standard Roller
|
2.5P for rebar diameter 14mm-22mm;
3.0P for rebar diameter 25mm-32mm;
3.5P for rebar diameter 36mm-40mm. |
We can customize roller as requirement. |
Baoding Jindi Machinery Co., Ltd was established in 2002 with registered capital of 10 million RMB yuan.As a professional manufacturer of rebar mechanical splicing products, we are specializing in the production of rebar coupler, parallel thread rolling machine and related accessories.Our products are domestically in a leading position in the field of construction.
Now our products have passed the authentication of ISO 9001 quality system.We can produce 4000 sets of various machines, 40 million splicing couplers, which have been widely used in many major projects both at home and abroad, such as Fuqing Nuclear Power Plant, Shanghai light rail and so on.In order to offer better after-sales service, we have set up many branches, respectively in Beijing, Tianjin, Shanghai, Guangzhou, Xiamen, Dalian, Yantai and so on.
In order to meet the strong construction demand (including civilian, industry, tunnel, bridge, Hydraulic construction fields), we are working hard to make our products more economical, environment-friendly and efficient.With high quality and satisfactory after-sales service, our products have enjoyed a good reputation in the world market.In the future, we will do our utmost to make it better and more perfect and to build up a famous "JINDI" brand in this field.
