General Information
Rebar threads making machine is widely used in processing parallel
threads of rebar D14-40mm for rebar mechanical splicing.
Relying on its easy operation, reasonable structures and reliable performances,
this machine has gained good fame in many overseas markets.
Technical Parameters
Model: CRS40-100
Thread Pitch: 2.0mm, 2.5mm, 3.0mm, 3.5mm/customized
Thread Angle:60°/75°
Thread Type: Parallel and straight threads
Max Thread Length: 100mm
Rebar Diameters: D16-40mm
Rated Speed:62r/min
Motor Speed: 1440r/min
Motor Power(kw): 4 KW/5.5KW
Voltage: 380V/60HZ
Reduction Ratio: 1:17 / 1:23
Net Weight: 400kgs
Packaging: Wooden Cases/As Customers' Special Demands
Packaging Dimensions: 1280*680*1270mmCertification: ISO 9001
Operation
1. Firstly, stripping steel bar ribs.
2. Secondly, rolling parallel threads on rebar ends.
3. Last, splicing two pieces of threaded rebars with couplers.
Applied in:1.Constructions
2. Nuclear power stations
3. Railway stations
4. Power transmission towers
5. Skyscrapers; etc
Different Models
| Model | Processing Length | Weight(kgs) | Suitable Rebar |
| CRS32-4 | 70mm | 350kgs | D16-32mm |
| CRS40-100 | 100mm | 400kgs | D16-40mm |

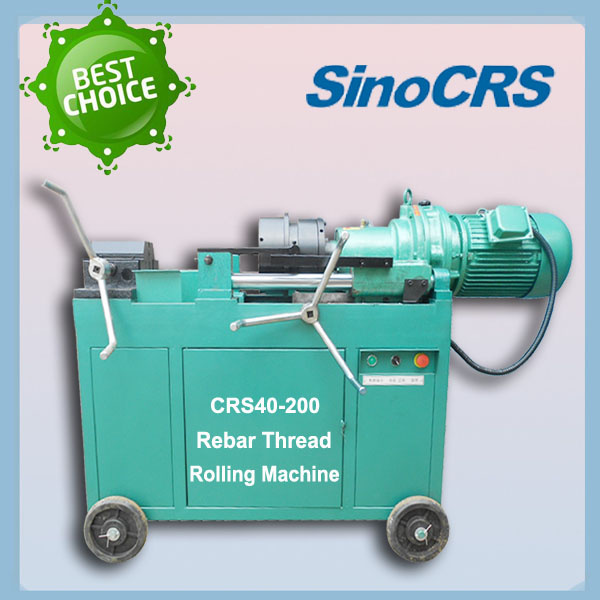

| CRS40-200 | 200mm | 400kgs | D16-40mm |
| CRS40-300 | 300mm | 400kgs | D16-40mm |
| CRS40-400 | 400mm | 400kgs | D16-40mm |
Spare parts
1-roller; 2-thread head gear; 3-cutting blade; 4-eccentric shaft; 5-work spanner; 6-leading bush; 7-testing bars
Advantages
1. High precision threads.
2. High connection strength.
3. Quick and easy operation to shorten construction period and lower the cost.
4. High efficiency, less material waste; weatherproof.
5. Spare parts could be provided for life long time.
6. Strong design capability. We could customized machine as your requirements.
Specialized in producing rebar splicing products and machines, like rebar coupler, rebar threading machine, rebar straightening and cutting machine, rebar bending mahcine, rebar upsetting machine and relevant spare parts, such as rebar caps, rebar clips; etc. Our products are popular both in domestic and overseas markets. Global markets like Vietnam, India, South Korea, Singapore, Indonesia, Thailand, Malaysia, Iran, Mexico, Brazil, Ghana; etc. We are always committed to providing professional service and products with competitive price to our customers.
