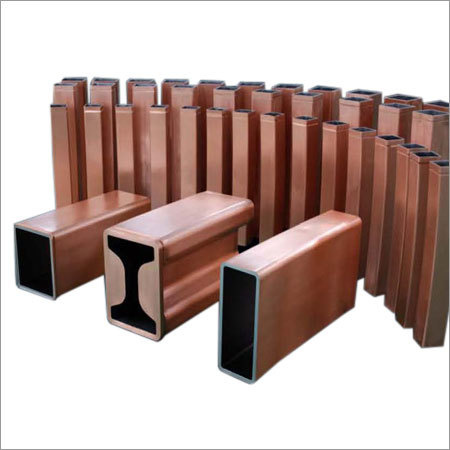

Rectangular Slab Crystallizer Copper Tube, copper mould tube, Rectangular Copper Mould Tube
China copper mould tube for CCM, We professional in design and produce billet CCM(continuous casting machine)
Strand from1-8
Copper mould tubes:
(1) Billet copper mould tube(60x60mm-650x650mm)
60x60, 90x90, 100x100, 110x110, 120x120, 130x130, 140x140, 150x150, 160x160, 200x200, etc.
(2) Rectangular copper mould tube: 135x430 to 365x600mm
135x430, 150x180, 150x220, 130x240, 160x200, 365x600 etc.
(3) Round copper mould: (Dia 80-900mm )Dia 80 160, 210, 270, 300 etc.
Design: Single taper, double taper, multi-taper, parabolic, double parabolic etc.
Copper mould plate: CSP plate, Ftsc plate, Beam blank and build-up plate and its maintenance
Specification: From 10mmx850mm to 3600mm x1000mm
Thickness: 40mm-55mm
Material: SF-CU,CuAg, CuCrZr Coating: Nico, Alloy coating, Cermic coating.
Mould assembly: 120x120, 260x300, 180x400, 60x300, 120x120, dia 270 etc.
D. Z. H. -the most professional and reliable supplier of copper mould tube for continuous casting machine which has exported copper mould tubes for 10 years.
Copper mould tube manufacturers, copper mould tube suppliers, D. Z. H.
|
Speccification |
|
Types |
Size |
Camber Radius |
Thickness |
Length |
|
Square tubes |
50x50 – 500x500 |
4000-17000 |
6-50 |
700-1000 |
|
Rectangular Tubes |
100x340-500x650 |
4000-17000 |
6-50 |
700-1000 |
|
Round Tubes |
110-1200 |
5000-17000 |
10-50 |
700-1000 |
|
H-Beam Tubes |
70x50-120x520 |
6000-17000 |
12-50 |
780-1016 |
|
Non-standard tubes |
70x50-120x520 |
6000-17000 |
12-50 |
780-1016 |
We are a professional company engaged in supplying consumable items for steel mills, cement mills and mines. Our business line includes rolling mill rolls and copper mould tubes for continuous casting, safety helmets, grinding steel balls and ingots mold etc.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the best quality at the reasonable price.
Our Values:
Our core values are simple and based on a passion for the following:
Customer Satisfaction
Integrity
Teamwork and people development
Safety and environmental responsibility
Innovation and creativity
Our Commitment:
To establish excellent ongoing relationships with our clients through dependable on-time delivery, superior quality, effective communication and partnerships built on developing long term relationships.
Due to the strict adherence to the quality management, team hard working, spirit of dedication, vertical integration of supplying and customized services, our company is growing steadily and our products have been distributed to the countries spread around the world. We have built up a world-wide reputation for carrying out both domestic and overseas markets.
