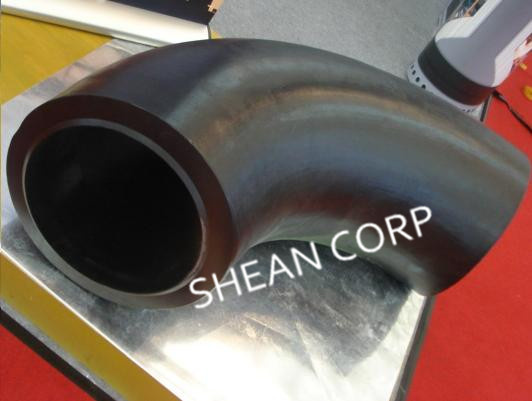

Reducing Elbow
Shean (Cangzhou) major products: Pipe fittings like: Reducing Elbow, Street Elbow, Carbon Steel Elbow, pipe fittings machines like Medium Frequency Power Source, Automatic 3D Bending Machine, Hydraulic Machines.
Specification of Reducing Elbow:
1. Varieties of Reducing Elbow: SGP, STD, SCH40, SCH80, SCH160,
2. Standard of Reducing Elbow: ANSI B16.9 / 16.28, ASTM A53/A106, API 5L, ASME B36.10M, 1996, DIN2605 / 2615 / 2616, JIS P2311/2312
3. Reducing Elbow size from 1/2" to 48"
4. Material of Reducing Elbow: Carbon Steel, Alloy Steel, Stainless Steel
Shean(Cangzhou) corp ltd Reducing Elbow adopts special design. All the production process are made according to ISO9001: 2000 strictly.
Welcome to our company for more infomation of Bending Steel Pipe Elbows. Once cooperate, we always friends.
Norminal Pipe Size
DN |
Outside Diameter at Bevel
D |
Center to End |
Center to Center |
Back to Faces |
45°Elbow H |
90°Elbow F |
180°Elbow P |
180°Elbow K |
series A |
series B |
Long Radius |
Long Radius |
short Radius |
Long Radius |
short Radius |
Long Radius |
short Radius |
15 |
21.3 |
18 |
16 |
38 |
-- |
76 |
-- |
48 |
-- |
20 |
26.9 |
25 |
16 |
38 |
-- |
76 |
-- |
51 |
-- |
25 |
33.7 |
32 |
16 |
38 |
25 |
76 |
51 |
56 |
41 |
32 |
42.4 |
38 |
20 |
48 |
32 |
95 |
64 |
70 |
52 |
40 |
48.3 |
45 |
24 |
57 |
38 |
114 |
76 |
83 |
62 |
50 |
60.3 |
57 |
32 |
76 |
51 |
152 |
102 |
106 |
81 |
65 |
76.1(73) |
76 |
40 |
95 |
64 |
191 |
127 |
132 |
100 |
80 |
88.9 |
89 |
47 |
114 |
76 |
229 |
152 |
159 |
121 |
90 |
101.6 |
-- |
55 |
133 |
89 |
267 |
178 |
184 |
140 |
100 |
114.6 |
108 |
63 |
152 |
102 |
305 |
203 |
210 |
159 |
125 |
139.7 |
133 |
79 |
190 |
127 |
381 |
254 |
262 |
197 |
150 |
168.3 |
159 |
95 |
229 |
152 |
457 |
305 |
313 |
237 |
200 |
219.1 |
219 |
126 |
305 |
203 |
610 |
406 |
414 |
313 |
250 |
273.0 |
273 |
158 |
381 |
254 |
762 |
508 |
518 |
391 |
300 |
323.9 |
325 |
189 |
457 |
305 |
914 |
610 |
619 |
467 |
350 |
355.6 |
377 |
221 |
533 |
356 |
1067 |
711 |
711 |
533 |
400 |
406.4 |
426 |
253 |
610 |
405 |
1219 |
813 |
813 |
610 |
450 |
457.0 |
478 |
284 |
686 |
457 |
1372 |
914 |
914 |
686 |
500 |
508.0 |
529 |
316 |
762 |
508 |
1524 |
1016 |
1016 |
762 |
Shean (Cangzhou) Corp Ltd registed in 2011, production line started in 1994. Has technician 10 persons, workers 50 persons, sale clerk 12 persons. For years, Shean helps heavy industrial enterprises gain huge profit domestic and abroad. Shean started foreign business since 2008 as while as good domestic sales. In 2014, Shean will creat another workshop as showroom of various machines running and head office will move to Cangzhou City with 900 square meters.
Our main scope for making and sells are: Induction pipe bending machine, Elbow forming machine, Tee machine, Hydraulic press, Pipe fittings, elbows, tee. "good products and complete after sale service " is our core principle.
Product covers all over the world, like USA, England, Russia, Turkey, India, Poland etc.
Welcome you visit Shean (Cangzhou) Corp Ltd.
