Product Features
Fitting body and nut for air hose
Brass for resistance to corrosion
Connection for hose with 1/4" ID and 3/8" OD on one end and a 1/4" male rigid NPT connection on the other end
Maximum pressure rating of 300 psi
Temperature range of -40 to +250 degrees F
Product Description

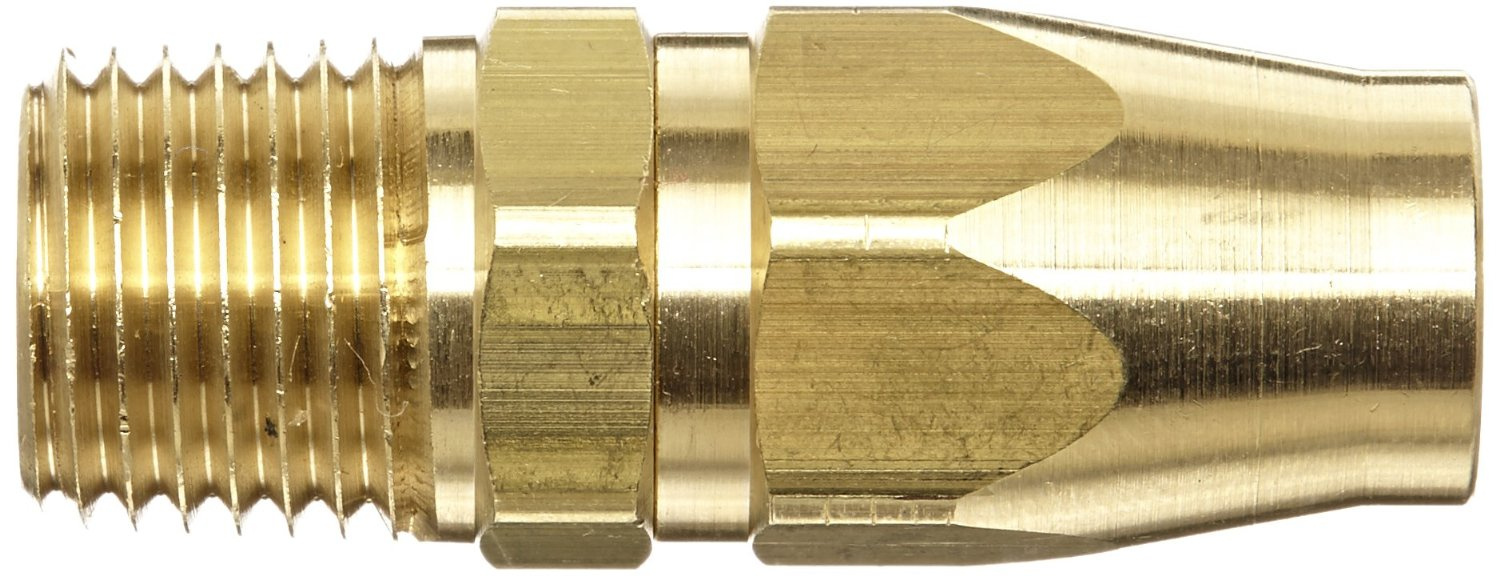

Boss1111 reusable replacement fitting consists of a fitting body and nut for installation onto an air hose using only two wrenches for quick field repair. The components are made of brass for resistance to corrosion. One end fits a hose with a 1/4" inside diameter (ID) and a 3/8" outside diameter (OD), and the other end is a 1/4" male, rigid (non-swivel) National Pipe Taper (NPT) threaded connection for a female fitting. The unit has a maximum pressure rating of 300 pounds per square inch (psi) and a temperature range of -40 to +250 degrees F. This reusable hose fitting set is suitable for use with Flexeel and Flexcoil hose (not included).
Hose fittings connect, control, change the direction of, and terminate the flow in piping and hose systems. They are made of brass, stainless steel, galvanized steel, and other materials that resist corrosion, pressure, and wear. Hose fittings have various types of connections, including threaded, barbed, push-to-connect, dry disconnect, and others including those based on internationally-accepted specifications. Hose fittings are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation.
Meium | Size (inch) | Thread | Material | Logo |
water | 1/4 | NPT | Brass | BOSS |
gas | 1/2 | PT | Alloy | Customers |
air | 3/8 | GB | Stainless steel | END USERS |
* Free samples without freight
* mold fee will be refunded for the 1st order
* NO MOQ request
*OEM are welcome
Boss was set up in 2009 in Wuxi, it takes 1 hour from Shanghai Railway station to our factory.
Business scope: Vavle and pump develope, manufacture, sell and service.
Looking for abroad companies agent biz
Advantage:
1, CNC machines 20 sets
2, production lines: 4
3, CE, asme products
4, follow Germany and Italy technology
5, 3 stores and 2 factoreis
Company Policy: Honest, Service, Quality
Welcome to your visit warmly.
