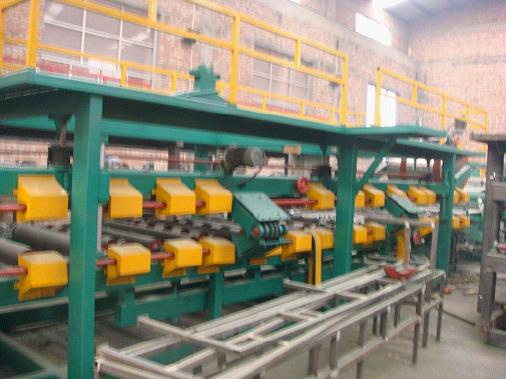

Rock Wool Sandwich Roof Tile Molding Machine

Rock Wool Sandwich Roof Tile Molding Machine
Price: US $ 30000/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: T/T
1. CE certificate No: CMHB1203200958
2. Automatic cutting for length, automatic punching
3. Voltage: 380V /50Hz /3 phases or at buy
Product standard

1. Product appearance.
Board: Board face level off, the color and luster is even, without obvious protruding sunken, warping deformation.
Surface: Surface cleaning, no glue mark and contamination, no significant scratches, collision. Incision: Straight incision, plate edge without obvious rake angle, come unglued or wavy, incision should be bent inwards bag

2. Bonding quality
Bond strength should be greater than 0.1 Mpa.
Color steel and EPS bonding area of many and 85%, stripping test EPS should be grouted and examples of the plate area with a lot of 80%, and uniform distribution. Socket board inserting part should be no glue area.

Dimensional deviation

Project Length width thickness diagonal
<3000 >3000 <6000 >6000
<5 >5 ± 3 ± 2 <5 >5

Constituent  parts

coiler,   roll  forming  machine,   composite  mainframe,   cutting  parts,   find  product  rack

Forming  size:

45000*3000*2800

Feeding  width

1000mm/1200mm

Main  motor  power

32KW

Working  speed

0-4.05m/min

Equipment  weight

20T

Electrical  system

PLC  Taiwan  Delta

Rolling  thickness

0.3-0.8mm

Power  source

AC380V/50-60HX

Decoiler

Bearing  5-7tons

Number  of  forming  rollers

13rows

Thickness  of  chain

0.6  inches

Out  diameter  of  shaft

70  mm

Middle  plate

12mm

Big  frame

300  channel  steel

composite  mainframe

Squar  Steel  tube  80*160  Glue  shaft:   150    19roots

Prod Model: SB sandwich roof tile molding machine
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type Of The Machine: Commonly Used Models or Custom-Made
Control System: Full Automatic Control System with PLC
Shearing System: Hydraulic Shearing
Language System: Both English and Chinese
Suitable For The Rolling Plate: PPGI, Galvanized Steel, Lead Plate, Stainless
After Service: One-Year Warranty, Life-Long Maintenance
Botou Shibo Machinery Manufacturing Co., Ltd. Founded in 2001, specialized in Design, Manufacture, Installation, Debug of Color Steel Roll Forming Machine, is a private enterprise. With many years experience, we have developed many new products of Profiling Equipment, which rich the Color Steel Profession, make our machinery more reasonable, artistic and practical and obtain the consistent high praise of the new and old customers

Our company specializes in producing and designing each kind of roll forming machine such as roll forming machines for metal roof tiles, wall sheets. While consummating the old model, with the continuous efforts of our scientific researchers, our company developed one after another of Automatic Cutting and Punching C-Type Steel Roll Forming Machine, automatic cutting and punching Z shape roll forming machine, the production line of Glazed Tile Machine in the style of antiquity, Automobile Panel Machine, Guardrail forming machine, shutter door forming machine, which have the advanced technical level

Our equipments keep a foothold in the domestic market, at the same time, we develop international market actively. Having exported our equipment to Europe, Africa, Russia, Burma, Pakistan, Sri Lanka, Uzbekistan and other countries and regions, and we have received praise from the foreign customers.

The service aim of our company persistence "the quality first, the prestige first" we wish to build the best machine for customers. So our company all employee's enthusiasm welcome the people of different walks of life comes the investigation, talks cooperation
