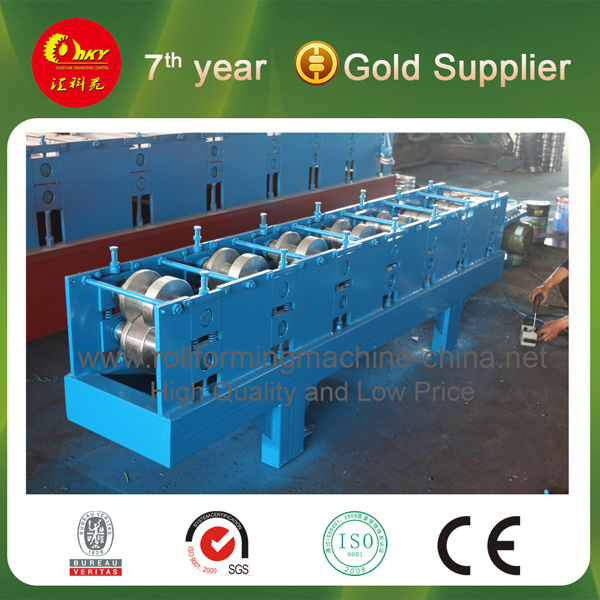

Steel Sheet Shutter Door Roll Forming Machinery
Technology Parameters
1 Main motor power: 5.5KW
2 Hydraulic station power: 4KW
3 Hydraulic oil pump: CB-E310
4 Sprocket: P-25.4
5 Roller station: 13
6 Yield strength: 32MPa
7 Diameter of principal axis: 90MM
8 Material of roller: 45#steel hard chrome plating
9 Processing speed: 8m/min
10 Thickness: 0.3-1.2mm
11 Installation dimension about(L*W*H): 7.2M*1.3M*1.5M
12 Total weight: 4.2T
13 Equipment parts: Roll forming system, hydraulic system, PLC frequency conversion control system, counter, cutting system, decoiler.
Material of main equipment:
(1) Roll material: High grade NO. 45 forged steel, plate hard chrome on the surface of roller with thickness 0.05mm.
(2) Active shaft material: High grade No. 45 carbon wrought steel at diameter 90mm
(3) Cutter blade: Cr12 mould steel with quenched treatment
(4) Producing flow:
Decoiling the sheet— Sheet guiding— Roll forming— Measure length— Cutting the panel— Panels to the supporter
We are professional manufacturer of roll forming machine, we can also produce as per your requirement!
Welcome to visit our factory!
Skype online: Sunny. Machinery
Machine specification |
|
Electric power |
5.5 kw - 7.5kw (3 phare,50hz,380 v) |
|
Weight of machine |
≈ 7.0 - 10 tons ( depend roofing style ) |
|
Machine dimension (L x W x H) |
10m x 1.8m x 2.0m |
|
Station quantity |
17 - 30 |
|
Raw material |
|
Thickness of steel |
0.45 mm – 0.7 mm (BMT) |
|
Width of coil |
762 - 1219 mm |
|
Material |
PI & PPGI (galvanize, zincalume, color coating steel) |
|
Max. strengthen of material |
G300-350 |
|
Output |
|
Profile of roofing |
Follow customized drawing |
|
Production specification |
|
Rolling speed |
20-30 m/min |
|
Control system of machine |
PLC , fully automatic programmable |
|
Rolling transmission & Cutting system |
Hydraulic |
|
Cutting system |
Automatic cutting by Exit cutting and entrance cutting with two encoder in rear and front. Entrance cutting use for cut to length. |
|
Tolerance of lengths |
± 2 mm |
|
Tolerance revision |
Setting by Touch screen |
|
Oder length and quantity |
Multi-group input (ten orders) |
