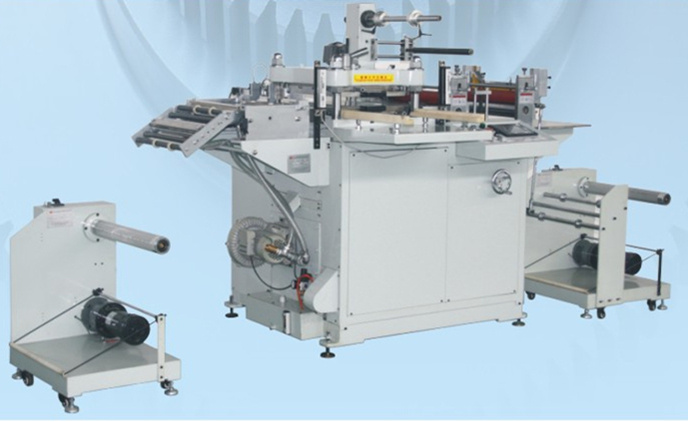

Main characteristics of Flat Bed Roll to Roll Die Cutter:
This Flat Bed Roll to Roll die cutting machine die cuts through flat pressing and high precision unit while shifting materials and slitting are controlled through servomotor. The printing Abel's two-faced and Lengthways the color marks from three optics electric eyes to have exquisite tracking to locate, die cut, collect the discarded waste, slit or auto label in one processing. It is very applicable to die cut free paper adhesive tape, Dacron film trademark and laser anti-false trademark. It is ideal equipment for soft printing machine, continuous thread printing machine. Intaglio printing machine and anti-false trademark die press machine and is also the most efficient equipment for whole wheel rotation quick roll trademark printing machine. It is also applicable to die cutting to form for the Electronic and adhesive tape sectors.
Technical Parameter
Cutting speed 20-135(time/min)
Max web width 320mm
Max mould cutting width 290mm
Max unwind diameter 500mm
Max mould cutting length 300mm
Overprint Precision ±0.1mm
Total power 2.2KW
Power voltage 220V±10%
Machine weight About 1500kg
Overall dimensions(L×W×H) 2800×1100×1600mm |
Kunshan Dapeng Precision Machinery Co., Ltd is specialized in manufacturing high precision die cutting machine, sheet cutter, slitting machine, laminating machine, belt cutting machine and related machinery equipment. Our products are widely applied in laminating, slitting and die cutting for shield materials, sticky materials, insulating materials, conductive materials, electronic materials. Sizing cutting for strings, belts, rolls in bag line, shoe and cap line and plastic and rubber line.
We pride ourselves in our quality manufacturing processes and professional designs. With strong technology, international quality control system and perfect after-service, our products enjoy a Good reputation at domestic and international market. We own professional technical staffs, engineers, sales and after-service employees to be a Young and high caliber team.
At "Dapeng", we are confident that our hands on approach and direct involvement with out manufacturing assures our customers' Will get the best quality products available on the market today.
