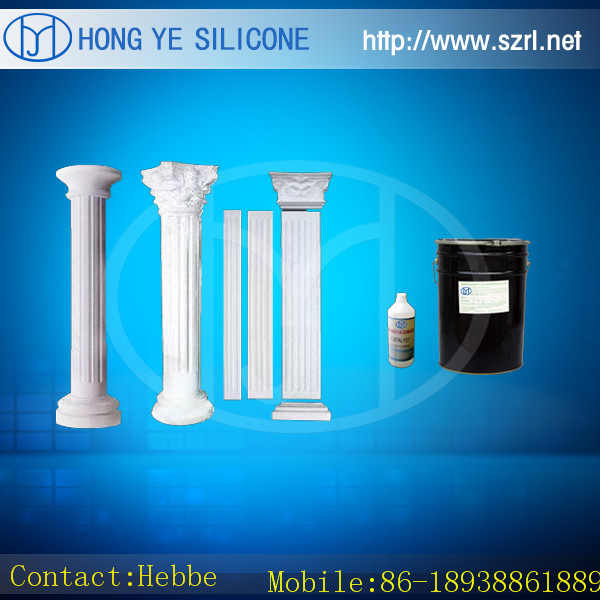

Roman Column Mould Molding RTV Silicone Rubber

Roman Column Mould Molding RTV Silicone Rubber
Price: US $ 10.5kg
Trade Terms: FOB,CFR,EXW
Min Order: 200kg
Pay Type: L/C,T/T,Western Union,Paypal
roman column mould molding RTV silicone rubber

Features of  roman column mould molding RTV silicone rubber :

1,easy to operate
2,Resistance to Chemical dielectric, anti-yellowing,
3,excellent insulation performa


Main applications of roman column mould molding RTV silicone rubber  :

RTV-2 is mainly used for making molds for duplications for the industries such as Poly resin, epoxy poly-resin, plaster crafts, soap crafts, candles crafts, lighting, architectural decorations, embossed furnitures, plastic toys, gifts and stationeries, large statues.



Features of our RTV-2 are low viscosity, good fluidity, high tensile and tear strength, produced by molds can be used repeatedly, longer life expectancy.



Operations  of roman column mould molding RTV silicone rubber  :

(1) Mixing:encapsulant and potting compound silicon is a kind of flowing liquid and it contains two parts. Part A is a kind of white flowing liquid and part B is the curing agent. Remember to mix part A and part B completely, otherwise the silicon rubber will be partially solidified and this will give birth to difficulties in your final operation. What's more, the finished moulds will meet a short life. All of these will cause a waste of silicon rubber.



(2) Vacuum pumping: After finishing the first step, then go to the vacuum pumping . Usually, there will be some air bubbles in the mixture during the mixing process working. So after the first step after finishing handling of the original mold, we need come to the vacuum pumping process.This step is better for taking less than 3-5 minutes. Otherwise, it will cause cross linking reaction, and no more further steps will be available.



(3) Brushing cast or Perfusion Molding operation

a.Carefully wash the original mold , then dry it with an air gun. Then brush some release agent such as soap water, detergent,vaseline,liquid wax ,etc..

b. Evenly brush the mixed silicon rubber on the product which is covered with mold spray with a brush or a brush pen.

c. After the cross linking reaction (about 30 minutes), brush a second coat which can increase the tension and tear strength of the mold.

d. Cover a glass cloth on it after another 30 minutes of a second cross linking reaction, and use a brush pen or a brush to avoid any interstices.

e. Cover a third coat.

 (Note on  building silicone mold for gypsum cornices: if you have high requirements for the tension and the tear strength for the mold, please repeat step c and step d. Hence, the finished silicone moulds will have a good quality and a longer life, which can help you save cost and increase production efficiency.)



(4)Operations for the external mold encapsulant and potting compound silicon:

a. Make a square frame with four pieces of wooden boards or rubber plates, then place the product which is covered with the finished silicon rubber mould in the middle.

b. Slowly and evenly perfuse the gypsum into the square frame. Also you can brush the resin on the product which is covered with the finished silicon rubber mould with a brush or a brush pen. Repeat this process two or three time after the cross link reaction.



(5) Pouring moulding:

It is suitable for simple products with the smooth surface. Without any mold lines, which helps you save time and is easy for operation. Evenly and slowly perfuse the mixed silicone rubber into the square fram. After the cross linking reaction and the silicone rubber turns dry,you can take the products out. Thus, the mold has been done.

(Note:we usaully use soft silicone rubber to make molds by perfusing, which is easy for demoulding and will not damage the product in the silicone molds.)


Datasheet:

ModelColorMixing ratio (%)Pot life (mins,
under 25ºC)
Curing time
(hrs,under 25ºC )
Hardness  ( Shore A )Tensile-
strength  (MPa)
Tear-
strength (kN/m)
Viscosity
(After A/B mixed ,mPa.s)
Shrinkage
rate (%)
Elongation
(%)
HY-640White2-330-404-540±2
3.5±0.5


17±2


15000±5000

0.3%   150%

Call Us Anytime With Questions About Your Application.

More information , pls feel free to contact Ms Hebbe:
Tel:
(00) 86-755-89948006

Mobile :86-18938861889

Prod Model: HY-642 silicone rubber for mold making
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: Translucent/White
Certifications: RoHS.SGS ISO9001:2000
Brand: Hong Ye Silicone Rubber
Application: Silicone Rubber for Mold Making
MOQ: 200 Kgs
Shelf Life: 1 Year
Sample: Available
Material: Silicone Rubber
Appearance: Liquid
We are manufacturer spcializing in silicon rubber material, such as silicone gel, pad printing silicon, RTV-2 silicone rubber, HTV, RTV-2 room temperature sulfurated silicon rubber, silicon, shoe molding silicon, silicon rubber, manul molding silicon, liquid silicon rubber, LSR, pad printing silicone rubber, mixed iron-smelting silicon rubber, solid silicone rubber, methyl-ethenyl silicone rubber, molding silicone rubber, mold duplicating rubber for resin craft makers, special silicon for manual molding, shoe mold rubber, pad printing silicon, silicon oil, 107 base, DMC etc. For plastic toys factories. With a product line of tens of categories, we can offer quick copying with precise contraction ratio (up to two thousandth) for mold making. To reach the internationally leading quality standard with competitive price is our best ambition that merits your trust.

RTV-2 Mold making silicone rubber

[1] RTV-2 silicone rubber for mold making

RTV-2 molding silicone rubber mainly applicable to make the silicone mould for cultural relic duplication, architectural decoration, resin crafts, lighting ornaments, candles, statues, model design, product exploitation, etc.

[2 ]RTV-2 silicone rubber for pad printing

Pad printing silicon rubber is specially designed for silicon pads which requires to be exquisite, without impurity or granules. Silicon pad is a carrier which transfer printing the patterns on the steel plate onto the toy products' Surface. Pad printing silicone rubber is mainly used for printing irregular patterns of plastic toys, electroplating products, electronic toys, trademarks.

[3] RTV-2 manual mold silicon rubber

RTV-2 manual mold silicon rubber is mainly applied in manual mold design, PVC plastic mould, cement product mould, melting-point alloy mould, alloy toy crafts, plastic toy, craftwork, gift and stationery, big statue, cultural relic duplication, shoe sole mould production, pad printing orientation, electronic appliances vibration resistance, etc.

[4] HTV-2 Silicone rubber

HTV-2 silicone rubber is applied in metal crafts, hot stamping silicone roller, hot stamping silicone plate, mobile phone keycap, PC keycap, telephone keycap, TV remote control keycap, electronic products, silicone rubber products field, etc.

[5] Disc silicone rubber

Disc silicone rubber is mainly applicable to zinc aluminum alloy arts and crafts, imitation of gold and silver ornaments, fishing tools, bracelets, hanging ornaments, furniture fittings, decoration accessories, toys and gifts, etc.
