Corrugated sheet machine pvc corrugated sheet extrusion machine
PART 1 INTRODCUTION ANDAPPLICATION:

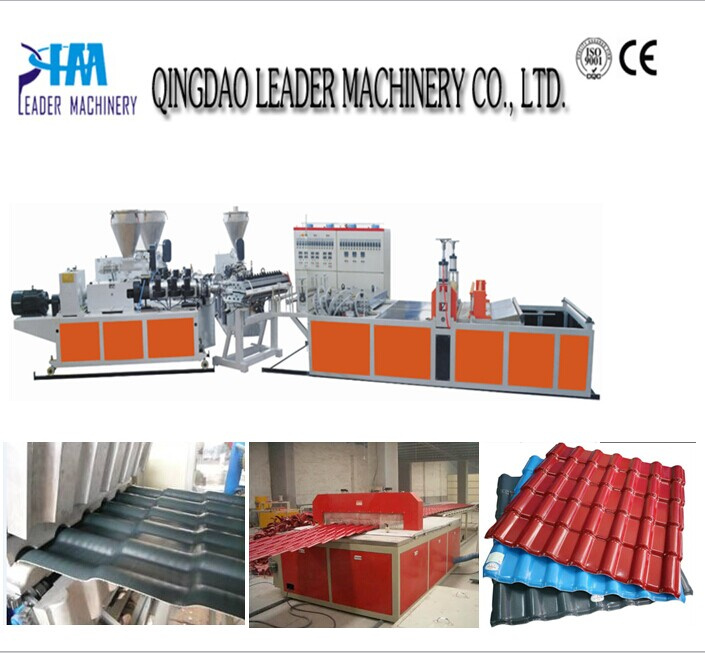

Pvc/pp corrugated roofing sheet extrusion line designed and produced by Leader Machinery can continuously produce various-shape roofing sheets with corresponding shaping moulds. This complete plant includes: high speed mixer, conical twin screw extruder, T-type die head, corrugation forming moulds, haul off machine, cutting device and stacker etc.
This roofing sheet has an excellent corrosion resistance, weather resistance, easy processing, low cost and many other characteristicsm abd is widely used for roof material of workshops, warehouses.
PART 2 FEATURES OF THIS LINE:
1. Extruder: single-screw extruder PP / PE / PC, conical twin-screw extruder PVC.
2. T die head: The hanger-type flow structure, a suitable compression ratio to ensure the stability of material flow evenly.
3. Calibrating molds: rational design, the unique design of the cooling flow to ensure the accuracy of products,
4. Hauling machine: roller traction, using high quality NBR rubber roller, pneumatic adjustment, and frequency speed adjustment.
5. Cutting Machine: Knife cutting, fast, good accuracy.
PART 3 MAIN TECHINICAL DATA:
Sheet size | Width( mm) | 900 | 1130 | 1200 | 1300 |
| Thickness(mm) | 0.8-3 | 0.8-3 | 0.8-3 | 0.8-3 |
| T-type Die head | Die head width | 1050mm | 1280 | 1350 | 1450 |
| Shape waves | Round waves or trapezoidal waves |
| Max extruder | SJ-65/132 or 80/156 | SJ-80/156 |
| Max output | 250-300kg/h | 350-400kg/h |
| Drive motor | 37kw/55kw | 55kw/75kw |
PART 4 DELIVERY, PAYMENT AND OTHERS:
1. delivery time: 60 days after receiving the deposit
2. payment terms:30% for the prepayment by T/T and 70% for the downpayment by T/T before delivery or irrevocable L/C at sight can be available, too.
3. Packing details: wooden pallets and cases with stretching films
4. Guaranteed time: 18 months for the machenical parts and 12 months for the electrical parts.
5. Service: we will send 1-2 engineers to customers' factory to help them install, test the machine and also train their workers, but customers should bear the round tickets, accommodation, and salary etc.
Qingdao Leader Machinery Co., Ltd is an experienced and professional manufacturer of plastic extruder and extrusion lines for years. We can produce various equipments, including plastic pipe extrusion lines, plastic profile extrusion lines, plastic sheet/plate extrusion lines and also some recycling and pelletizing machines etc. According to different requirement s of each customer, our engineers will provide most professional mechanical design and manufacturing, and the complete processing technology to meet their special application requirements.
Since foundation, we have been dedicated to study and research new products, new processing technology to satisfy the updating requirements of the world, and also we continuously digest and learn from the world advanced science technology and leading process. We are always standing firm ahead domestically in the plastic-extruder field as the pioneering representative. With years of experience in design and fabrication, we newly developed LM series extrusion lines, which realized the high efficiency extrusion idea "high precision control, high efficiency production, high quality production".
Through ISO9001-2008 quality certification, CE certification, SGS certification and GOST certification for Commonwealth of Independent States, strict following the standards of modern enterprise, the overall strengthening and the effective management of production, procurement, technology, and after sale service. We win the market by high quality products and services. At present, products have been exported to the US, Korea, Russia, Ukraine, Kazakhstan, Hungary, UAE, Turkey, Iran, Saudi Arabia, South Africa, Libya, Algeria, India, Nepal, Bangladesh, Mexico, Argentina, Chile and other countries and regions, praised by customers.
