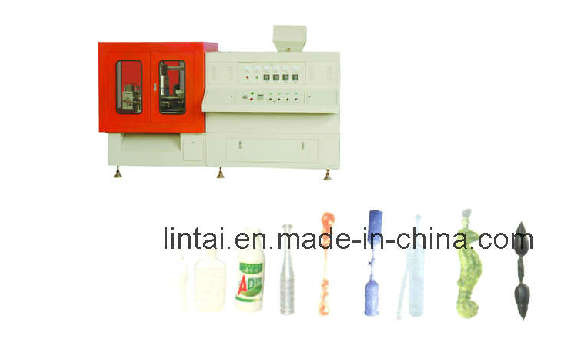

This machine can be used to make plastic package which is blew form side, such as bottles for medicine, juice, drink and cosmetics. It adopts screw extruding blow molding process which is frequency converted and automatic temperature controlled.
As a combination of electric equipment, pneumatic device, and machinery, it is stable in performance, easy to operate, and suitable for manual production. Three patented techniques are used on this machine which is optional to install automatic tailing device, automatic net changer, and automatic mouth-cutting device.
|
Parameters\ model |
4 station combine model 45 |
6 station combine model 55 |
8 station combine model 65 |
|
Max. volume of bottle |
500 |
800 |
1500 |
|
Max. diameter of bottle |
7 |
9 |
10 |
mm Size of mould
(Lx W x H) |
120x120x300 |
120x120x300 |
120x120x300 |
|
Screw diameter |
45/55 |
55/65 |
65/75 |
|
Screw L/D ratio |
|
25:1 |
|
|
Motor power(KW) |
5.5/7.5 |
7.5/11 |
11/15 |
|
Heating power(KW) |
3 |
5 |
8 |
|
Air comsuption(m³/min) |
|
0.4 |
|
|
Plastcizing capacity(Kg) |
25/40 |
40/60 |
60/75 |
|
Weight(kg) |
1500 |
1800 |
2000 |
|
mm Size(L x W x H) |
3400x1600x1740 |
3600x1700x1800 |
3800x1750x1850 |
|
Applicable raw material |
PE/PP/PVC |
|
Speed regulating mothod |
Frequency control of motor speed |
|
Theoretical Output(pcs/h) |
200-8000 |
Qingdao Lin Tai International Trading Company Limited is a comprehensive foreign trade company Located in center of Qingdao City, Shandong Province, China. Established in year of 2005.
Qingdao Sea Port is the second biggest container sea port in China and Qingdao Liuting International Airport has many flights Daily connected with all the main cities all over the China and world.
We are mainly marketing:
1) Different capacity of Injection Machines.
Our injection machines can make PP, PE, PET, PP-R, UPVC, Dailly use items etc. Products by using different moulds.
2) PET Semi-auto blowing machines.
These PET blowing machines can make different volume PET containers such as water bottle, Juice bottle, 5 gallon water Jar, Candy jar etc.
3) Automatic PE Blowing machines.
These blowing machines can make different volume PE containers such as Juice bottle, Milk Bottle, Ice pop Containers...., The filling temperature can be over 100 degree.
4) Plastic sheet making machine.
5) Plastic cup forming machine and printing machine.
6) Water treatment Plant.
7) Water, fruit juice, Carbonated beverage Production Line. Different capacity.
8) Mango pulp production line.
9) Pineapple pulp production line.
10) Pineapple concentrate production line.
11) Automatic Custard Cake production Line. Production Capacity can be 8 Tons daily.
12) Cookie Production Line.
13) Lollipop candy production line.
14) Hard candy production Line.
15) Xylitol Chewing Gum Production Line.
16) Glass bottle, PET bottle, PE bottle, top aluminium foil paper sealing machine.
To keep the products long shelf life.
17) Automatic Cap moulding Machine. (Cap Diameter --22mm, 28mm, 32mm).
18) Automatic Cap printing Machine. --One color and two color.
19) Nitrogen gas generation machine.
For packing fried food, pop food, cake, fresh food to keep them long shelf life and fresh.
20) Aluminium foil paper.
21) Carrageen and Jelly Powder and food additives.
22) Candy wrapping paper.
23) Automatic wrapping machine.
For wrapping the paper box ---- water proof.
24) Automatic Labeling Machine.
25) Automatic PE shrinkage Packing Machine.
26) Rotary oven baking machine.
For baking Cake, Cookie, Bread...
We have many years experience in this field, We can supply high quality prodcuts with competitive price to the customers.
We have exported the prodcuts to many countries and successully.
Best Quality, Best Price And Best service are our company principle.
We are willing to establish win-win business relationship with the friend and customer from all over the world.
