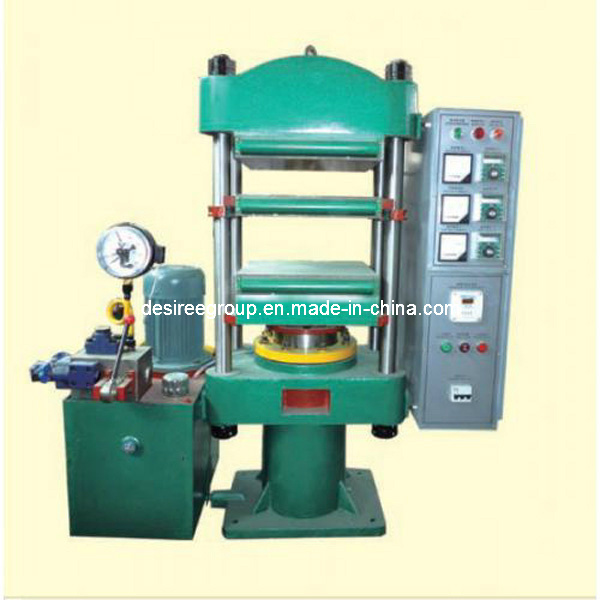

Rubber Band Making Machine
Function:
1. Used for pressing all kinds of rubber model products, rubber plate, thermosetting plastic.
2. Used as common hydraulic machine.
Features:
1. Mainly consists of main machine, hydraulic system and electrical system.
2. Column type, with bottom hydraulic cylinder.
3. Adopts hydraulic drive, electric relay control, the curing time and pressure can be adjusted.
4. The oil tank was arranged at the left side, avoid of the influence of hot platen temperature.
5. Can provide hand control and electric control as customer's request.
6. There are two kinds of heating method for hot platen, steam heating and electric heating.
7. The hot platen clearance can be designed as per the size of product & mould.
Advantage:
1. Compact structure, less occupied area
2. High working pressure
3. High producing efficiency
4. Easy to install. Operation is safe and reliable.
WE CAN DESIGN AND MANUFACTURE NON-STANDARD MODELS AS PER THE REQUIREMENT OF CUSTOMERS.
Our Services:
1. One year warranty.
2. Technical support by email or call all the time.
Any demand, please feel free to contact with me.
|
Vulcanizing Press Type |
XLB-DQ400X400X2 |
XLB-DQ400X400X2 |
XLB-DQ600X600X2 |
XLB-DQ750X850X2(4) |
|
Total Pressure(MN) |
0.25 |
0.50 |
1.00 |
1.60 |
|
Plate Size(mm) |
400X400 |
400X400 |
600X600 |
750X850 |
|
Daylight(mm) |
125 |
125 |
125 |
125 |
|
Daylight No. |
2 |
2 |
2 |
2(4) |
|
Piston Stroke(mm) |
250 |
250 |
250 |
250(500) |
|
Unit Area Pressure(kg/cm 2 ) |
20 |
31 |
28 |
25 |
|
Main Motor Power(kW) |
3 |
2.2 |
2.2 |
3 |
|
Overall Dimension(mm) |
1300X800X1500 |
2400X550X1500 |
1401X680X1750 |
1900X950X2028 |
|
Weight(kg) |
1150 |
1300 |
3500 |
6500(7500) |
