Company management certification: ISO 9001:2000, ISO 17799, ISO 9001:2008, ISO 14001:2004, ISO/TS 16949
Our main products are plate vulcanizing press, two-roll mixing mill, rubber extruder, banbury intensive kneader, bale cutter, conveyer belt vulcanizing press, tyre reclaiming machines, rubber refiner, rubber cracker, etc. we especially specialize in the design and manufacture of the nonstandard products .
2.Description of machine:
1. This kind of machine is multi-functional beacuse it is suitable to be used for top opening double or triple mold plates.
2. High force employs dual pressure , and each oil system is designed seperately which makes it stable ,quiet and low frequency of malfunction when working. Two sides can be operated simultaneously.
3. The electric system adopt PLC programming control , which is easy to be operated.
4. Automatic in/out mold and ejector device, low labor strength.
5. Optional normal valve or proportional valve, advanced oil way matching, reduce energy consumption.
6. It is possible to adjust the speed of opening/closing the mold. It is very accurate and reliable.
7. Molds can be positioned precisely. A 100% safty design for position is avaliable to prevent molds from damaging.

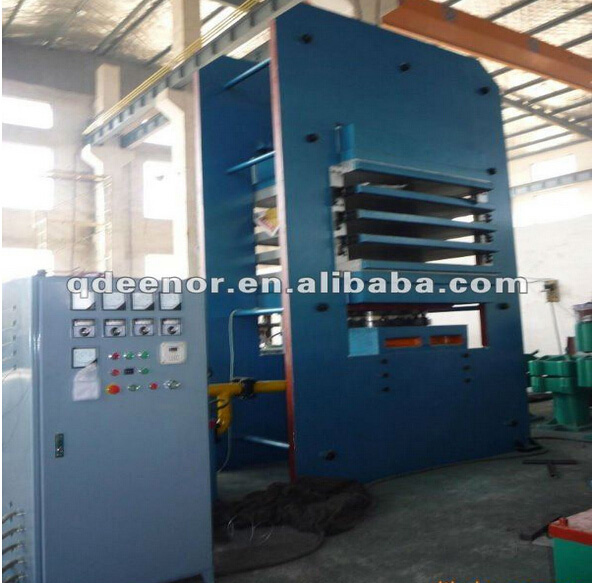

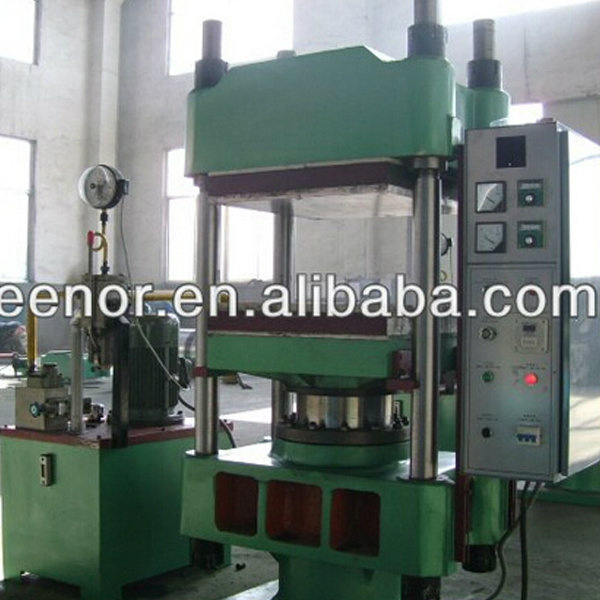

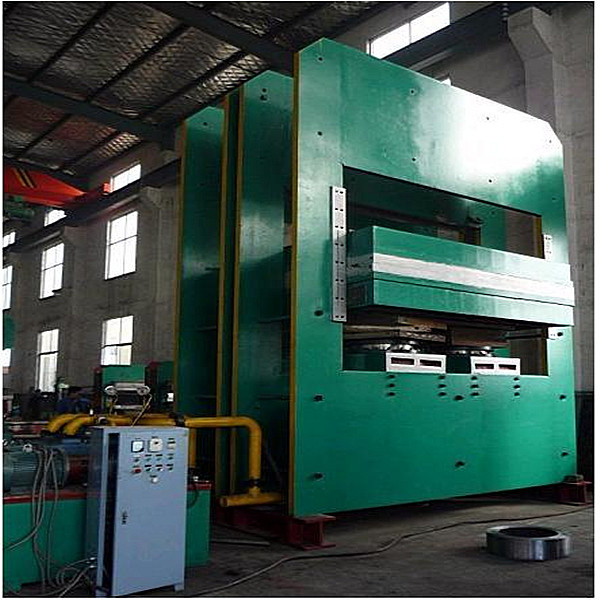

3.Pictures of rubber vulcanizing machine:
4.Certification of plate vulcanizing press:
| Item | Unit | D350× 350×2 | D400× 400×2 | D500× 500×3 | D700× 580×4 | D750× 640×4 | D1000× 600×4 | D1670× 2700×2 | D1500× 6000×2 | |
| Nominal force | mm | 250 | 500 | 630 | 1000 | 1600 | 2000 | 12000 | 24000 | |
| Master cylinder maximum travelling range | mm | 180 | 250 | 500 | 500 | 500 | 500 | 800 | 850 | |
| Layer | mm | 2 | 2 | 3 | 4 | 4 | 4 | 2 | 2 | |
| Level spacing | mm | 150 | 200 | 125 | 125 | 125 | 125 | 600 | 600 | |
| Max.pressure of liquid | MPa | 16 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Slide speed | Ascending velocity | mm/s | ≥20 | ≥20 | ≥20 | ≥14 | ≥12 | ≥10 | ≥10 | ≥8 |
| Return speed | mm/s | ≥20 | ≥18 | ≥18 | ≥40 | ≥20 | ≥20 | ≥25 | ≥25 | |
| Hot plate size | L-R | mm | 350 | 400 | 500 | 700 | 750 | 1000 | 1670 | 1500 |
| F-B | mm | 350 | 400 | 500 | 580 | 640 | 900 | 2700 | 6000 | |
| Thermal rating | kW | 5.4 | 7.2 | 9 | 27 | 40.5 | 40.5 | 45 | 45 | |
| Entire machine power | kW | 6.9 | 8.7 | 10.5 | 29.2 | 44.5 | 48 | 55 | 110 | |
| Organization form | Four columns | Four columns | Four columns | Four columns | Four columns | Board frame | Board frame | Board frame | ||
| Prod Model: | XLB-DQ1000x1000x2, XLB-QD1800x1800x1 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: | Blue, Green, etc |
| Series: | Rubber Vulcanizer Machine |
| Total Pressure: | 0.25-8.0 Mn |
| Piston Stroke: | 250-500 Mm |
| Plate Size: | 1500X1500 Mm |
| Plate Clearance: | 125 Mm |
| Sales Market: | 30 More Than Countries |
| Control Way: | Automatic PLC System |
| Working Layer: | 2-6 Layers |
| Type: | Tire Machinery |
| Certification: | CE, ISO |
