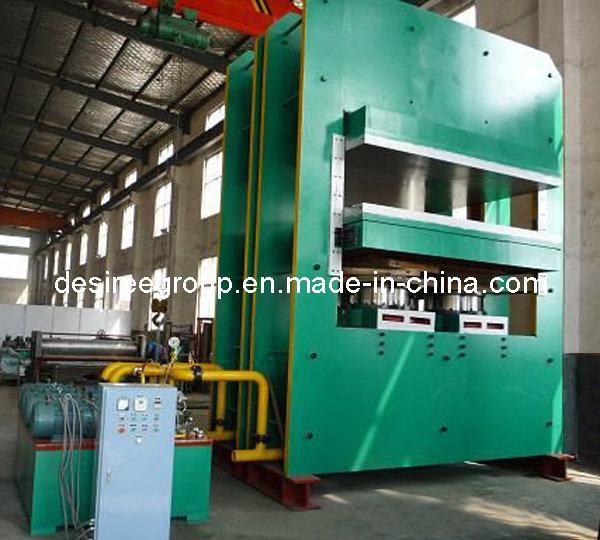

Making Machine / Rubber Doormat Making Machine
Function:
1. Used for pressing all kinds of rubber model products, rubber plate, thermostting plastic. Such as doormat, o-ring, seal and so on.
2. Used as common hydraulic machine.
Features:
1. Mainly consists of main machine, hydraulic system and electrical system.
2. Frame type, with bottom hydraulic cylinder.
3. Adopts hydraulic drive, electric relay control, the curing time and pressure can be adjusted.
4. The oil tank was arranged at the left side, avoid of the influence of hot platen temperature.
5. Can provide hand control and electric control as customer's request.
6. Heating method for hot platen: Steam heating
7. The hot platen clearance can be designed as per the size of product & mould.
Advantage:
1. Compact structure, less occupied area.
2. High working pressure
3. High producing efficiency
4. Easy to install. Operation is safe and reliable.
WE CAN DESIGN AND MANUFACTURE NON-STANDARD MODELS AS PER THE REQUIREMENT OF CUSTOMERS.
Our Services:
1. One year warranty and lifetime technical support.
2. Engineers available to service machinery overseas.
3. Any demand, we will give feedback within 24hours.
Any demand, please feel free to contact with me.
Welcome to make a field inspection of our factory.
|
Making Machine Type |
XLB-Q2000× 3000× 1 |
XLB-Q1400× 5700× 1 |
XLB-DQ1300× 2000× 1 |
XLB-Q1200× 2500× 1 |
XLB-Q1500× 2500× 1 |
|
Total pressure(t) |
1800 |
2800 |
560 |
750 |
1000 |
|
Plate size(mm) |
2000× 3000 |
1400× 5700 |
1300× 2000 |
1200× 2500 |
1500× 2500 |
|
Plate clearance(mm) |
400 |
400 |
400 |
400 |
400 |
|
Working layer number |
1 |
1 |
1 |
1 |
1 |
|
Piston stroke(mm) |
400 |
400 |
400 |
400 |
400 |
|
Plate pressure(MPa) |
3 |
3.5 |
2.15 |
2.5 |
2.66 |
|
Main motor power(KW) |
26 |
43.5 |
8 |
9.5 |
11 |
|
Overall dimension(L× W× H)(mm) |
2900× 3200× 2860 |
2400× 5800× 3600 |
2000× 1860× 2500 |
2560× 1700× 2780 |
2810× 1550× 3325 |
|
Weight(kg) |
66000 |
110000 |
17000 |
20000 |
24000 |
