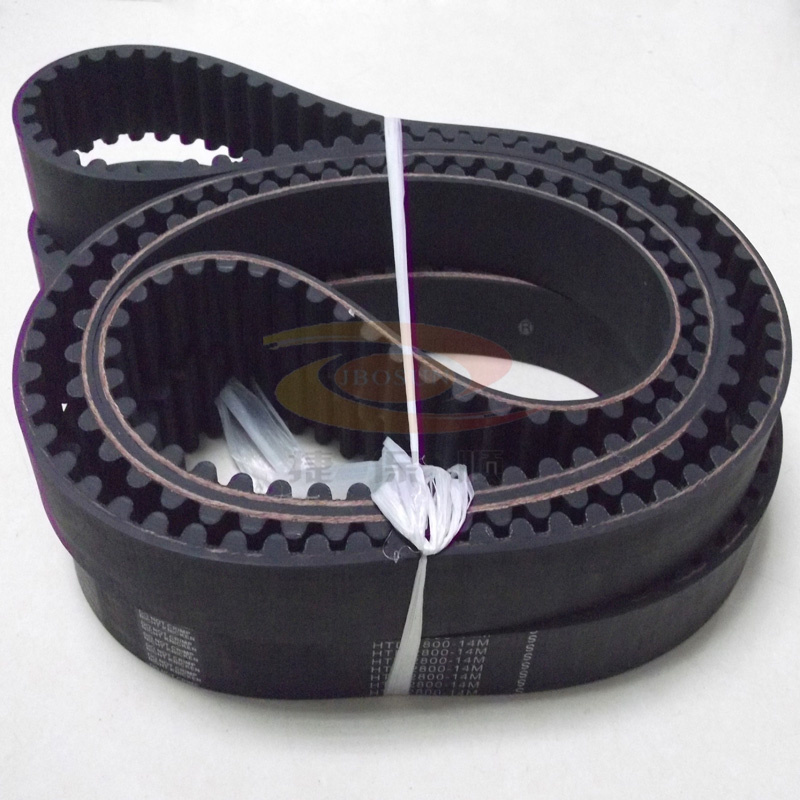

Rubber Endless Timing Belt for Sewing Machine
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
2/Piece |
| Pay Type: |
T/T,Western Union |
Rubber Endless Timing Belt was produced by high quality neoprene and glass fiber cord material, and vulcanize process technology, truly seamless belt, rubber timing belt widely applied to security, glass ceramic, wood, metal plastic, printing, packaging, textile, food, tobacco, instrumentation, communication cable, electrical appliance, car, sports and other industries of mechanical transmission. Welcome to contact us for more information!
Rubber endless timing belt features:
High efficient transmission, low noise, withstand oil and strain, without elasticity, no extension, appropriate teeth, working temperature range from -30 to 80.
Specification and size are unfinished, wide range of molds and complete models for your choose. Welcome to contact us for more information, we'll response you ASAP! OEM is offered.
| Arc Tooth Timing Belt-STD2MM |
| Pitch=2mm |
| Specification | Number of tooth | Section line length
(mm) |
| Specification | Number of tooth | Section line length
(mm) |
| S2M-90 | 45 | 90 |
| S2M-320 | 160 | 320 |
| S2M-112 | 56 | 112 | S2M-324 | 162 | 324 |
| S2M-114 | 57 | 114 | S2M-328 | 164 | 328 |
| S2M-116 | 58 | 116 | S2M-334 | 167 | 334 |
| S2M-128 | 64 | 128 | S2M-336 | 168 | 336 |
| S2M-130 | 65 | 130 | S2M-338 | 169 | 338 |
| S2M-132 | 66 | 132 | S2M-340 | 170 | 340 |
| S2M-134 | 67 | 134 | S2M-354 | 177 | 354 |
| S2M-140 | 70 | 140 | S2M-360 | 180 | 360 |
| S2M-142 | 71 | 142 | S2M-370 | 185 | 370 |
| S2M-144 | 72 | 144 | S2M-400 | 200 | 400 |
| S2M-150 | 75 | 150 | S2M-406 | 203 | 406 |
| S2M-152 | 76 | 152 | S2M-420 | 210 | 420 |
| S2M-156 | 78 | 156 | S2M-426 | 213 | 426 |
| S2M-158 | 79 | 158 | S2M-430 | 215 | 430 |
| S2M-160 | 80 | 160 | S2M-436 | 218 | 436 |
| S2M-172 | 86 | 172 | S2M-452 | 226 | 452 |
| S2M-174 | 87 | 174 | S2M-460 | 230 | 460 |
| S2M-176 | 88 | 176 | S2M-468 | 234 | 468 |
| S2M-180 | 90 | 180 | S2M-474 | 237 | 474 |
| S2M-182 | 91 | 182 | S2M-494 | 247 | 494 |
| S2M-186 | 93 | 186 | S2M-500 | 250 | 500 |
| S2M-188 | 94 | 188 | S2M-506 | 253 | 506 |
| S2M-190 | 95 | 190 | S2M-520 | 260 | 520 |
| S2M-192 | 96 | 192 | S2M-530 | 265 | 530 |
| S2M-198 | 99 | 198 | S2M-556 | 278 | 556 |
| S2M-200 | 100 | 200 | S2M-560 | 280 | 560 |
| S2M-204 | 102 | 204 | S2M-572 | 286 | 572 |
| S2M-208 | 104 | 208 | S2M-600 | 300 | 600 |
| S2M-210 | 105 | 210 | S2M-604 | 302 | 604 |
| S2M-212 | 106 | 212 | S2M-630 | 315 | 630 |
| S2M-214 | 107 | 214 | S2M-648 | 324 | 648 |
| S2M-218 | 109 | 218 | S2M-656 | 328 | 656 |
| S2M-224 | 112 | 224 | S2M-660 | 330 | 660 |
| S2M-230 | 115 | 230 | S2M-710 | 355 | 710 |
| S2M-234 | 117 | 234 | S2M-726 | 363 | 726 |
| S2M-236 | 118 | 236 | S2M-760 | 380 | 760 |
| S2M-240 | 120 | 240 | S2M-800 | 400 | 800 |
| S2M-252 | 126 | 252 | S2M-856 | 428 | 856 |
| S2M-260 | 130 | 260 | S2M-860 | 430 | 860 |
| S2M-262 | 131 | 262 | S2M-880 | 440 | 880 |
| S2M-264 | 132 | 264 | S2M-892 | 446 | 892 |
| S2M-266 | 133 | 266 | S2M-940 | 470 | 940 |
| S2M-274 | 137 | 274 | S2M-976 | 488 | 976 |
| S2M-290 | 145 | 290 | S2M-984 | 492 | 984 |
| S2M-300 | 150 | 300 | S2M-1166 | 583 | 1166 |
| S2M-306 | 153 | 306 | S2M-1224 | 612 | 1224 |
| S2M-308 | 154 | 308 | S2M-1250 | 625 | 1250 |
| S2M-314 | 157 | 314 | S2M-3000 | 1500 | 3000 |
| Prod Model: |
2M; 3M; 5M; 8M; 14M; 20M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure (for Chain): |
Rings Chain |
| Usage: |
Transmission Chain, Transportation Chain, Dedica |
| Color: |
Black/Other |
| Inside Material: |
Ployurethane |
| Type: |
Rubber Endless |
Jbosun Industrial Equipment Co., Ltd, was founded in 2007, and located in a coastal cosmopolis---Shenzhen, with its convenient transportation facilities. Jbosun specializes in producing synchronous belts and synchronous pulley, and we have devoted ourselves to the research and development of Chinese transmission products, we spare no effort to promote the progress of the transmission technology, integrated design, research, production, sales and after-sales service. We have become a professional manufacturer in domestic market due to our large-scale production ability, great variety, efficient delivery and excellent quality as well.
As one of the most excellent synchronous belts suppliers of Asia, Jbosun can provide you all sorts of belts, industrial belts, transmission belt, rubber synchronous belts, PU synchronous belts, double-sided synchronous belts, special synchronous belts (blocks, sponge, PU glue, PVC decorative pattern, rubber and all sorts of material can be added on the surface of belt), automotive belt, ribbed V-belts, and matching aluminum synchronous pulley, steel synchronous pulley, copper synchronous pulley series. Also we are able to process according to customer's blueprint.
Our products are widely applied to security, glass ceramic, wood, metal plastic, printing, packaging, textile, food, tobacco, instrumentation, communication cable, and other industries of mechanical transmission.
Our policy is: Practical and self-motivated, strict and united, synchronous and together lead to brilliant future. Your satisfaction is Jbosun's pursuit, we sincerely hope that friends from all walks of life cooperate and negotiate business with us, we will present you our best service.
Company motto: People oriented, Quality first, Customer foremost, and win-win situation created.
