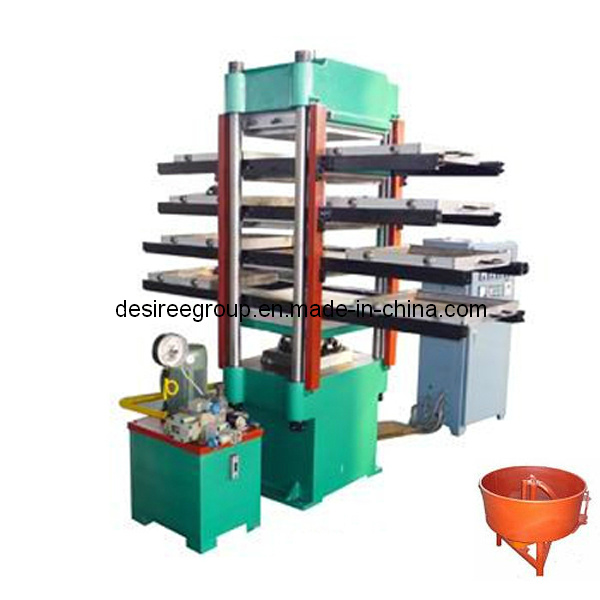

Rubber Floor Tile Making Machine
Function:
Used for curing the rubber tiles and rubber mats, it is good for using the recycling rubber.
Features:
1. Column type, mainly consists of hydraulic cylinder, piston, column, hot plate, track, mould, top link, hydraulic station, electric cabinet.
2, Equipped with manual push-out device and two sets of mould, so the production efficiency is high.
3, The thickness of mould is optional, from 20mm to 75mm.
4. As the request, can equip with mixer.
WE CAN DESIGN AND MANUFACTURE NON-STANDARD MODELS AS PER THE REQUIREMENT OF CUSTOMERS.
Our Services:
1. One year warranty.
2. Technical support by email or call all the time.
Any demand, please feel free to contact with me.
Welcome to make a field inspection of our factory.
Model No. |
XLB-D550x550x4 |
Total pressure (MN) |
0.5 |
Plate size (mm) (L x W x T) |
550x550x45 |
Daylight (mm) |
150 |
Daylight no. |
4 |
Piston stroke (mm) |
400 |
Motor power (kW) |
3 |
Overall size (mm) |
2200x900x2200 |
Weight (kg) |
3600 |
