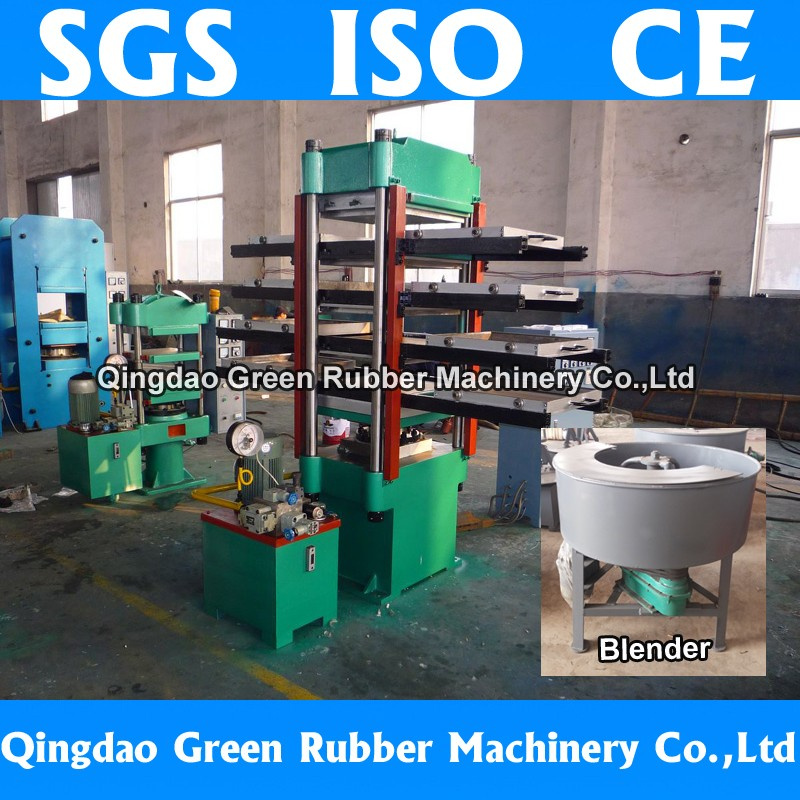

Rubber Floor Tile Plate Vulcanizing Machine
Also named
Rubber molding press; Hydraulic Molding Machine; Hydraulic press; Plate press, compression press; Plate vulcanizing machine, vulcanizer.
This machine is a special vulcanizing machine, rubber floor tile production each layer configuration two sets of mould, sulfide in turn,
Can effectively improve production efficiency. Manual push-pull mode device at the same time, the operation more convenient.
Company can manufacture according to the requirements of various non-standard types of rubber floor tile molding equipment.
We can also product many kinds of vulcanizing machine.
Model |
XLB-D550x550x4 |
Total pressure (MN) |
0.5 |
Plate size (mm) |
550x550x45(Q235) |
Daylight (mm) |
150 |
Daylight no. |
4 |
Piston stroke (mm) |
400 |
Motor power (kw) |
3.0 |
Overall size (mm) |
2200x900x2200 |
Weight (kg) |
3600 |
