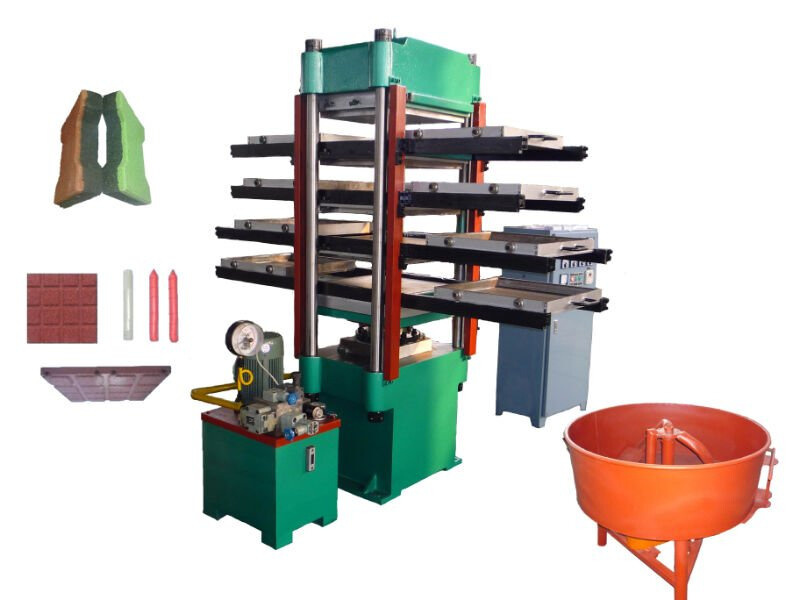

Rubber Floor Tile Vulcanizing Machine / Rubber Tile Making Machine
Description:
1. This kind of vulcanizing machine is multi-functional beacuse it is suitable to be used for top opening double or triple mold plates.
2. High force employs dual pressure, and each oil system is designed seperately which
Makes it stable, quiet and low frequency of malfunction when working. Two sides can be operated simultaneously.
3. The electric system adopt PLC programming control, which is easy to be operated.
4. Automatic in/out mold and ejector device, low labor strength.
5. Optional normal valve or proportional valve, advanced oil way matching, reduce energy consumption.
|
Type |
XLB-DQ400*400*2 |
XLB-DQ660*600*2 |
XLB-DQ750*750*2 |
XLB-DQ1200*1200*2 |
|
Total pressure(MN) |
0.50 |
1.00 |
3.00 |
3.15 |
|
Plate size(mm) |
400x400 |
600x600 |
750x750 |
1200x1200 |
|
Working layer nuber |
2 |
2 |
2(4) |
2(4) |
|
Piston stroke(mm) |
250 |
250 |
250(500) |
250(500) |
|
Plate pressure(Mpa) |
3.1 |
2.8 |
5.3 |
2.2 |
|
Motor power(kw) |
2.2 |
3 |
5.5 |
5.5 |
|
|
|
|
|
|
|
Weight (kg) |
1300 |
3500 |
8000 |
9500 |
|
Type |
XLB-DQ1200×1200×2 |
XLB-DQ1300×2000×1 |
XLB-Q1200×2500×1 |
XLB-Q1500×2000×1 |
|
Total pressure(MN) |
315t |
560t |
750t |
1000t |
|
Plate size(mm) |
1200×1200 |
1300×2000 |
1200×2500 |
1500×2500 |
|
Daylight(mm) |
200 |
400 |
400 |
400 |
|
Layer |
2 |
1 |
1 |
1 |
|
Piston stroke(mm) |
400 |
400 |
400 |
400 |
|
Plate unit area pressure (kg/ cm 2 ) |
22 |
21.5 |
25 |
33.5 |
|
Main motor power(KW) |
3 |
8 |
9.5 |
11 |
|
Overall dimension (L×W×H)(mm) |
1685×1320×2450 |
2000×1860×2500 |
2560×1700×2780 |
2810×1550×3325 |
|
Weight (kg) |
9500 |
17000 |
20000 |
24000 |
