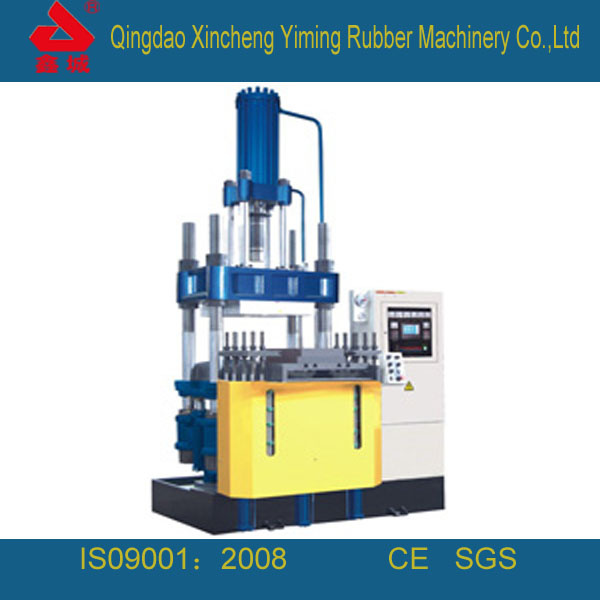

Rubber Injection Molding Press is an advanced rubber pressure moulding equipment with compact structure, wide applicability and high degree of automation, especially, it is suitable for producing rubber model products with metallic insert, complex shape, big cross-section and thick-wall, these products' process is complex and more difficult to form.
Clamping cylinder clamps mould first, then injection cylinder press rubber material into mould cavity uniformly. Therefore the rubber parts have precision dimension, uniform and stable performances.
It uses the high pressure pump, and middle and high pressure vane pump combination, controlled by proportional pressure &flow composite valve, hydraulic system configuration is advanced, reasonable and reliable with low noise and low energy consumption.
The main moving platen raises rapidly, clamps slowly, declines rapidly, so the efficiency is improved and the mould is protected. It uses automatic in-out mould and ejector mechanism, reduces labor intensity and avoids the artificial damage to mould.
The electric system adopts full computer control, it is convenient for operation, it has teo working modes of point moving and semi-automation.
|
Type |
350*350*2 |
400*400*2 |
500*500*2 |
600*600*2 |
750*850*2 |
|
Nominal clamp mould force (MN) |
0.25 |
0.5 |
0.8 |
1.0 |
1.6 |
|
Piston size |
350*350 |
400*400 |
500*500 |
600*600 |
750*850 |
|
Number of working layer |
2 |
2 |
2 |
2 |
2 |
|
Piston diameter(mm) |
150 |
200 |
250 |
300 |
360 |
|
Stroke of piston (mm) |
250 |
250 |
250 |
250 |
500 |
|
Distance between hot plate(mm) |
125 |
125 |
125 |
150 |
250 |
|
Unit area pressure of hot plate(Mpa) |
2.1 |
3.1 |
3.2 |
2.78 |
2.5 |
|
Power(KW) |
2.2 |
2.2 |
2.2 |
2.2 |
3.0 |
|
Overall size(L*W*H)(mm) |
1500*400*
1350 |
1800*500*
1700 |
1800*550*
1600 |
2000*700*
1700 |
2000*1000*
1900 |
|
Weight(kg) |
1000 |
1500 |
2000 |
2600 |
4300 |
|
Close mould speed(mm/s) |
≥12 |
≥12 |
≥12 |
≥12 |
≥12 |
|
Open mould speed(mm/s) |
≥12 |
≥12 |
≥12 |
≥12 |
≥12 |
Qingdao Xincheng Yiming Rubber Machinery Co., Ltd is located in the west coast of Qingdao-Jiaonan City, west of the state road 204, next to the Qingdao Economic and Technological Development Zone, nearby Qingdao Port and Qingdao Liuting International Airport, with excellent geographical location and developmental traffic.
We are a professional manufacturer of various rubber machineries and its auxiliary equipments. We can design and manufacture all kinds of non-standard rubber machineries according to the requirement of the customers. We have cooperations with several agencies major in designing and producing rubber & plastic products, on the R & D of rubber-plastic field, technology assessment, technical training, technological achievements. We contract a full set of equipments on making all kinds of large engineering rubber-plastic, tyres and other rubber-plastic products. We provide commissioning process and installation, until customers produce satisfied products and achieve maximum economic benefits.
Our company passed ISO9001: 2008 International Quality Management System Certification. The company gathered a number of outstanding technical staffs, management persons, have a young marketing team which has international perspective and local experiences, offering the professional international marketing services. We have high level, high efficiency, high-speed marketing network, quickly seizing the international market.
Our company has excellent machine-processing equipments, advanced technology, unique test method, full of quality products and good sale-service system, we are well received by consumers, leaves a good corporate image in the peer.
"Excellent, customers first, scientific management, continuous improvement "is our quality policy, Qingdao Xincheng Yiming Rubber & Machinery Co., Ltd will serve you the best.
