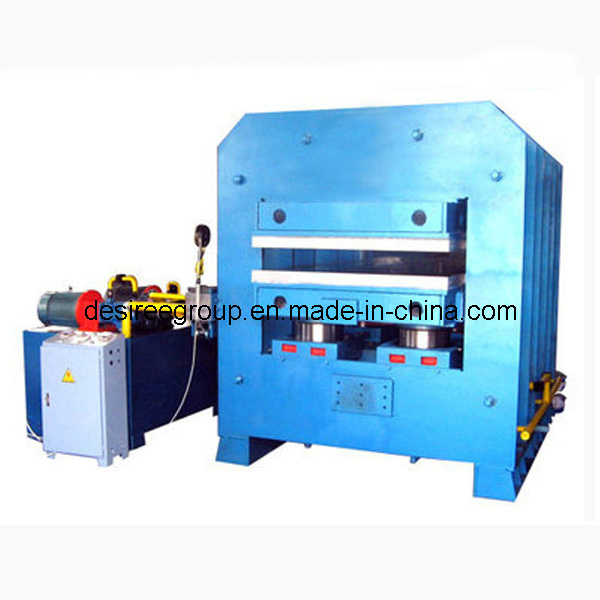

Heat Press Machine
Function:
1. Used for pressing all kinds of rubber model products, rubber plate, thermostting plastic. Such as doormat, o-ring, seal, rubber sheet and so on.
2. Used as common hydraulic machine.
Features:
1. Mainly consists of main machine, hydraulic system and electrical system.
2. Frame type, with bottom hydraulic cylinder.
3. Adopts hydraulic drive, electric relay control, the curing time and pressure can be adjusted.
4. The oil tank was arranged at the left side, avoid of the influence of hot platen temperature.
5. Can provide hand control and electric control as customer's request.
6. The hot platen clearance can be designed as per the size of product & mould.
Advantages:
1. Compact structure, less occupied area.
2. High working pressure
3. High producing efficiency
4. Easy to install. Operation is safe and reliable.
WE CAN DESIGN AND MANUFACTURE NON-STANDARD MODELS AS PER THE REQUIREMENT OF CUSTOMERS.
Our Services:
1. One year warranty and lifetime technical support.
2. Engineers available to service machinery overseas.
3. Any demand, we will give feedback within 24hours.
Company Information
About us:
Qingdao Desiree Group Rubber Machinery Co., Ltd is one of the major companies of Qingdao Desiree Group, which devotes itself to designing and manufacturing of high quality rubber machinery.
The Group is composed of 5 subsidiaries which are Qingdao Desiree Group Surface Treatment Equipment Co., Ltd, Qingdao Desiree Group Rubber Machinery Co., Ltd, Qingdao Desiree Group Automobile Inspection Device Co., Ltd, Qingdao Desiree Group High-rise Parking Equipment Co., Ltd and Qingdao Desiree Group Real Estate Co., Ltd. After decades of development, Qingdao Desiree Group now is Qingdao TOP 15 large-scale private enterprise.
Group has continuously increased the input in basic equipment. Till now, our company has built modern processing workshop, metal working workshop, electric workshop and assembly workshop, and introduced a number of large modern and high-precision machining equipments to guarantee our products quality.
Quality is our life. Striving for China famous brand is our job target.
Welcome to make a field inspection of our factory.
Any demand, please feel free to contact with me.
We ara always pleased to serve you at any time.
|
Heat Press Machine Model No. |
XLB-Q
1200 ×2700×1 |
XLB-Q
1300 ×3000×1 |
XLB-Q
1400 ×2500×1 |
XLB-Q
2000 ×2500×1 |
|
Nominal mounding power (MN) |
850 |
1170 |
1200 |
1800 |
|
Piston stoke (mm) |
250 |
250 |
500 |
250 |
|
Pressure of plate's unit area (MPa) |
2.6 |
3 |
2.4 |
2.88 |
|
Working layer number |
1 |
1 |
1 |
1 |
|
Main motor power (kW) |
5.5 |
7.5 |
19 |
22 |
|
plate clearance (mm) |
250 |
250 |
500 |
250 |
|
Overall size (L×W×H)(mm) |
2700×1860×2600 |
3000×2100×3360 |
2500 ×3100×3600 |
3520 ×2900×3550 |
|
Weight (kg) |
20000 |
26000 |
22000 |
55000 |
|
Plate specification (mm) |
1200×2700 |
1300×3000 |
1400×2500 |
2000×2500 |
