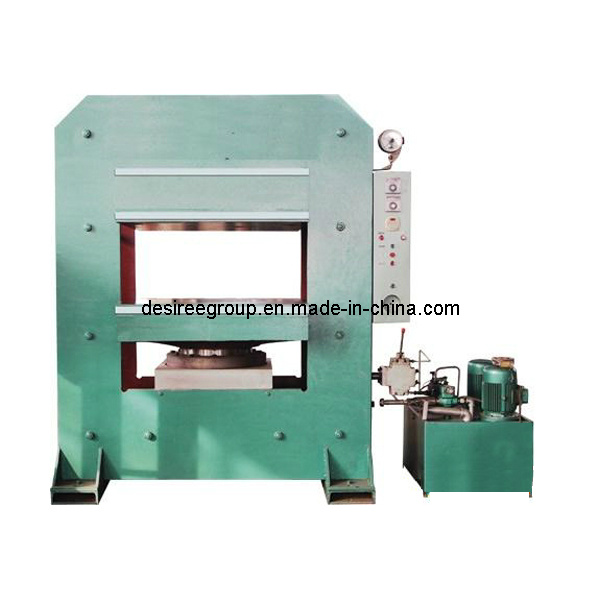

Rubber Sheet Making MachineFunction:
1. Used for pressing all kinds of rubber model products, rubber plate, thermostting plastic. Such as doormat, o-ring, seal, rubber sheet and so on.
2. Used as common hydraulic machine.
Features:
1. Mainly consists of main machine, hydraulic system and electrical system.
2. Frame type, with bottom hydraulic cylinder.
3. Adopts hydraulic drive, electric relay control, the curing time and pressure can be adjusted.
4. The oil tank was arranged at the right side, avoid of the influence of hot platen temperature.
5. Can provide hand control and electric control as customer's request.
6. There are two kinds of heating method for hot platen, steam heating and electric heating.
7. The hot platen clearance can be designed as per the size of product & mould.
Advantages:
1. Compact structure, less occupied area.
2. High working pressure
3. High producing efficiency
4. Easy to install. Operation is safe and reliable.
WE CAN DESIGN AND MANUFACTURE NON-STANDARD MODELS AS PER THE REQUIREMENT OF CUSTOMERS.
Our Services:
1. One year warranty.
2. Lifetime technical support.
3. Any demand, we will give feedback within 24hours.

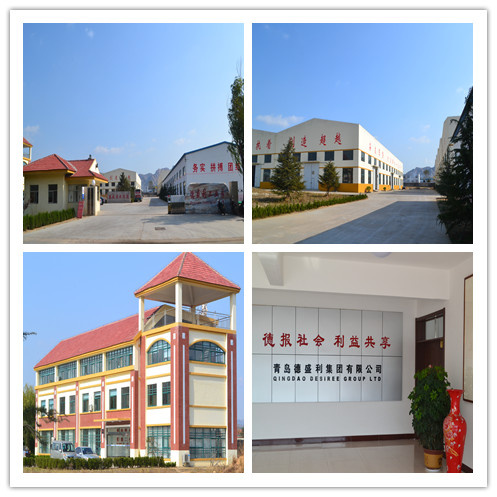

Company Show:

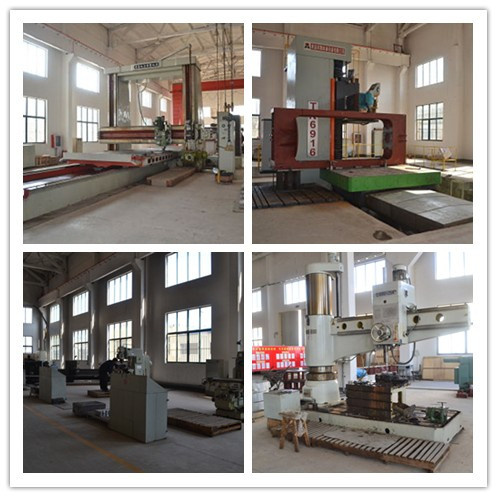

Workshop Show:
Certificate Show:
Any demand, please feel free to contact with me.
Welcome to make a field inspection of our factory.
Making Machine Model No. |
XLB-Q/D1200x1200x1 |
XLB-Q/D1000x1000x1 |
XLB-Q/D850x750x1 |
Total pressure(kN) |
3150 |
2500 |
1600 |
Max. working pressure of working oil(MPa) |
16 |
16 |
16 |
Max. stroke of piston(mm) |
300 |
400 |
250 |
Piston diameter(mm) |
500 |
450 |
360 |
Hot platen size(mm) |
1200x1200 |
1000x1000 |
850x750 |
Layer quantity |
1 |
1 |
1 |
Hot platen clearance (mm) |
560 |
400 |
125 |
Heating temperature(°C) |
140 to 160 |
140 to 160 |
140 to 160 |
Motor power(kW) |
7.5 |
5.5 |
3 |
Steam pressure(MPa) |
0.6 to 0.8 |
0.6 to 0.8 |
0.6 to 0.8 |
Electrical heating power of each hot platen(kW) |
24.1 |
10.8 |
9 |
Total weight(kg) |
8000 |
6000 |
4100 |
