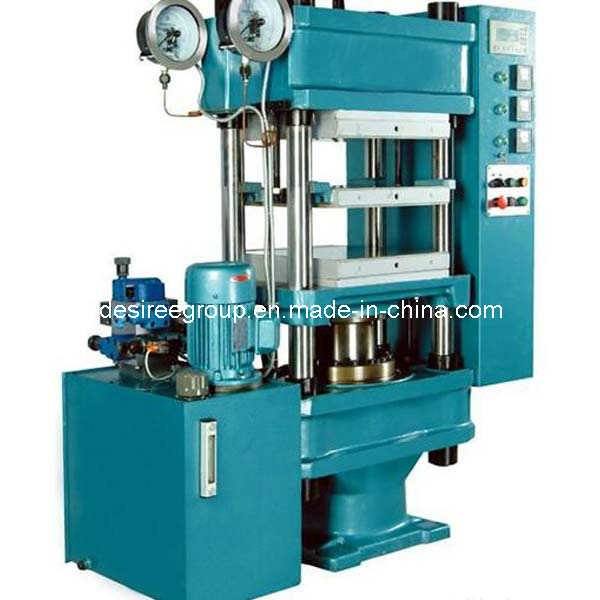

Rubber Slipper Making Machine

Rubber Slipper Making Machine
Price: US $ 2620-35000/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Rubber Slipper Making Machine

Function:
1. Used for pressing all kinds of rubber model products, rubber plate, thermostting plastic, such as sole, o-ring etc...

2. Used as common hydraulic machine.


Features:
1. Mainly consists of main machine, hydraulic system and electrical system.

2. Column type, with bottom hydraulic cylinder.

3. Adopts hydraulic drive, electric relay control, the curing time and pressure can be adjusted.

4. The oil tank was arranged at the left side, avoid of the influence of hot platen temperature.

5. Can provide hand control and electric control as customer's request.

6. There are two kinds of heating method for hot platen, steam heating and electric heating.

7. The hot platen clearance can be designed as per the size of product & mould.


Advantage:
1. Compact structure, less occupied area.

2. High working pressure

3. High producing efficiency

4. Easy to install. Operation is safe and reliable.

WE CAN DESIGN AND MANUFACTURE NON-STANDARD MODELS AS PER THE REQUIREMENT OF CUSTOMERS.

Our Services:
1. One year warranty.

2. Technical support by email or call all the time.


Any demand, please feel free to contact with me.

Welcome to make a field inspection of our factory.
Model No. XLB-350*350*2 XLB-400*400*2 XLB-500*500*2 XLB-600*600*2/4 XLB-750*850*2 XLB-1000*1000*2
Mould closing force(MN) 0.25 0.5 0.8 1 1.6 2.5
Hot plate spacing(mm) 125 125 125 125 125 200
Hot plate layer 2 2 2 2/4 2 2
Plunger stroke(mm) 250 250 250 250/500 250 400
Heating method Electric/steam Electric/steam Electric/steam Electric/steam Electric/steam Electric/steam
Main motor power(kW) 2.2 2.2 2.2 2.2 3 5.5
The thermal power(kW/plate) 2.4 3 3 7.5 9 10.8
Size(L*W*H)(mm) 1450*400*1350 1600*400*1440 1450*690*1818 1880*780*1660 2100*1010*1900 2400*960*2500
Weight(kg) 1200 1500 1700 2500/3100 3560/4300 8300
Platen unit area pressure(MPa)  2.04 3.13 2.52 2.78 2.51 2.5

Prod Model: XLB-500*500*2
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name: Rubber Slipper Making Machine
Mould Closing Force(Mn): 0.8
Hot Plate Spacing(Mm): 125
Hot Plate Layer: 2
Plunger Stroke(Mm): 250
Heating Method: Electric/Steam
Platen Unit Area Pressure(Mpa): 2.52
Type: General Rubber Machinery
Type Of General Rubber Machinery: Material Processing Machine
Type Of Tire Machinery: Rubber Regeneration Machinery
Certification: CE, ISO
About us:
Qingdao Desiree Group Rubber Machinery Co., Ltd is one of the major companies of Qingdao Desiree Group, which devotes itself to designing and manufacturing of Tire curing press, Tire building machine, Dynamic balancing machine, Platen press line, Rubber mixing machine and batch off.
The Group is composed of 5 subsidiaries which are Qingdao Desiree Group Surface Treatment Equipment Co., Ltd, Qingdao Desiree Group Rubber Machinery Co., Ltd, Qingdao Desiree Group Automobile Inspection Device Co., Ltd, Qingdao Desiree Group High-rise Parking Equipment Co., Ltd and Qingdao Desiree Group Real Estate Co., Ltd. After decades of development, Qingdao Desiree Group now is Qingdao TOP 15 large-scale private enterprise.
Qingdao Desiree Group Rubber Machinery Co., Ltd established a powerful technical center in the very beginning, and has multi cooperations with more than 10 scientific research institutes and universities. By absorbing the advanced rubber machinery technology and the company's innovation, our products are now rated as the advanced level both at home and aboard.
We have a team of skilled and experienced senior engineers and technicians. We have developed several proprietary technologies which fill up the vacancy of our country. Our products achieve world class quality standards.
Group has continuously increased the input in basic equipment. Till now, our company has built modern processing workshop, metal working workshop, electric workshop and assembly workshop, and introduced a number of large modern and high-precision machining equipments to guarantee our products quality.
Carrying on the past and opening a way for future, with high quality and considerate services, our company will continuously provide our best products and service under the leadership of chairman Mr. Yang tongde. Building up into a world-class rubber machinery enterprise is our ultimate goal.
