Rubber Tile Making Machine

XLB 550x550x4 Rubber Tile Machine / Rubber Tile Making Machine
Name
Rubber Tile making machine / Rubber Tile machine / Rubber tile Vulcanizing press machine
Usage
Lab use, rubber & plastic vulcanizing, rubber tiles making, rubber gasket making, conveyor belt and so on.
Structure features:
1. Two kinds of heating method: Steam and electric
2. Three major components: The host, the hydraulic system and electric control system
3. Hot plate temperature uniformity and automatic control
4. High-precision temperature control makes good-quality products
5. Pressure doen't drop, no leakage, low noise, high precision and flexible operation

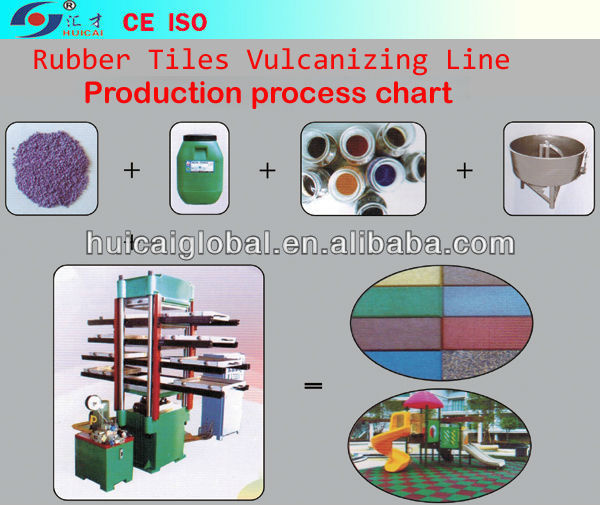

Making flow

1. Conching

Put the rubber granulates and stain into the stirring barrel to stir, and then put into the adhesive to stir. This process requires for 4-6 minutes ( because the adhesive is easy to cure, so stir it when use ).

2. Weighing raw materials

Weight the rubber granulates stirred, according to the granulates' thickness requirement of the tiles.


3. Paving and pressing

Paving the rubber granulates weighted on the mold, then floated it by trowel. Firstly paving the surface rubber granulates which is fine and color, then the thickness and black.

4. Vulcanization molding

Covering anti adhesion cloth, pushing the mold into vulcanizer to vulcanize, the time of vulcanization accord to the thickness of the rubber tiles, in general, 3-8inutes finished. After that, Mold separate automatic, then remove floor tile on the shelves to dry.


5. Inspecting

Inspect the surface of the floor tiles formity, no aberration, no flaw, line with the product quality.
Rubber machine.
Good quality with reasonable price. Easy operation with convenient maintenance. Low labor intensity and low energy consumption.

Rubber sheet-rubber mat-rubber tile vulcanizing press to make good quality rubber sheet, rubber tile and rubber mat.

Operate stable, can produce rubber sheet, rubber tile and rubber mat efficiently.

From 20T to 10000T plate vulcaizer machine

Rubber Floor Tiles Making Line, Rubber Floor Tiles Press, Rubber Mat Hydraulic Press, Rubber Sheet devulcanizer

The vulcanizer to make rubber sheet, rubber tile and rubber mat have following features:

1. This vulcanizing rubber machine is used for all kinds of rubber sheet, rubber mat and rubber tile.

2. Being a column structure and downward pressing type, the heating plate opens by the self-weight of the heating plate, platform and plunger. The rising of the plunger makes the heating plate close while the hydraulic oil provides the pressure. So the rubber tile vulcanizer machine can operate stable and safely.

3 The engine base of the rubber mat vulcanizer is combined together with the cylinder and base frame, which is made of ductile iron to increase the cylinder intensity and anti-abrasion. The cylinder is fitted with the sealing washer made of the oil-resisting rubber for the sealing purpose.

4. By moving the operational handle of the control valve to the two different positions, the heating plate can open and close.

5. It uses the electrical heated tube for heating, thus makes the workshop clean with easy and reliable operation.

6. Each layer is matched with two sets of moulds, so it can be vulcanized batch by batch for better efficiency.
