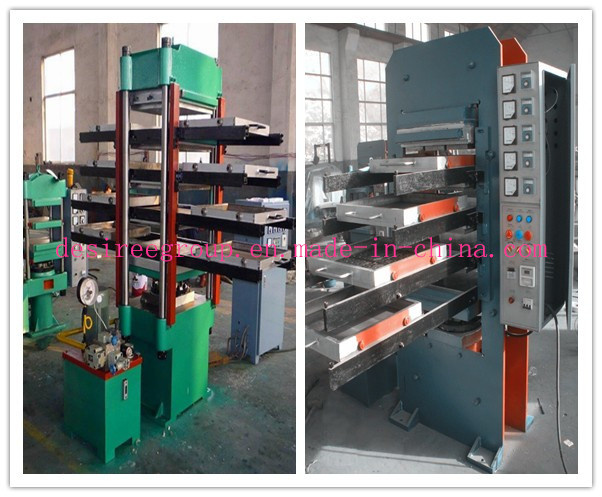

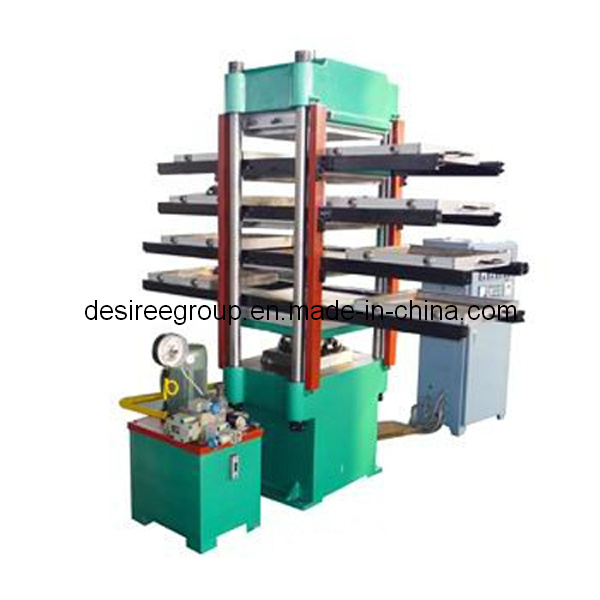

Rubber Tile Vulcanizing Machine
Function:
Used for curing the rubber tiles and rubber mats, it is good for using the recycling rubber.
Features:
1. Column type, mainly consists of hydraulic cylinder, piston, column, hot plate, track, mould, top link, hydraulic station, electric cabinet.
2, Equipped with manual push-out device and two sets of mould, so the production efficiency is high.
3, The thickness of mould is optional, from 20mm to 75mm.
4. As the request, can equip with mixer.
WE CAN DESIGN AND MANUFACTURE NON-STANDARD MODELS AS PER THE REQUIREMENT OF CUSTOMERS.
Our Services:
1. One year warranty.
2. Lifetime technical support.
3. Engineers available to service machinery overseas.
4. Any demand, we will give feedback within 24hours.
Company Information:
About us:

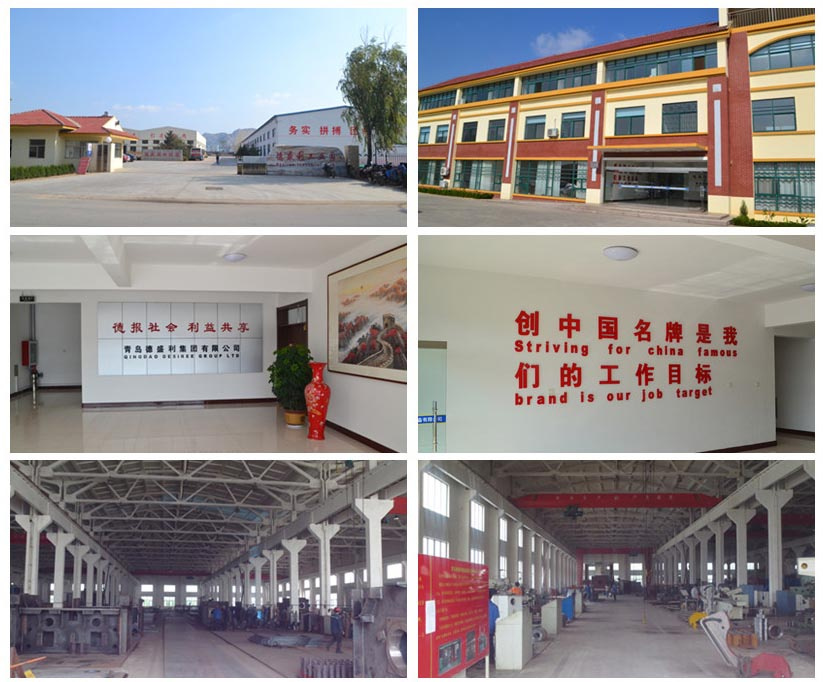

Qingdao Desiree Group Rubber Machinery Co., Ltd is one of the major companies of Qingdao Desiree Group, which devotes itself to designing and manufacturing of high quality rubber machinery.
The Group is composed of 5 subsidiaries which are Qingdao Desiree Group Surface Treatment Equipment Co., Ltd, Qingdao Desiree Group Rubber Machinery Co., Ltd, Qingdao Desiree Group Automobile Inspection Device Co., Ltd, Qingdao Desiree Group High-rise Parking Equipment Co., Ltd and Qingdao Desiree Group Real Estate Co., Ltd. After decades of development, Qingdao Desiree Group now is Qingdao TOP 15 large-scale private enterprise.
Group has continuously increased the input in basic equipment. Till now, our company has built modern processing workshop, metal working workshop, electric workshop and assembly workshop, and introduced a number of large modern and high-precision machining equipments to guarantee our products quality.
Quality is our life. Striving for China famous brand is our job target.
Certificate Show:
FAQ:
Payment:
1. T/T 30% deposit, balance before shipment.
2. Negotiable.
Contacts:
Telephone & Fax: 86-532-84130227
Mobile Phone: 18560603872
Any demand, please feel free to contact with me.
Welcome to make a field inspection of our factory.
We are always pleased to serve you at any time.
Model No. |
XLB-D550x550x4 |
Total pressure (MN) |
0.5 |
Plate size (mm) (L x W x T) |
550x550x45 |
Daylight (mm) |
150 |
Daylight no. |
4 |
Piston stroke (mm) |
400 |
Motor power (kW) |
3 |
Overall size (mm) |
2200x900x2200 |
Weight (kg) |
3600 |
