Rubber Tiles Making Line/Rubber Gasket Making Machine

Rubber Tiles Making Line/Rubber Gasket Making Machine
Price: US $ 5100-5500set
Trade Terms: FOB,CFR,CIF
Min Order: 1set
Pay Type: L/C,T/T

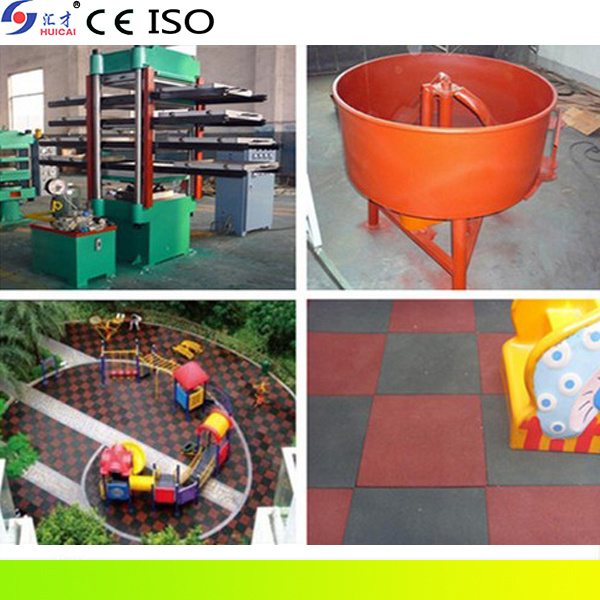

 XLB 550x550x4 Rubber Tile Machine / Rubber Tile Making Machine

Name

Rubber Tile making machine / Rubber Tile machine / Rubber tile Vulcanizing press machine

Usage

lab use ,rubber & plastic vulcanizing , rubber tiles making , rubber gasket making , conveyor belt and so on .

Structure features:

1. two kinds of heating method:steam and electric

2.three major components:the host ,the hydraulic system and electric control system

3.hot plate temperature uniformity and automatic control

4. high-precision temperature control makes good-quality products

5.pressure doen't drop,no leakage,low noise,high precision and flexible operation

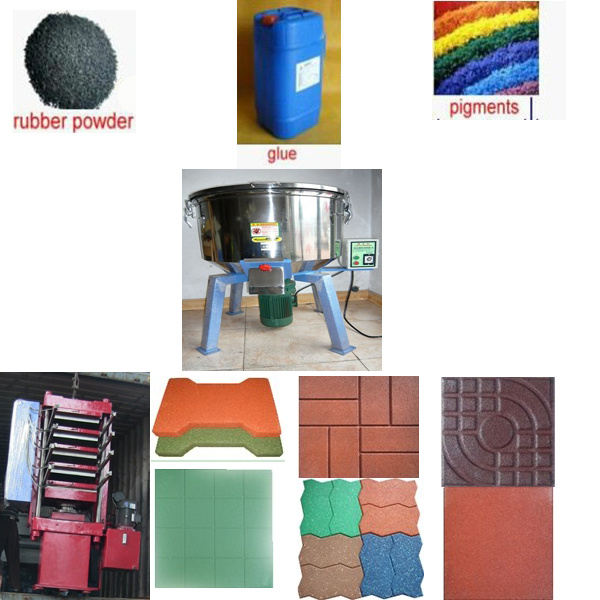

Making flow

1.conching



Put the rubber granulates and stain into the stirring barrel to stir, and then put into the adhesive to stir.this process requires for 4-6 minutes ( because the adhesive is easy to cure, so stir it when use ).



2. Weighing raw materials



weight the rubber granulates stirred, according to the granulates' thickness  requirement of the tiles .





3. Paving and pressing



Paving the rubber granulates weighted on the mold, then floated it by trowel. Firstly paving the surface rubber granulates which is fine and color, then the thickness and black.



4. Vulcanization molding



Covering anti adhesion cloth, pushing the mold into vulcanizer to vulcanize, the time of vulcanization accord to the thickness of the rubber tiles, in general, 3-8inutes finished. After that, Mold separate automatic, then remove floor tile on the shelves to dry.





5Inspecting



Inspect the surface of the floor tiles formity, no aberration, no flaw, line with the product quality.







1.this kind machinery has three types of frame type, pillar type, and jaw type. It is economical, advantage of compact structure, high working pressure, high producing efficiency,. Operation is safe and reliable.



2. This  series of products have high press in unit area , so that we can ensure the quality .



3.Machine can be equipped with model pulling and pushing device to reduce work strength based on product requirements .Hand control ,electrical control and PLC control is optional.



4.The working layer number can be designed as the request.



5. valcanization process can achieve many procedures for automatic control ,can automatically detect and adjust hot plate  rubber machine .



6.This type of machine is control by PLC , valcanization process can achieve many procedures for automatic control ,can automatically detect and adjust hot plate  rubber machine.

Type XLB-D550×550×4XLB-D680*810*3
Total pressure (MN)0.501.00
Plate size (mm)550×550×45(Q235)680*810*60
Plate clearance (mm)150150
Working layer nuber43
Piston stroke (mm)400400
Motor power (kw)3.03.0
Overall dimension (mm)2200×900×2200
Weight  (kg)36004500

Prod Model: XLB 550x550x4
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
(Mn)Nominal Molding Power: 0.5
(Ton)Total Pressure: 50
Working Layer Number: 4
(Mm) Piston Stroke: 500
(Mm)Plate Clearance: 100(or as Client Requirement)
(Mpa)Plate Pressure: 16
(Mm)Platen Size: 550*550
Heating Manner: Electricity Heating
(Kw)Electric Pipe Heating Power: 3.0
(Kw)Main Motor Power: 2.2
Certification: CE, ISO
